Dell MHWR5 Desktop PC
Part Number:
MHWR5
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

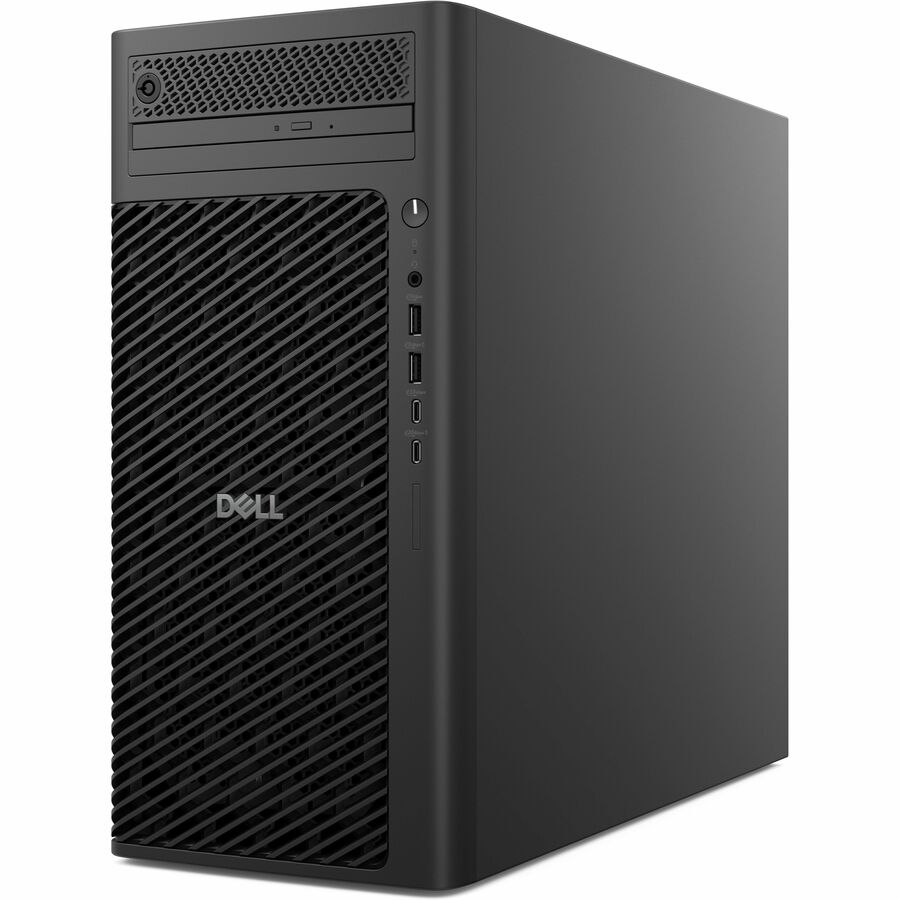

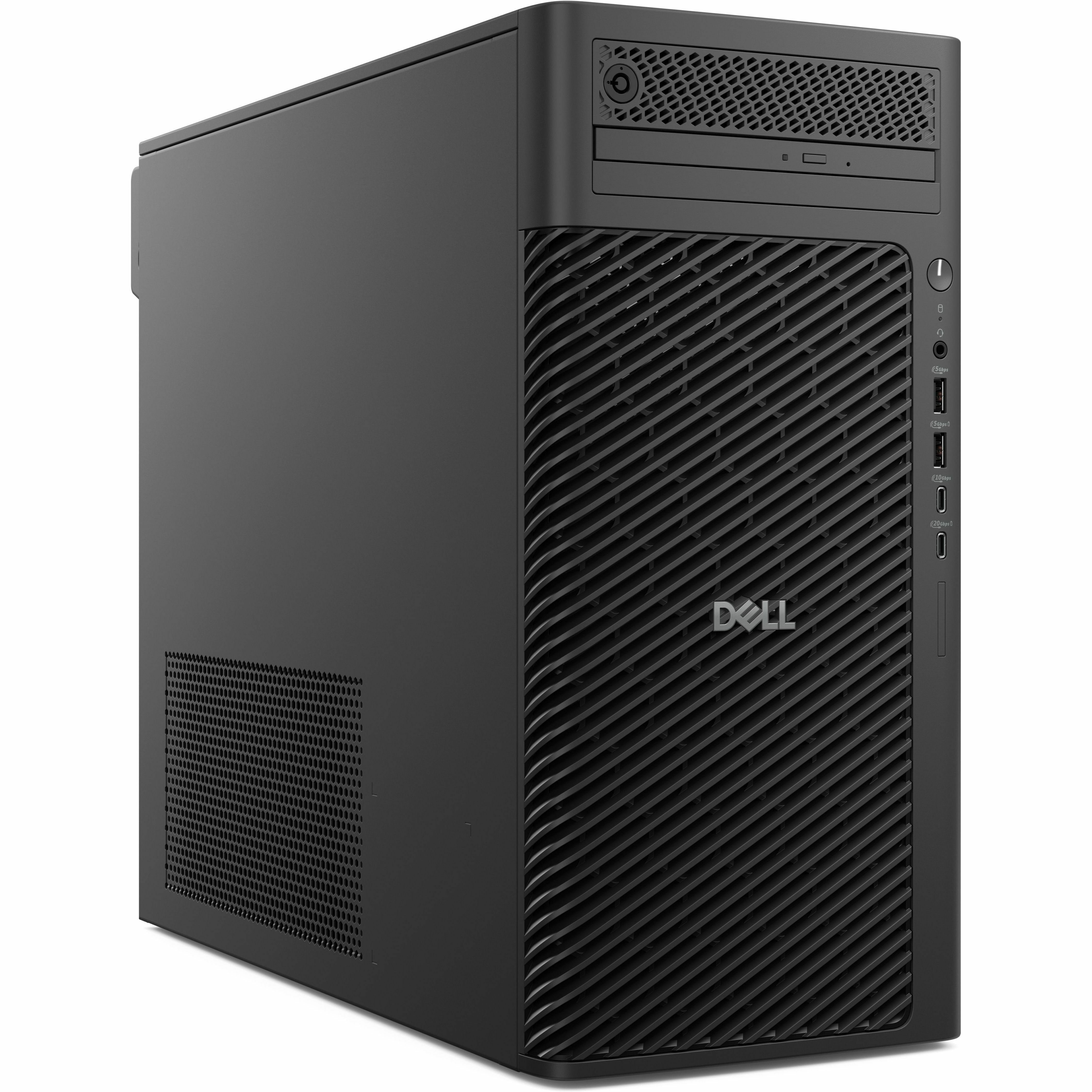

Dell MHWR5 Desktop PC Overview
Dell Pro Max Tower T2 Desktop
Experience unparalleled speed with the Dell's fastest single-threaded performance, now in a scalable 32L design.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 9
Processor Model:
285
Processor Core:
Tetracosa-core (24 Core)
Processor Threads:
24
Processor Speed:
2.50 GHz
Maximum Turbo Speed:
5.60 GHz
vPro Technology:
Yes
NPU Manufacturer:
Intel
NPU Name:
AI Boost
NPU Performance:
13 TOPS
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
2 x 16GB
Number of Occupied Memory Slots:
2
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
1 TB
Solid State Drive Interface:
PCI Express NVMe 4.0 x4
SSD Form Factor:
M.2
Optical Drive Type:
DVD-Writer
Optical Media Supported:
DVD±R/±RW
Display & Graphics
Graphics Controller Manufacturer:
NVIDIA
Graphics Controller Model:
RTX 2000 Ada
Graphics Memory Capacity:
Up to 16 GB
Graphics Memory Technology:
GDDR6
Graphics Memory Accessibility:
Dedicated
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11be
Bluetooth:
Yes

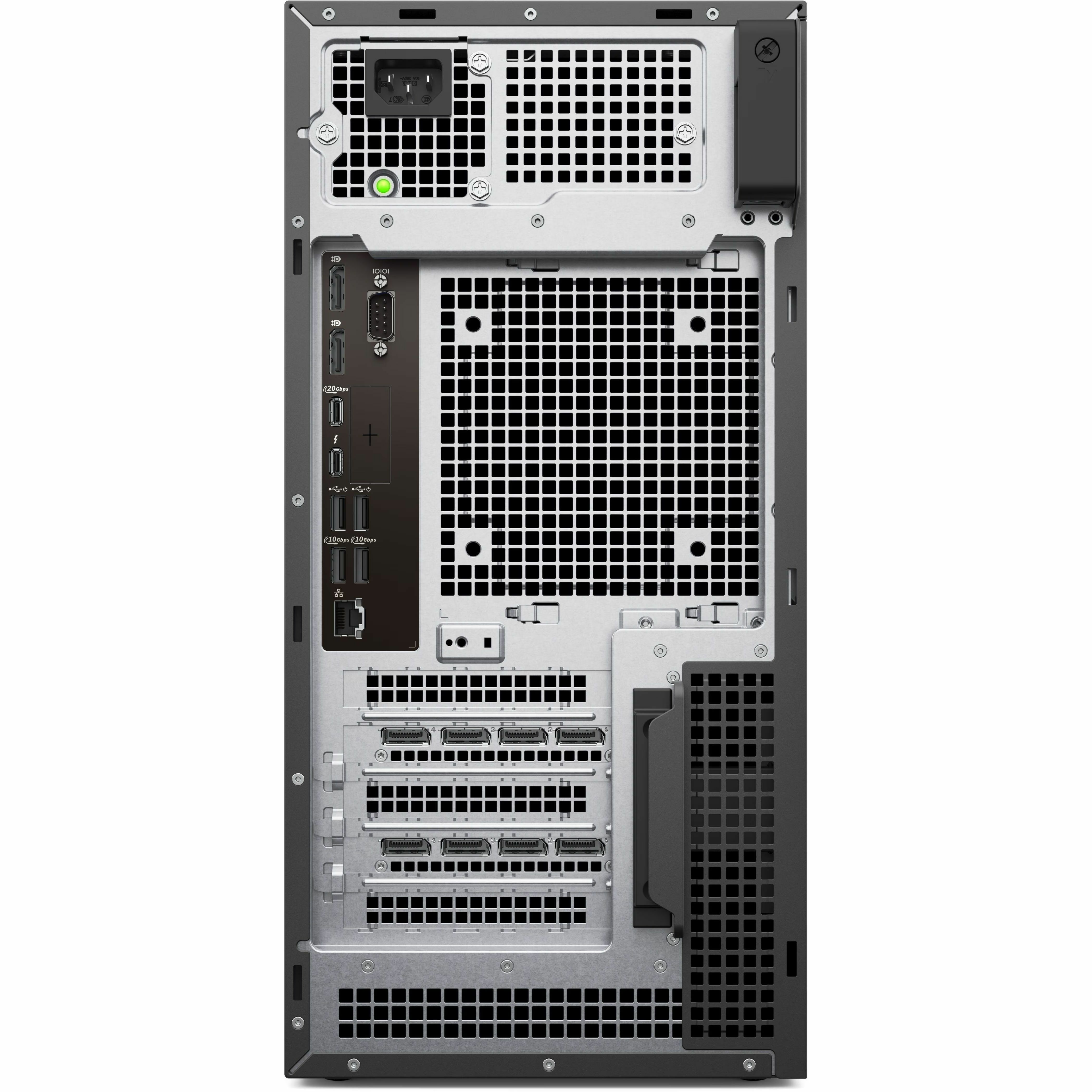

Interfaces/Ports
Total Number of USB Ports:
9
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
2
Number of USB 3.2 Gen 2x2 Type-C Ports:
2
USB Type-C (Front):
Yes
USB Type-C Detail:
1 USB 3.2 Gen 2 (10Gbps) Type-C port
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
2
DisplayPort (Rear):
Yes
Mini DisplayPorts Quantity:
4
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 Optional port (TBT4 (40Gbps) + USB-C (10Gbps) data , DP alt-mode Type-C (10Gbps), HDMI 2.1, DP 2.1, 5Gbe LAN, 2x USB-A 3.2 (10Gbps), VGA, 5GbE Optical)
- 1 SD 7.0 Express-card slot (Optional)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
500 W
Physical Characteristics
Cooler Type:
Air Cooler
Form Factor:
Tower
Height:
15.2"
Width:
7.4"
Depth:
17.2"
Weight (Approximate):
50.71 lb
Miscellaneous
Package Contents:
- Pro Max Tower T2 FCT2250
- 4 x mDP to DP Adapters
- Documentation
- Quick Setup Guide
- System Power Cord
- 3.5" HDD/ODD Y Type Power Cable
Systems Management:
Intel vPro Active Management Tech
Energy Star:
Yes
Country of Origin:
Mexico
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116490906
UPC:
884116490906
EAN:
0884116490906
UNSPSC:
43211507
Frequently Asked Questions
What processor and memory configuration does the Dell MHWR5 come with?
The Dell MHWR5 features an Intel Core Ultra 9 285 processor with vPro Technology and includes 32 GB of memory standard. This configuration delivers enterprise-grade performance for demanding warehouse management and logistics applications, supported by our team at Barcodes Inc for mission-critical operations.
Is the Dell MHWR5 suitable for warehouse and logistics environments?
Yes, the Dell MHWR5 is designed for professional environments including warehouses and logistics operations. It runs Windows 11 Pro with NVIDIA RTX 2000 Ada graphics, making it capable of handling inventory management software, barcode scanning integration, and real-time data processing. Contact us today to discuss deployment options for your facility.
What storage options are available on the Dell MHWR5?
The Dell MHWR5 comes standard with a 1 TB SSD, providing fast data access and reliability for continuous warehouse operations. The SSD-based storage ensures quick boot times and rapid application loading, which is critical for high-throughput scanning and inventory tracking environments.
What connectivity options does the Dell MHWR5 provide?
The Dell MHWR5 includes IEEE 802.11be wireless LAN for modern network connectivity, along with standard wired networking capabilities. This dual connectivity approach ensures reliable data transmission for barcode scanners, mobile computers, and other AIDC devices commonly used in warehouse operations.
Does the Dell MHWR5 include security features for enterprise use?
Yes, the Dell MHWR5 includes Intel vPro Technology with advanced security and management features, making it suitable for enterprise deployments where data protection is critical. These built-in security capabilities help protect sensitive logistics and inventory data in warehouse environments.
What graphics capabilities does the Dell MHWR5 have?
The Dell MHWR5 is equipped with an NVIDIA RTX 2000 Ada with 16 GB GDDR6 memory, providing professional-grade graphics performance. This discrete GPU supports complex visualization tasks, multi-monitor setups, and demanding applications that may be used in logistics command centers or operations hubs. Visit barcodesinc.com to explore how this system integrates with your AIDC infrastructure.
