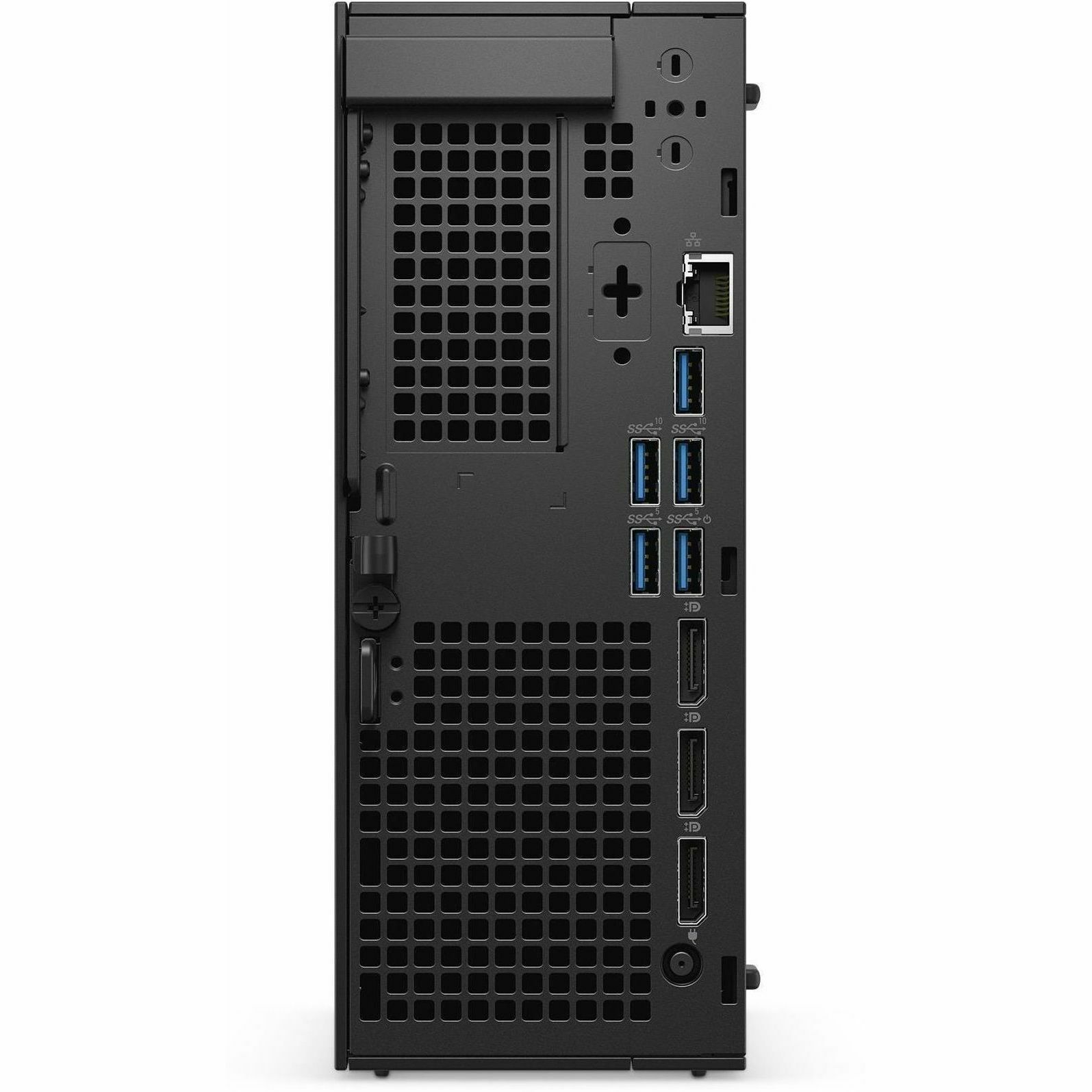

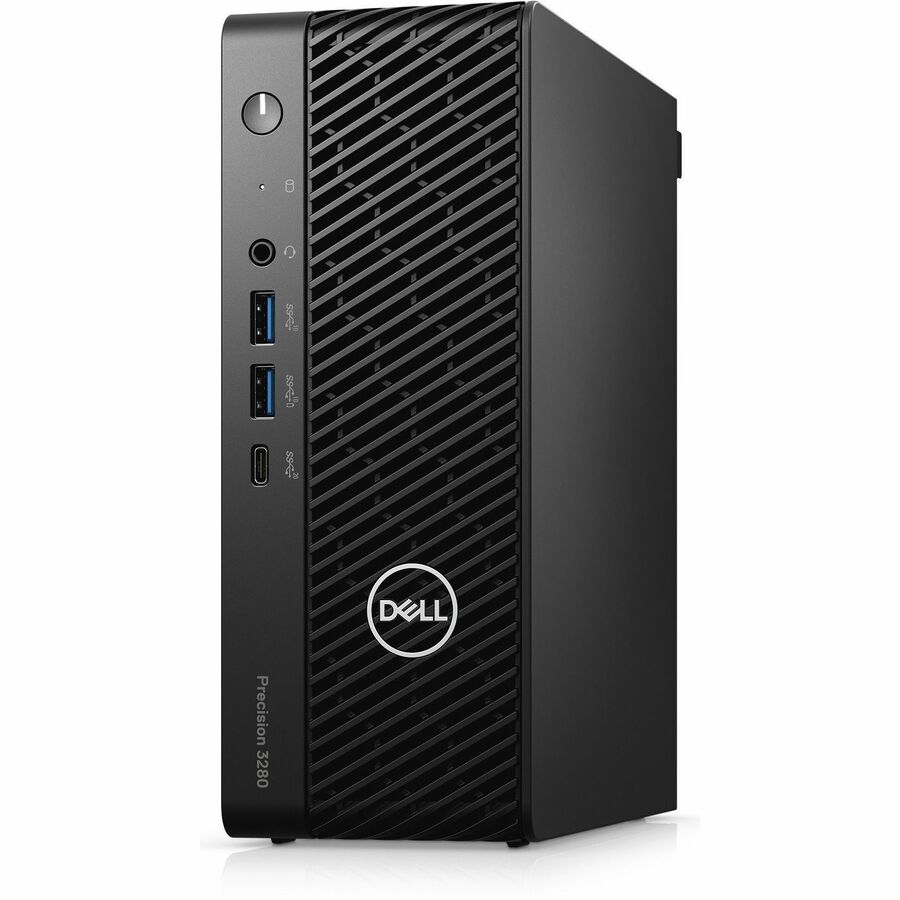

Dell MCDXH Workstation PC
Part Number:
MCDXH
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell MCDXH Workstation PC Overview
Big power, compact size.
Ultra-small form factor that delivers uncompromised performance for tight workspaces and the Edge. The world's smallest workstation that supports Tensor Core GPUs.
Technical Information
Processor
Processor Type:
Core i7
Processor Generation:
14th Gen
Processor Model:
i7-14700
Processor Core:
Icosa-core (20 Core)
Processor Threads:
28
Processor Speed:
2.10 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Total Number of Memory Slots:
2
Error Checking:
Non-ECC
Memory Configuration:
2 x 8GB
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
Controllers
Controller Type:
- NVMe
- Serial ATA
RAID Supported:
No
Display & Graphics
VR Ready:
Yes
Graphics Memory Capacity:
8 GB
Graphics Memory Accessibility:
Dedicated
Network & Communication
Ethernet Technology:
Ethernet
Wireless LAN:
Yes
Bluetooth:
Yes
Interfaces/Ports
Total Number of USB Ports:
8
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
5
USB Type-C:
Yes
USB Type-C Detail:
1 USB 3.2 Type C (20Gbps)
DisplayPort:
Yes
Number of HDMI Outputs:
0
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs:
3
Optional Ports:
1 Optional port
Details regarding optional ports aggregated from the information available for this product's family/series
Input Devices
Keyboard Localization:
English (US)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Brazilian Portuguese/French/Spanish
Power Description
Maximum Power Supply Wattage:
280 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Compact
Height:
8.1"
Width:
3.1"
Depth:
7"
Weight (Approximate):
5.60 lb
Miscellaneous
Package Contents:
- Precision 3280 Compact
- Power Adapter
- Keyboard
- Mouse
- Safety/Environment and Regulatory Guide (English/French Multi-language)
- Quick Setup Guide, Precision 3280
- Power Cord
- 4 mDP to DP Adapter
Energy Star:
Yes
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- TCO Certified 9.0
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Energy Efficiency Certification:
ENERGY STAR 8.0
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116471318
UPC:
884116471318
EAN:
0884116471318
UNSPSC:
56112002
Frequently Asked Questions
What processor does the Dell MCDXH Workstation PC use?
The Dell Precision 3000 3280 Workstation features a 14th Generation Intel Core i7-14700 processor with vPro Technology, delivering enterprise-grade performance and security features. This processor is ideal for demanding workloads in warehouse management systems, logistics software, and data-intensive applications. Contact us today to learn more about this powerful workstation option.
How much memory and storage does this Dell workstation offer?
This Dell MCDXH workstation comes configured with 16 GB of RAM and a 512 GB SSD for fast application loading and data access. The system supports multiple memory configuration options and uses NVMe and Serial ATA controllers for flexible storage expansion. Visit barcodesinc.com to explore additional storage upgrade options available for your specific needs.
What graphics capabilities does the Dell Precision 3280 include?
The workstation features 8 GB of dedicated graphics memory, providing robust visual performance for complex applications and multi-monitor setups common in warehouse and logistics environments. The integrated graphics architecture supports professional-grade rendering and data visualization tasks. Contact us today if you need graphics specifications for specific software applications.
Is this Dell workstation suitable for enterprise environments?
Yes, the Dell MCDXH is designed for enterprise use with Intel vPro Technology for advanced management and security features, Windows 11 Pro operating system, and comprehensive connectivity options including Ethernet and Wireless LAN. The compact form factor makes it ideal for IT procurement in warehouse and logistics operations. We offer this model with enterprise support options—contact us today for deployment details.
What connectivity options are available on this Dell workstation?
The Dell Precision 3280 includes Ethernet (RJ-45) and Wireless LAN connectivity for seamless integration into warehouse networks and AIDC systems. The workstation supports multiple USB ports, HDMI output, and serial connectivity for barcode scanners and legacy equipment common in logistics environments. Visit barcodesinc.com to discuss connectivity requirements for your specific AIDC infrastructure.
What operating system comes with the Dell MCDXH workstation?
This workstation ships with Windows 11 Pro, providing the latest security features, compatibility with enterprise software, and support for professional applications used in warehouse management and logistics. The English (US) keyboard configuration is standard, with additional language options available. Contact us today to discuss OS licensing and deployment options for your organization.
