Release Year:
2023

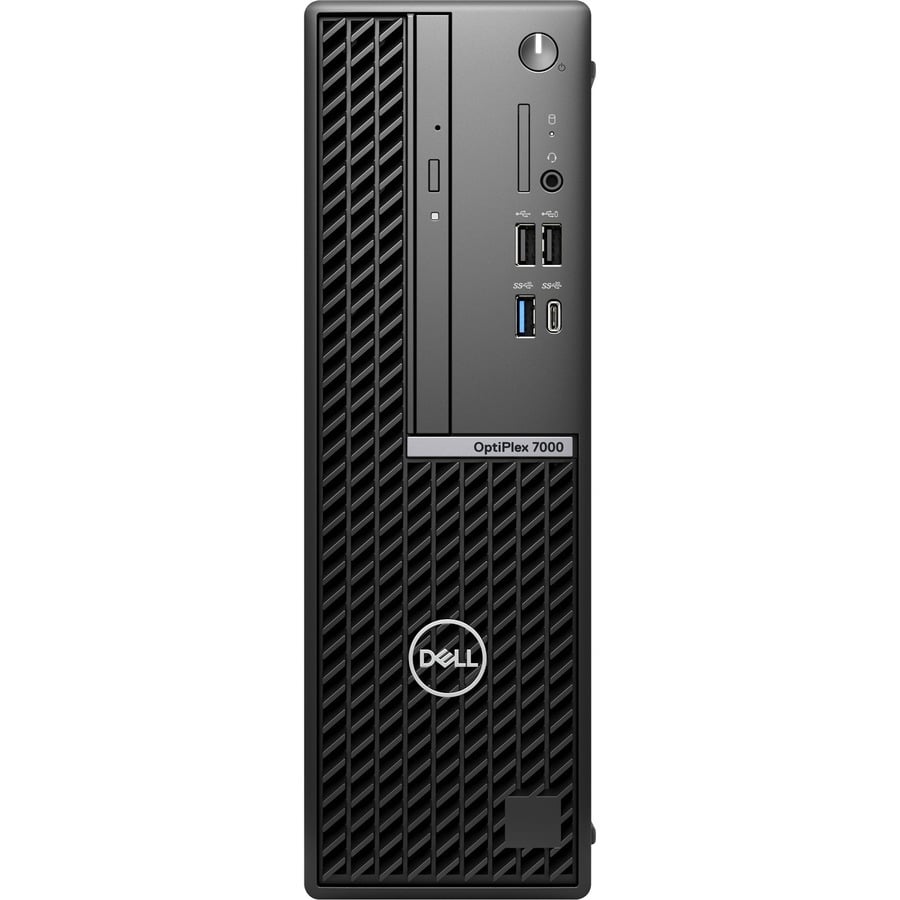

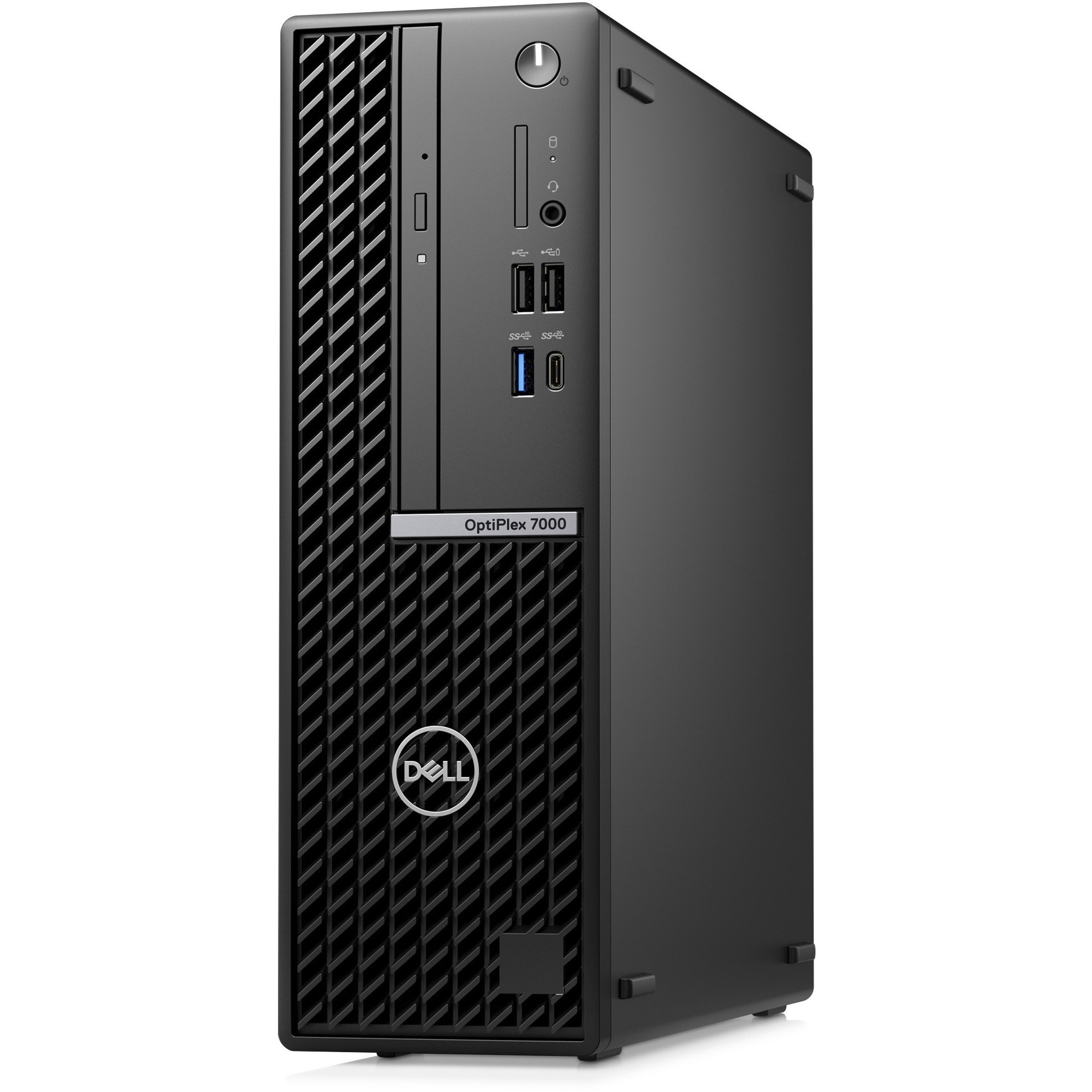

Dell M4FPX Desktop PC
Part Number:
M4FPX
Model:
Parts
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Generation:
13th Gen
Processor Model:
i5-13500
Processor Core:
Tetradeca-core (14 Core)
Processor Speed:
2.50 GHz
Maximum Turbo Speed:
4.80 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
2 x 8GB
Number of Occupied Memory Slots:
2
Storage
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe
SSD Form Factor:
M.2
Optical Drive Type:
DVD-Writer
Optical Media Supported:
DVD±R/±RW
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
UHD Graphics 770
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
No
Input Devices
Keyboard Localization:
English

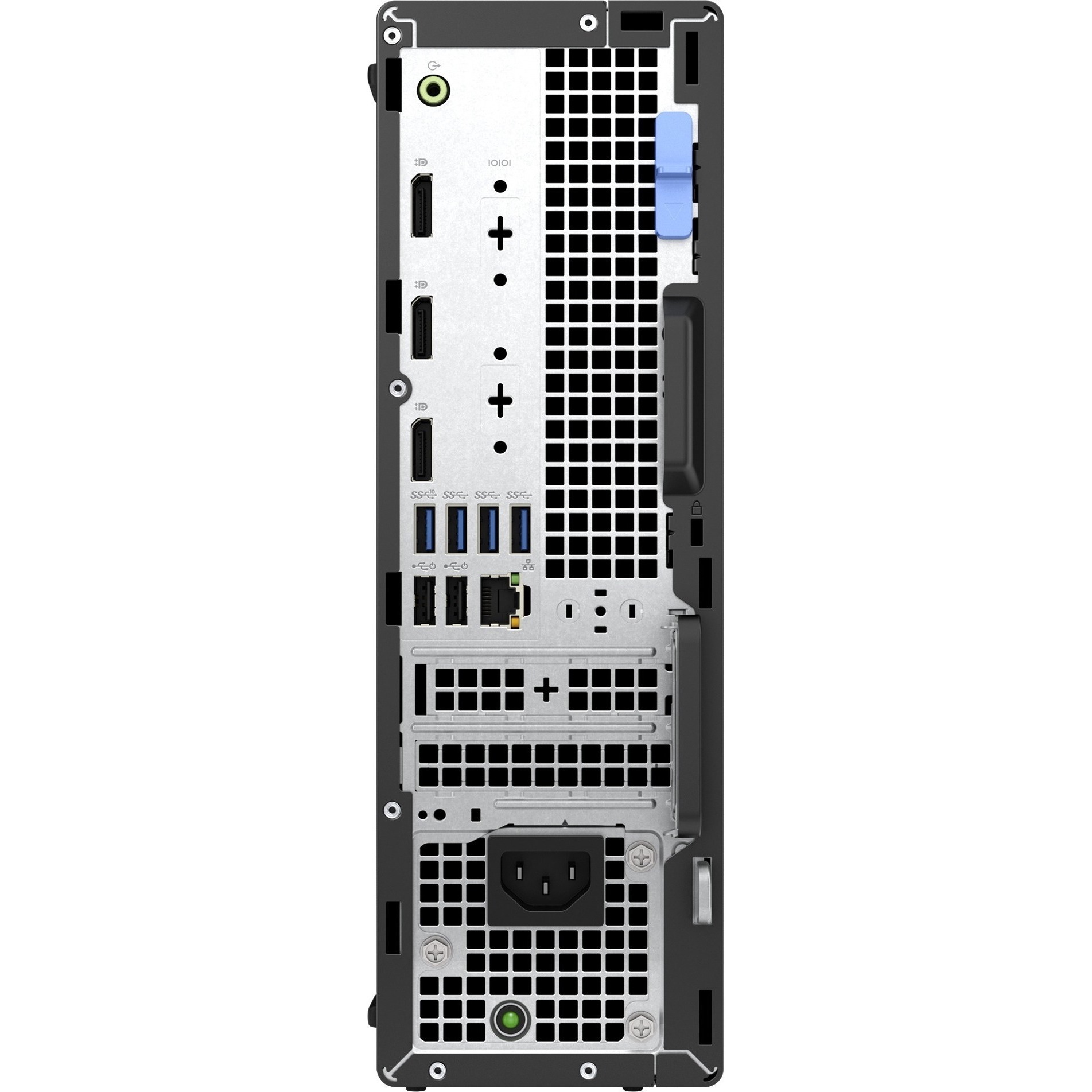

Interfaces/Ports
HDMI (Rear):
No
Total Number of USB Ports:
10
Number of USB 2.0 Ports (Front):
2
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
3
Number of USB 3.2 Gen 2 Ports:
2
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
3
DisplayPort (Rear):
Yes
Optional Ports:
1 Optional video port (HDMI 2.1/Displayport 1.4a (HBR3)/VGA/USB Type-C with DisplayPort Alt mode) 1 Optional PS2/Serial port
Details regarding optional ports aggregated from the information available for this product's family/series
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/French/Spanish/Portuguese
Power Description
Maximum Power Supply Wattage:
260 W
Physical Characteristics
Product Color:
Black
Form Factor:
Small Form Factor
Height:
11.4"
Width:
3.7"
Depth:
11.5"
Weight (Approximate):
8.58 lb
Miscellaneous
Package Contents:
- OptiPlex Small Form Factor Plus
- System Power Cord (US)
- Dell Pro Wireless Keyboard and Mouse
- USB Receiver
- Safety/Environment and Regulatory Guide (English/French Multi-language)
- Quick Start Guide, OptiPlex SFF Plus
Features:
- Security Slot
- Tool-less Access
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service with Hardware Support-Disti SnS
Item Numbers
GTIN:
0884116446668
UPC:
884116446668
EAN:
0884116446668
UNSPSC:
43211507
Frequently Asked Questions
What are the key specifications of the Dell M4FPX OptiPlex 7010?
The Dell M4FPX OptiPlex 7010 features a 13th Gen Intel Core i5-13500 processor with 14 cores running at 2.50 GHz, 16GB DDR5 RAM, and a 512GB M.2 NVMe SSD. It comes in a small form factor chassis with Windows 11 Pro, Intel UHD Graphics 770, and a 260W power supply, making it ideal for warehouse and logistics operations requiring reliable desktop computing.
Is the Dell M4FPX suitable for warehouse management systems?
Yes, the Dell M4FPX OptiPlex 7010 is well-suited for warehouse management applications. With its 13th Gen Intel Core i5 processor, 16GB DDR5 RAM, and Windows 11 Pro operating system, it delivers the performance and stability needed for running inventory management software, barcode scanning applications, and logistics tracking systems. We offer this model specifically for IT procurement teams managing warehouse operations.
What connectivity options does the Dell M4FPX provide?
While the detailed connectivity specifications vary by configuration, the Dell OptiPlex 7010 series typically includes standard USB ports, HDMI output, and network connectivity. For specific port configurations and expansion options available on the M4FPX, contact us today or visit barcodesinc.com to discuss your connectivity requirements with our team.
Can the Dell M4FPX be upgraded or expanded?
The Dell M4FPX OptiPlex 7010 features a small form factor design with expandable memory and storage options. The system supports DDR5 SDRAM upgrades and includes an M.2 NVMe SSD slot for potential storage expansion. Contact us today to discuss upgrade options and configurations that match your specific warehouse or IT infrastructure needs.
What operating system does the Dell M4FPX come with?
The Dell M4FPX OptiPlex 7010 ships with Windows 11 Pro, which provides enterprise-level security features, remote management capabilities, and compatibility with warehouse management and logistics software. Windows 11 Pro is ideal for organizations requiring professional-grade operating systems for business-critical applications.
Is the Dell M4FPX energy efficient for data center or warehouse environments?
Yes, the Dell M4FPX OptiPlex 7010 features a 260W power supply and is designed with energy efficiency in mind for business environments. The small form factor design also helps reduce physical footprint and power consumption compared to larger desktop systems. For detailed power consumption metrics and environmental certifications, visit barcodesinc.com or contact us today to speak with our technical team.
