Full specifications (PDF)
AI-powered:
Yes

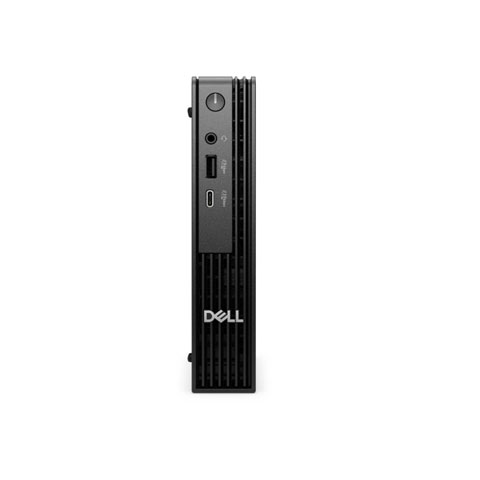

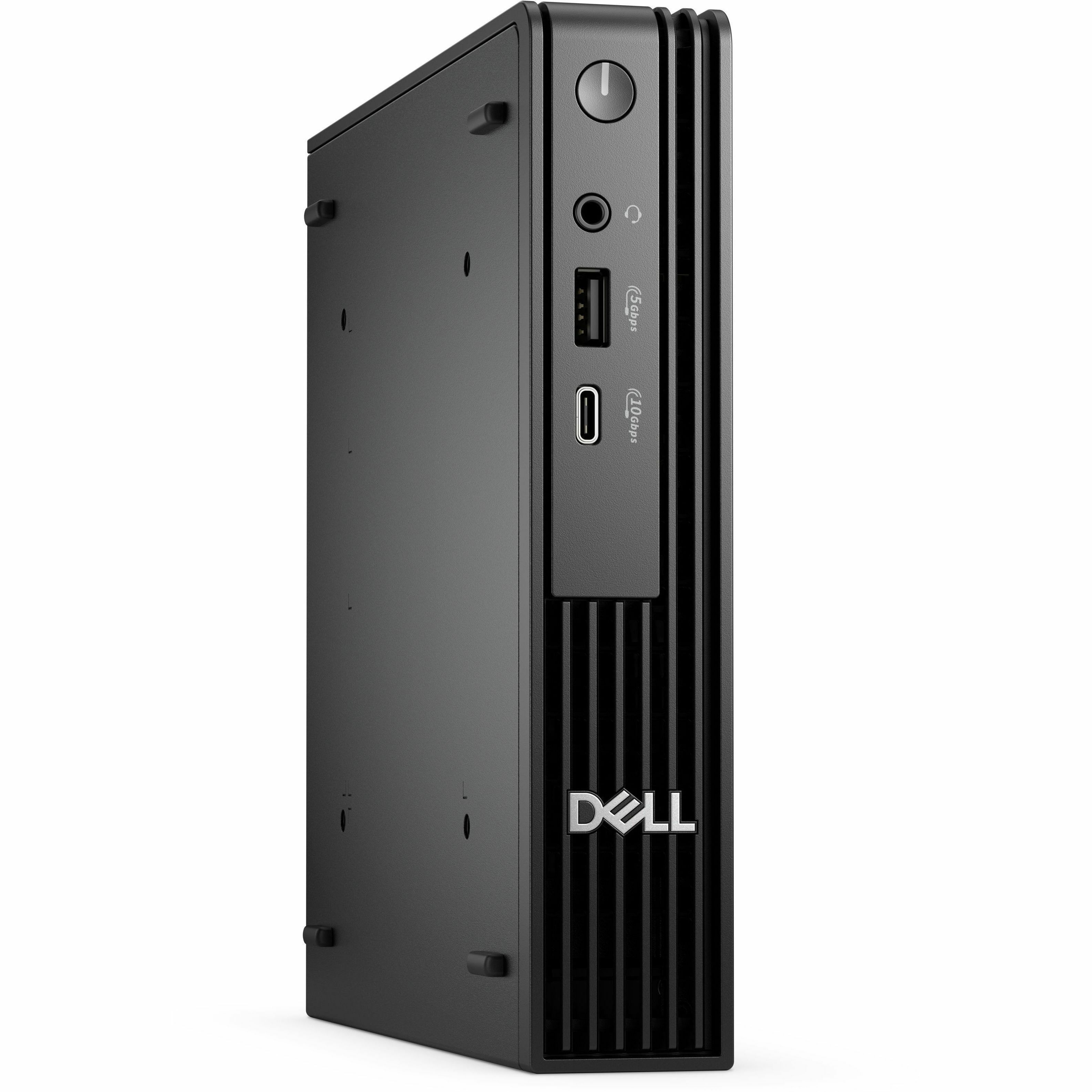

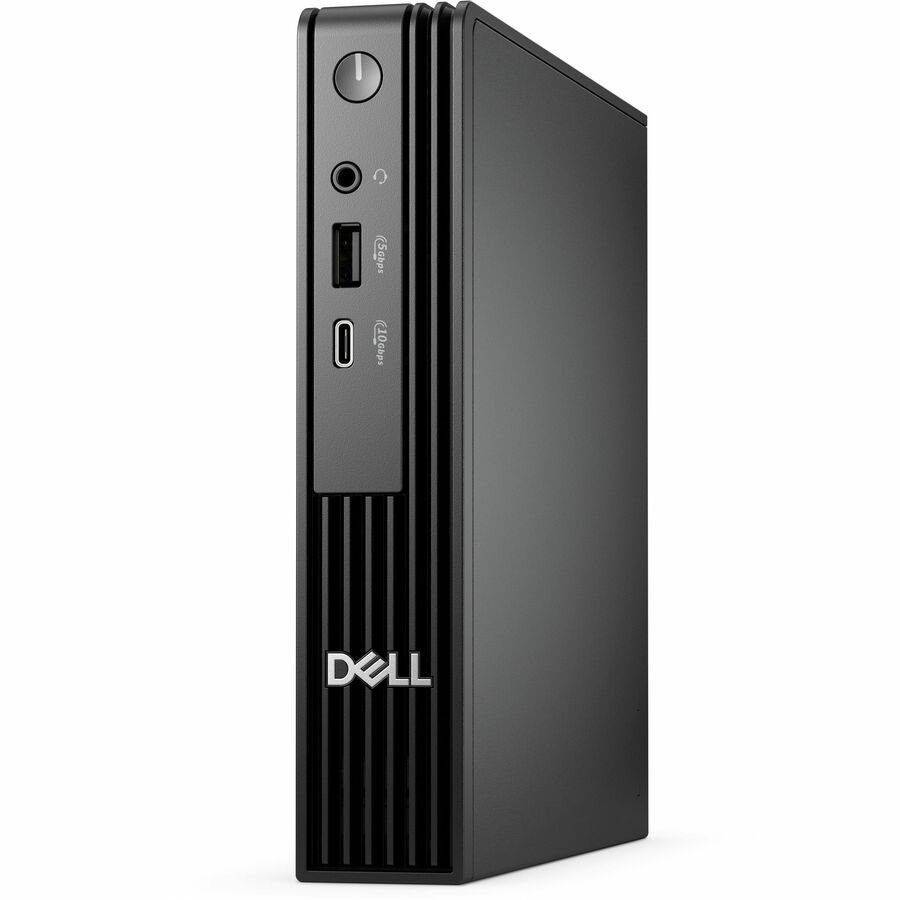

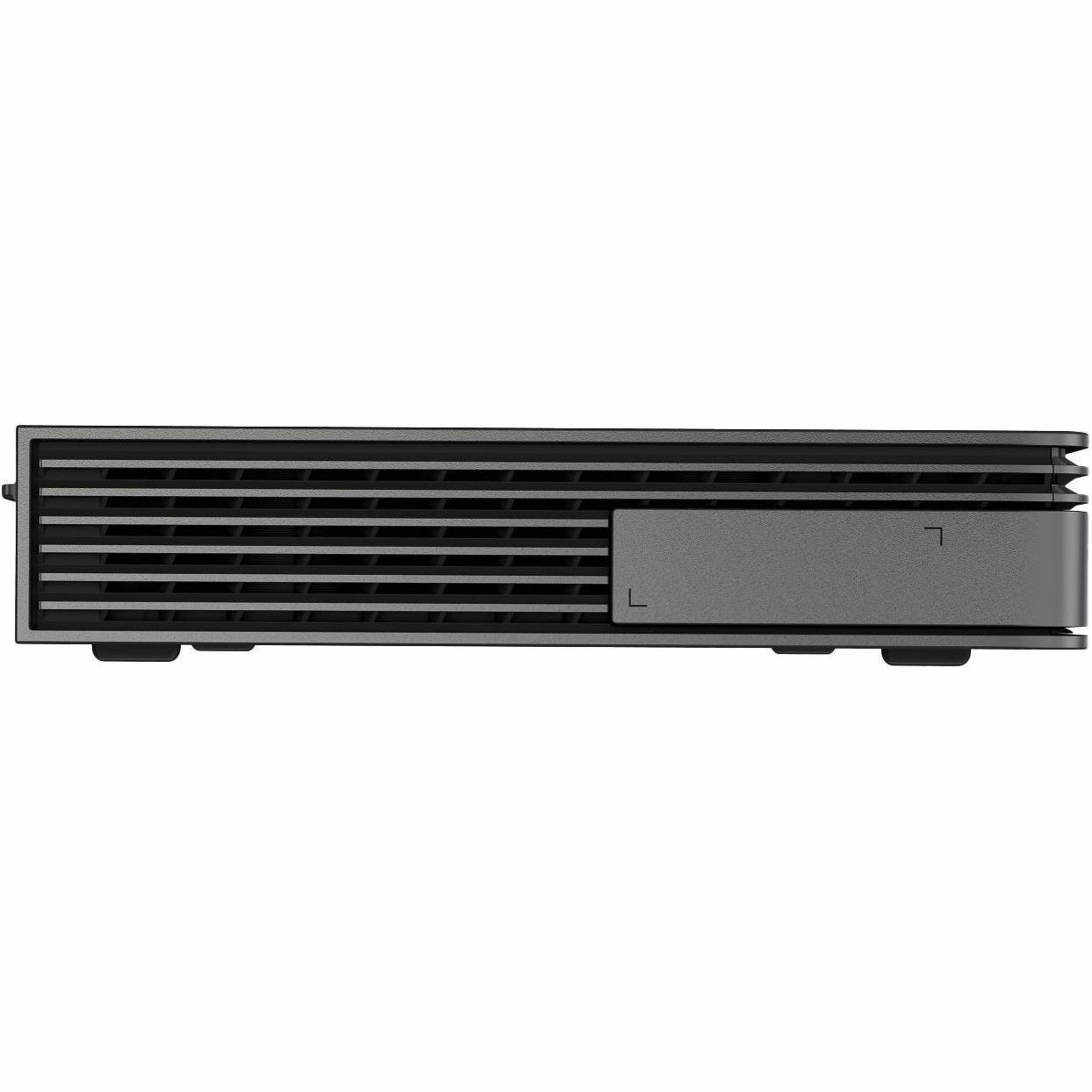

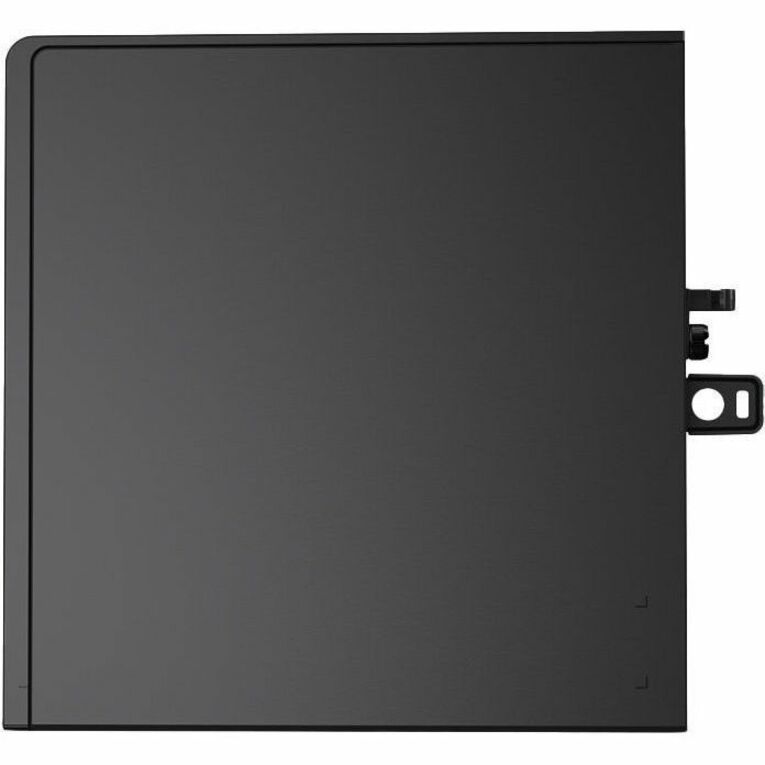

Dell KPH02 Desktop PC
Part Number:
KPH02
Model:
QCM1250
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 7
Processor Model:
265T
Processor Core:
Icosa-core (20 Core)
Processor Threads:
20
Processor Speed:
1.50 GHz
Maximum Turbo Speed:
5.30 GHz
vPro Technology:
Yes
NPU Manufacturer:
Intel
NPU Name:
AI Boost
NPU Performance:
13 TOPS
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 32GB
Number of Occupied Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Bluetooth:
Yes
Input Devices
Keyboard Localization:
English (US)

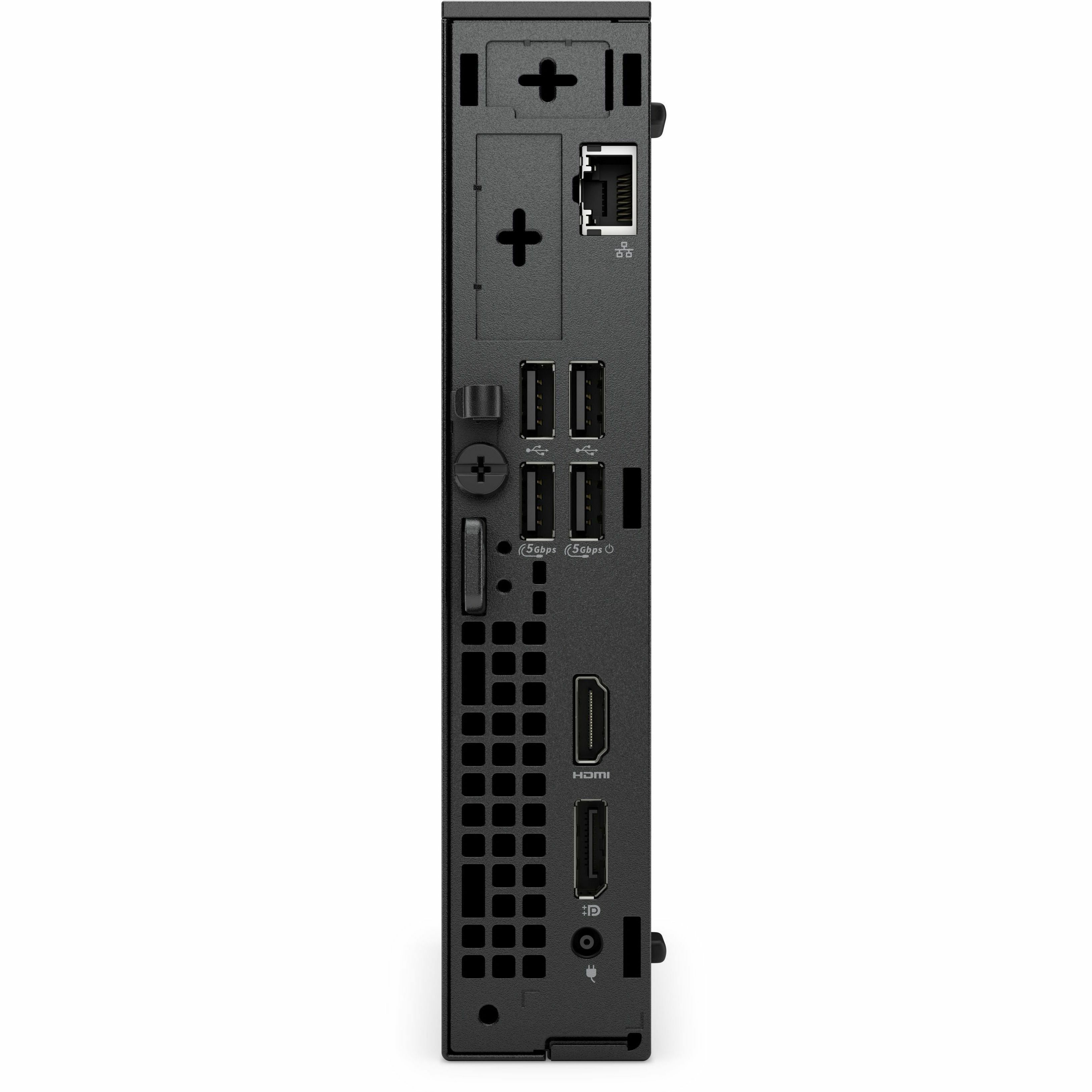

Interfaces/Ports
HDMI (Rear):
Yes
Total Number of USB Ports:
6
Number of USB 2.0 Ports (Front):
2
Number of USB 3.2 Gen 1 Ports:
3
USB Type-C (Front):
Yes
USB Type-C Detail:
1 USB 3.2 Gen 2 (10 Gbps) Type-C® port
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
1
DisplayPort (Rear):
Yes
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 optional module port (HDMI 2.1 FRL/DisplayPort™2.1 (UHBR20)/VGA/USB Type-C®with DisplayPort™Alt Mode/2 USB-A 3.2 Gen 2/PS2 and Serial/Serial Module/5G Optical Fiber)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
90 W
Physical Characteristics
Form Factor:
Micro PC
Height:
7.2"
Width:
1.4"
Depth:
7"
Weight (Approximate):
3.09 lb
Miscellaneous
Package Contents:
- Pro Micro QCM1250
- Keyboard
- Mouse
- Quick Start Guide
- Power Cord (US)
- Documentation
- AC Adapter
Systems Management:
No vPro Support
Features:
Security Slot
Energy Star:
Yes
Country of Origin:
Mexico
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS.
Item Numbers
GTIN:
0884116488262
UPC:
884116488262
EAN:
0884116488262
UNSPSC:
43211507
Frequently Asked Questions
What are the key specifications of the Dell KPH02 Desktop PC?
The Dell KPH02 is a Pro Micro desktop PC powered by an Intel Core Ultra 7 265T processor with Intel vPro Technology, 32 GB of DDR5 SDRAM, and a 512 GB SSD for fast storage and performance. It runs Windows 11 Pro and features IEEE 802.11ax wireless connectivity with a 90 W power supply, making it ideal for professional office and warehouse management environments requiring reliable computing power.
Is the Dell KPH02 suitable for warehouse and logistics operations?
Yes, the Dell KPH02 is well-suited for warehouse and logistics operations. Its compact Micro PC form factor, Intel vPro Technology for advanced system management, and robust Windows 11 Pro operating system make it ideal for IT procurement in warehouse management systems, inventory tracking, and logistics coordination. We offer this system as part of our comprehensive AIDC solutions for enterprise environments.
What connectivity options does the Dell KPH02 provide?
The Dell KPH02 features IEEE 802.11ax (Wi-Fi 6) wireless connectivity for fast, reliable network access in warehouse and office environments. The system includes multiple ports and connectivity standards suitable for integration with barcode scanners, label printers, and other AIDC devices commonly used in logistics operations. Contact us today for detailed connectivity specifications and integration support.
What makes the Intel Core Ultra 7 265T processor suitable for business computing?
The Intel Core Ultra 7 265T processor combined with 32 GB DDR5 SDRAM delivers strong multitasking performance for demanding business applications, data processing, and warehouse management software. The processor's efficiency and Intel vPro Technology enable advanced remote management and security features, making it ideal for IT-managed enterprise environments where system uptime and control are critical.
Does the Dell KPH02 support enterprise security and management features?
Yes, the Dell KPH02 includes Intel vPro Technology, which provides advanced security and remote management capabilities essential for enterprise IT environments. Windows 11 Pro delivers built-in security features including BitLocker encryption, Windows Defender, and Trusted Platform Module (TPM) support, making it suitable for organizations handling sensitive warehouse and logistics data.
What is the power consumption of the Dell KPH02, and is it energy-efficient?
The Dell KPH02 operates with a 90 W power supply, offering efficient power consumption for a desktop PC with its performance specifications. The Intel Core Ultra 7 265T processor is designed for power efficiency, making this system suitable for organizations looking to reduce energy costs in warehouse and office computing environments. Visit barcodesinc.com for more details on power specifications and energy efficiency ratings.
