AI-powered:
Yes

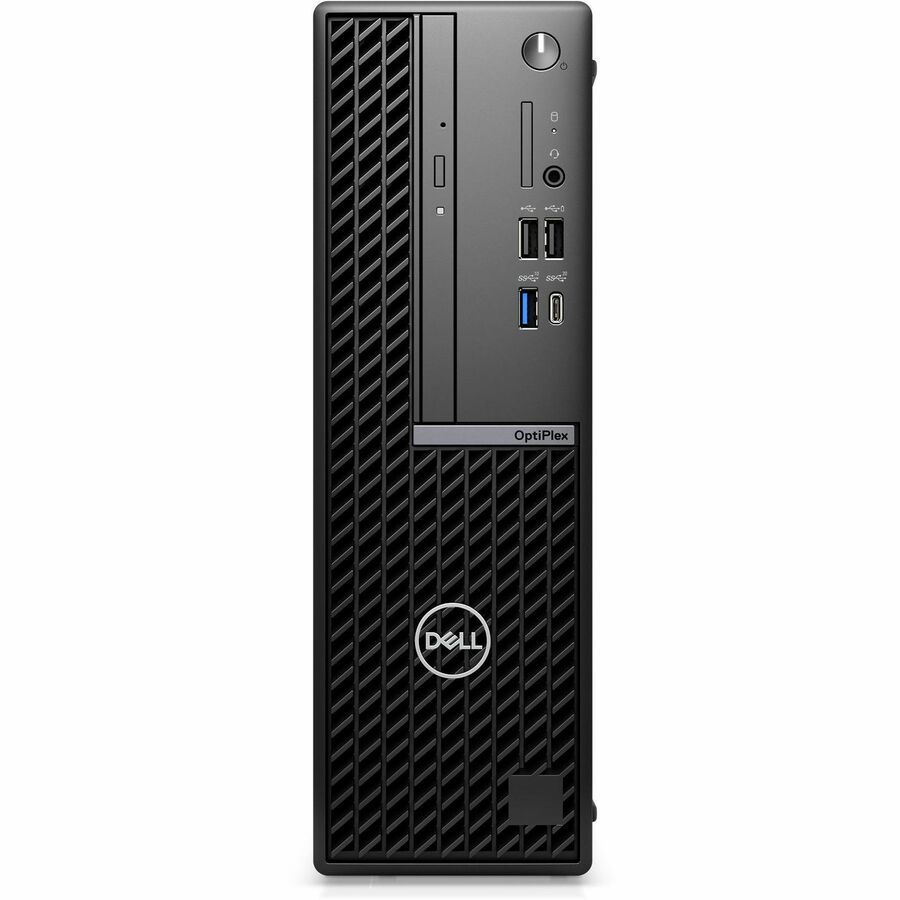

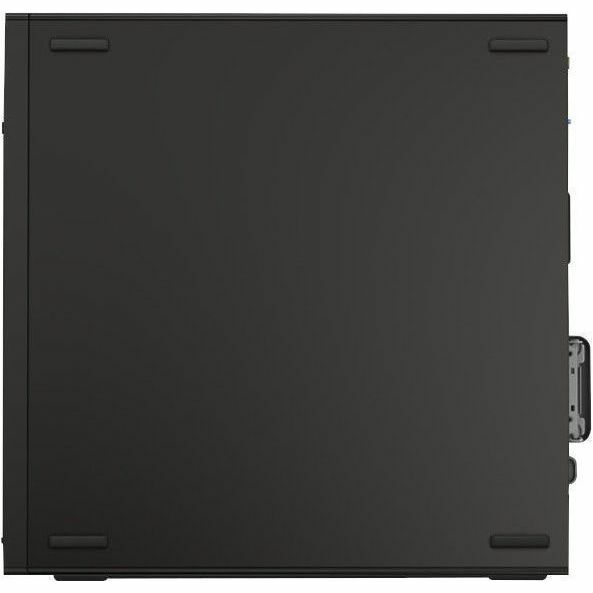

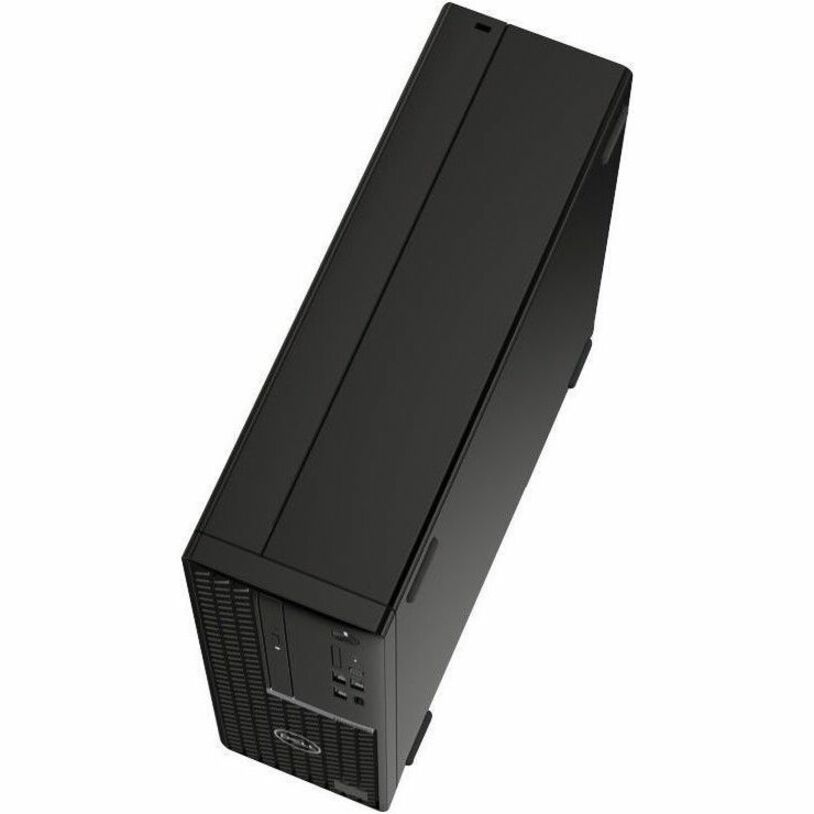

Dell K9Y04 Desktop PC
Part Number:
K9Y04
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell K9Y04 Desktop PC Overview
Built to create the perfect balance
Balance compact size and powerful performance in a desk-friendly design.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i9
Processor Generation:
14th Gen
Processor Model:
i9-14900
Processor Core:
Tetracosa-core (24 Core)
Processor Threads:
32
Processor Speed:
2 GHz
Maximum Turbo Speed:
5.40 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
64 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
2 x 32GB
Total Number of Memory Slots:
4
Number of Occupied Memory Slots:
2
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
1 TB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
UHD Graphics 770
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Bluetooth:
Yes
Input Devices
Keyboard Localization:
English (US)
Interfaces/Ports
Total Number of USB Ports:
10
Number of USB 2.0 Ports (Front):
2
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
3
Number of USB 3.2 Gen 2 Ports:
2
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
3
DisplayPort (Rear):
Yes
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 x Video Port (HDMI 2.1/DisplayPort™ 1.4a/VGA/USB Type-C with DisplayPort™ Alt mode)
- 1 x Serial Port
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
260 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Small Form Factor
Height:
11.4"
Width:
3.6"
Depth:
11.5"
Weight (Approximate):
12.39 lb
Miscellaneous
Package Contents:
- OptiPlex 7020 Plus Desktop Computer
- Power Cord
- Quick Start Guide
- Wireless Mouse
- Wireless Keyboard
- USB Receiver
- Safety/Environment and Regulatory Guide
Features:
Security Slot
Energy Star:
Yes
Country of Origin:
Mexico
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
- TCO Certified Generation 9
- Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
Energy Efficiency Certification:
ENERGY STAR 8.0
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116479352
UPC:
884116479352
EAN:
0884116479352
UNSPSC:
43211507
Frequently Asked Questions
What processor does the Dell K9Y04 OptiPlex 7020 Plus use?
The Dell K9Y04 features an Intel Core i9 14th Gen i9-14900 processor with vPro Technology, delivering high-performance computing for demanding warehouse management and logistics applications. This enterprise-grade processor is optimized for multitasking and data-intensive operations common in AIDC environments.
How much memory and storage does this Dell desktop computer include?
The Dell K9Y04 OptiPlex 7020 Plus comes standard with 64 GB of DDR5 SDRAM and 1 TB SSD storage, providing ample capacity for running warehouse management systems, barcode scanning software, and RFID inventory applications simultaneously. The solid-state drive ensures fast boot times and responsive performance for time-critical logistics operations.
Is the Dell K9Y04 suitable for small office or warehouse environments?
Yes, the Dell K9Y04 is designed in a Small Form Factor chassis, making it ideal for space-constrained warehouse offices, receiving areas, and logistics centers where desk space is limited. Its compact black design fits easily into workstations while maintaining the processing power needed for barcode scanning, label printing, and inventory management tasks.
What operating system and connectivity options are included?
The Dell K9Y04 comes pre-installed with Windows 11 Pro and includes IEEE 802.11ax (Wi-Fi 6) wireless LAN connectivity for seamless integration into modern warehouse networks. This combination ensures compatibility with enterprise AIDC software and provides reliable wireless connectivity for mobile barcode scanners and RFID readers throughout your facility.
Does the Dell K9Y04 include graphics capabilities for display applications?
The Dell K9Y04 features Intel UHD Graphics 770, which provides solid performance for business applications, multiple monitor setups, and barcode label design software without requiring discrete graphics. This integrated graphics solution is sufficient for warehouse management dashboards, inventory tracking displays, and standard office productivity applications.
What is the power consumption of this Dell desktop computer?
The Dell K9Y04 OptiPlex 7020 Plus has a 260 W power supply, offering efficient energy consumption suitable for continuous warehouse operations. We offer this system with Windows 11 Pro and full enterprise support—contact us today at barcodesinc.com to discuss how this Dell desktop can integrate with your barcode scanning and RFID infrastructure.
