Release Year:
2025
AI-powered:
Yes

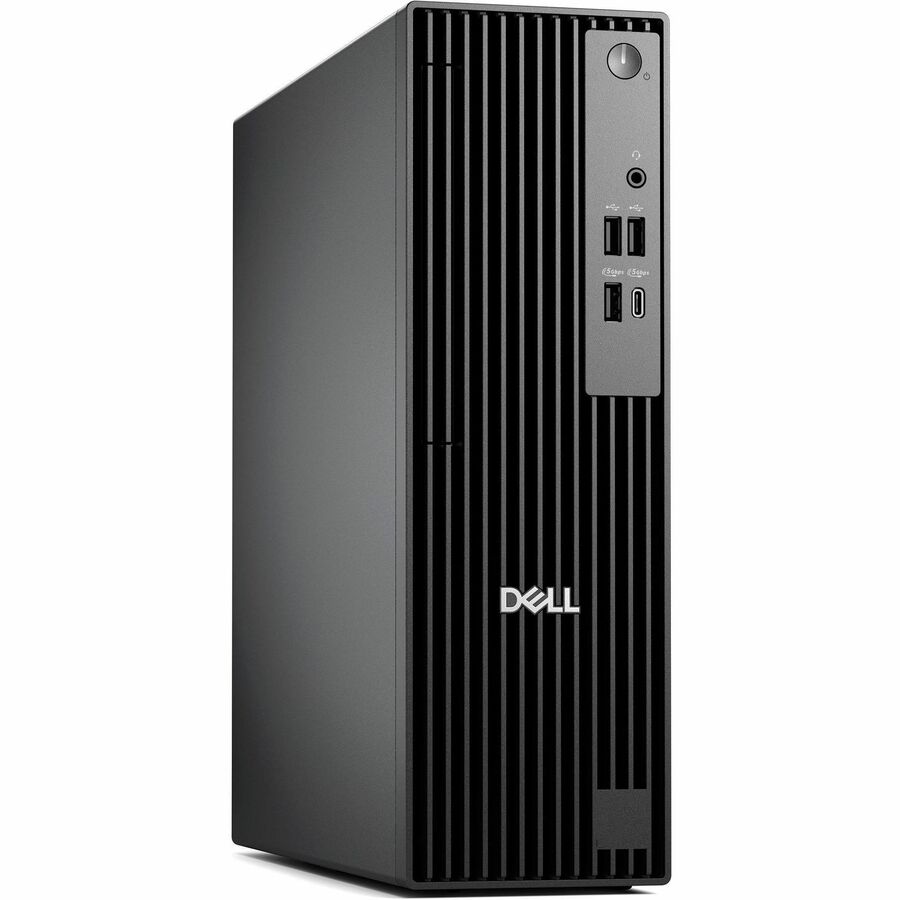

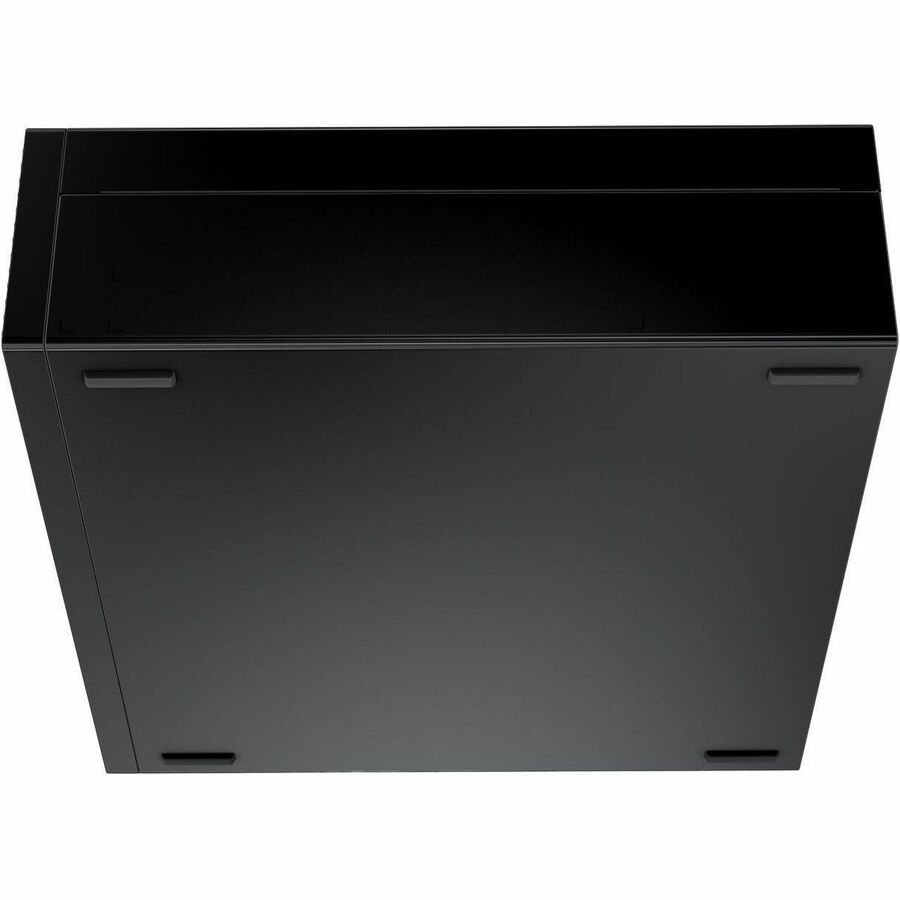

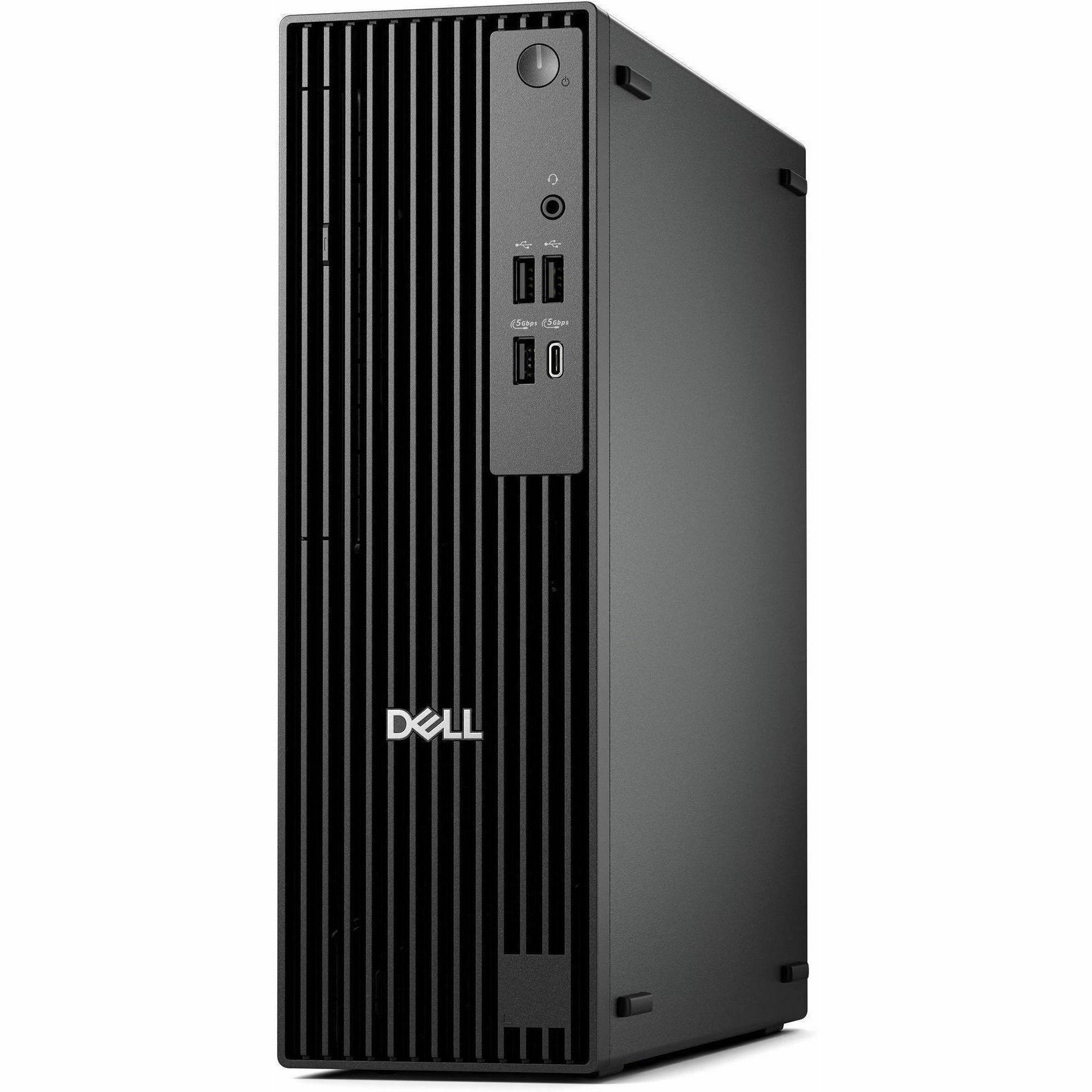

Dell JWX5R Desktop PC
Part Number:
JWX5R
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell JWX5R Desktop PC Overview
Space-saving performance and expandability
Power productivity with this compact PC featuring a sleek space-saving design, enhanced thermals, and Intel® Core™ processors (14th Gen). Upgrade to Intel® Core™ Ultra processors (Series 2) for enhanced AI performance.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 5
Processor Model:
235
Processor Core:
Tetradeca-core (14 Core)
Processor Threads:
14
Processor Speed:
3.40 GHz
Maximum Turbo Speed:
5 GHz
vPro Technology:
Yes
NPU Manufacturer:
Intel
NPU Name:
AI Boost
NPU Performance:
13 TOPS
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 16GB
Number of Occupied Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
256 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Optical Drive Type:
DVD-Writer
Optical Media Supported:
DVD±R/±RW
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
No
Input Devices
Keyboard Localization:
English (US)
Interfaces/Ports
Number of HDMI Outputs:
1
HDMI (Rear):
Yes
Total Number of USB Ports:
8
Number of USB 2.0 Ports (Front):
2
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
3
USB Type-C (Front):
Yes
USB Type-C Detail:
1 x USB 3.2 Gen 1 (5 Gbps) Type-C® port
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
1
DisplayPort (Rear):
Yes
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 HDMI 2.1 (FRL) port (optional)
- 1 DisplayPort™ 2.1 (UHBR20) port (optional)
Rear (expansion, these are mutually exclusive options):
- 1 VGA port (optional)
- 1 Serial port (optional)
- 2 USB 3.2 Gen 2 (10 Gbps) ports (optional)
- 1 USB 3.2 Gen 2 (10 Gbps) Type-C®with DisplayPort™ Alt Mode port (optional)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
180 W
Physical Characteristics
Color Family:
Black
Product Color:
Standard Black
Form Factor:
Slim PC
Height:
12"
Width:
3.7"
Depth:
11.5"
Weight (Approximate):
12.99 lb
Miscellaneous
Package Contents:
- Pro Slim QCS1250
- Keyboard
- Mouse
- Power Cord
- Quick Start Guide
- Documentation
Systems Management:
No vPro Support
Features:
- Security Slot
- Tool-less Access
Energy Star:
Yes
Country of Origin:
Mexico
Environmentally Friendly:
Yes
Environmental Certification:
- Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
- Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116488651
UPC:
884116488651
EAN:
0884116488651
UNSPSC:
43211507
Frequently Asked Questions
What processor and operating system does the Dell JWX5R come with?
The Dell JWX5R Desktop PC features an Intel Core Ultra 5 235 processor with vPro Technology and comes pre-installed with Windows 11 Pro. This combination delivers reliable performance for business and warehouse operations with enterprise-grade security features built in.
How much memory and storage does this Dell desktop provide?
The Dell JWX5R includes 16 GB of DDR5 SDRAM and a 256 GB SSD for fast boot times and application loading. This configuration provides ample capacity for typical warehouse management and logistics software while maintaining quick system responsiveness.
Is the Dell JWX5R suitable for warehouse and logistics environments?
Yes, the Dell JWX5R is well-suited for warehouse and logistics operations. Its compact slim design fits easily in control rooms or office spaces, while the 180 W power supply and Windows 11 Pro operating system support standard warehouse management and RFID software applications. We offer this model to support IT procurement teams managing distributed warehouse locations.
What connectivity and multimedia features are included?
The Dell JWX5R includes a DVD-Writer and standard English (US) keyboard for data input and media management. The system supports modern connectivity standards required for warehouse networks, making it compatible with barcode scanners, label printers, and mobile computers available from us.
Does this desktop support vPro Technology for remote management?
Yes, the Intel Core Ultra 5 235 processor with vPro Technology enables remote system management, which is valuable for IT teams overseeing multiple warehouse locations. This allows for secure, out-of-band management capabilities without requiring the operating system to be running.
What type of memory does the Dell JWX5R use and is it upgradeable?
The Dell JWX5R uses DDR5 SDRAM, which represents the latest memory technology for improved performance and efficiency. For specific upgrade options and maximum memory capacity, contact us today or visit barcodesinc.com to discuss your warehouse infrastructure requirements with our team.
