Dell JKNFV Workstation PC
Part Number:
JKNFV
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

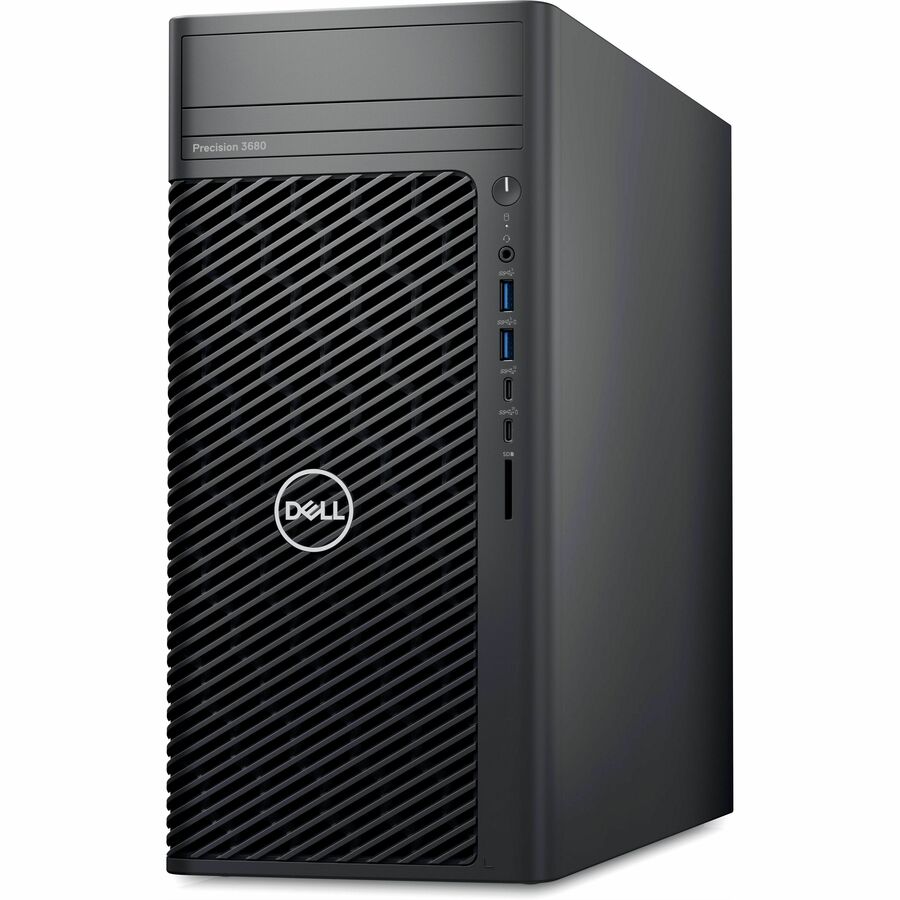

Dell JKNFV Workstation PC Overview
Exceptionally scalable performance in an entry tower design
The new 3680 Tower is Dell's fastest workstation for single-threaded tasks, featuring new 14th Gen Intel®Core™ processors with Unlimited Turbo Duration.
Technical Information
Processor
Processor Type:
Core i7
Processor Generation:
14th Gen
Processor Model:
i7-14700
Processor Core:
Icosa-core (20 Core)
Processor Threads:
28
Processor Speed:
2.10 GHz
Maximum Turbo Speed:
5 GHz
NPU Manufacturer:
Intel
NPU Name:
AI Boost
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR5 SDRAM
Total Number of Memory Slots:
4
Error Checking:
Non-ECC
Memory Configuration:
2 x 8GB
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
Optical Drive Type:
DVD-Writer
Controllers
Controller Type:
NVMe
RAID Supported:
No
Display & Graphics
Touchscreen:
No
VR Ready:
Yes
Graphics Memory Capacity:
8 GB
Graphics Memory Technology:
GDDR6
Graphics Memory Accessibility:
Dedicated
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Bluetooth:
Yes

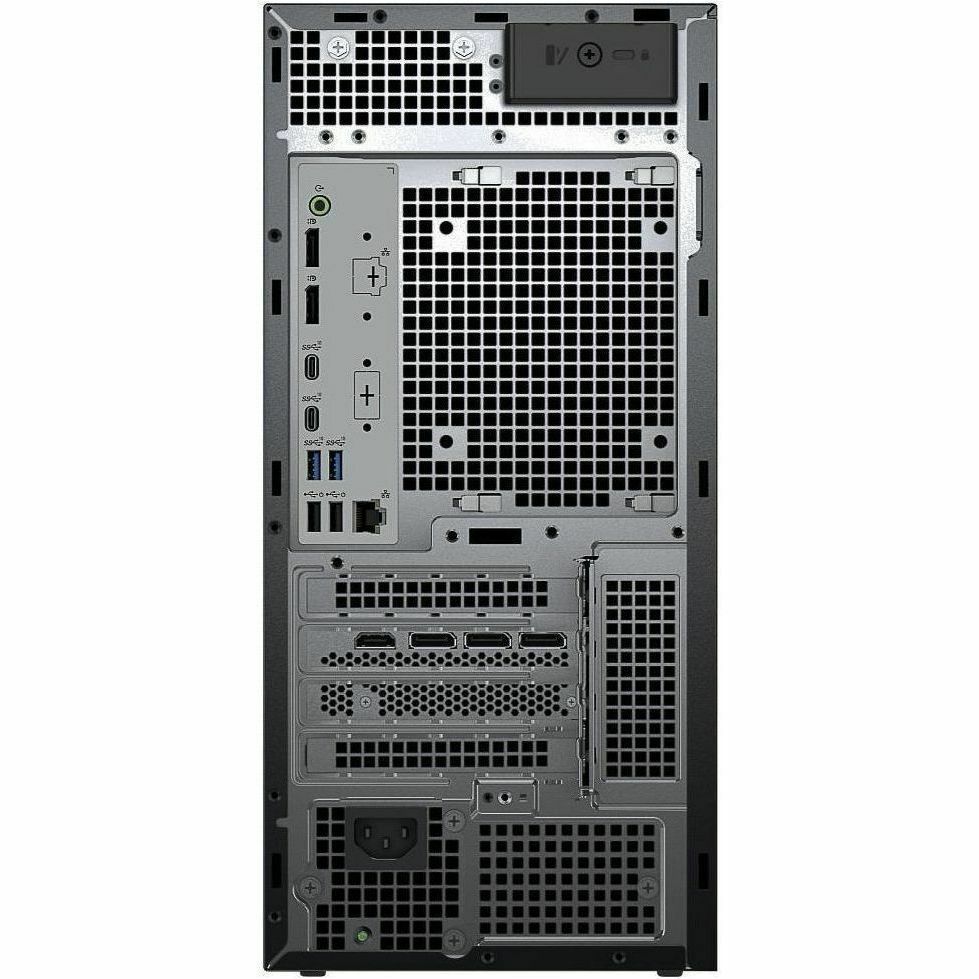

Interfaces/Ports
Total Number of USB Ports:
10
Number of USB 2.0 Ports:
2
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
2
USB Type-C:
Yes
USB Type-C Detail:
Front: 1 USB 3.2 Gen 2x2 (20 Gbps) Type-C® port with PowerShare,1 USB 3.2 Gen 2 (10 Gbps) Type-C® port, Rear: 2 USB 3.2 Gen 2 (10 Gbps) Type-C® ports
Network (RJ-45):
Yes
DisplayPort:
Yes
Mini DisplayPort:
Yes
Number of Mini DisplayPort:
4
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs:
2
Optional Ports:
1 Optional Port (VGA, HDMI 2.0, DP++ 1.4a HB3, USB 3.2 Gen 2 (10 Gbps) Type-C® with DP-Alt mode) 1 RJ45 (2.5 GbE) Ethernet port (optional)
Details regarding optional ports aggregated from the information available for this product's family/series
Input Devices
Keyboard Localization:
English (US)
Built-in Devices
Finger Print Reader:
Yes
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/French/Spanish/Portuguese/Brazilian
Power Description
Maximum Power Supply Wattage:
500 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Cooler Type:
Air Cooler
Form Factor:
Tower
Height:
14.7"
Width:
6.8"
Depth:
16.5"
Weight (Approximate):
35.38 lb
Miscellaneous
Package Contents:
- Precision 3680 Workstation
- Keyboard
- Mouse
- Power Cord
- 4 mDP to DP Adapter
- Quick Setup Guide, Precision 3680
- Safety/Environment and Regulatory Guide (English/French Multi-language)
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116470649
UPC:
884116470649
EAN:
0884116470649
UNSPSC:
56112002
Frequently Asked Questions
What processor and memory configuration does the Dell Precision 3680 workstation include?
The Dell Precision 3680 features a 14th Generation Intel Core i7-14700 processor with vPro Technology for enhanced security and manageability, paired with 16 GB of memory and a 512 GB NVMe SSD for fast storage and application performance. This configuration is ideal for professionals running demanding design, engineering, and content creation applications. We offer this workstation fully configured and ready to deploy from our warehouse.
Is the Dell Precision 3680 suitable for graphics-intensive work?
Yes, the Dell Precision 3680 includes 8 GB of dedicated graphics memory, making it well-suited for CAD, 3D rendering, video editing, and other graphics-intensive workloads. The integrated graphics and discrete GPU options provide the performance needed for professional creative and engineering tasks. Contact us today to discuss the right graphics configuration for your specific workflow.
What operating system and connectivity options are available on this workstation?
The Dell Precision 3680 ships with Windows 11 Pro and includes Gigabit Ethernet and Wireless LAN for reliable network connectivity in office and remote environments. The system also features a DVD-Writer for optical media support and an English (US) keyboard as standard. We can help you configure additional connectivity options based on your IT infrastructure needs.
What security features does the Dell Precision 3680 offer?
The Dell Precision 3680 includes Intel vPro Technology, which provides advanced security, remote management, and hardware-based protection features essential for enterprise environments. This technology enables secure boot, encrypted storage options, and remote administration capabilities for IT teams managing multiple workstations. Visit barcodesinc.com to learn more about our security-focused workstation solutions.
Can the Dell Precision 3680 be expanded with additional storage or memory?
Yes, the Dell Precision 3680 supports memory expansion with DDR3 SDRAM options and includes an NVMe controller for fast storage upgrades beyond the standard 512 GB SSD. The tower form factor provides easy access to internal components for future upgrades and maintenance. Our team can assist with expansion recommendations and installation support.
Is the Dell Precision 3680 suitable for warehouse, logistics, or inventory management applications?
While the Precision 3680 is designed as a high-performance workstation for design and engineering work, it can support inventory management, warehouse planning, and logistics software applications. For dedicated warehouse mobile computers and barcode scanning solutions optimized for AIDC operations, we offer specialized devices from leading manufacturers. Contact us today to discuss the right equipment for your warehouse and logistics needs.
