Release Year:
2024
AI-powered:
Yes

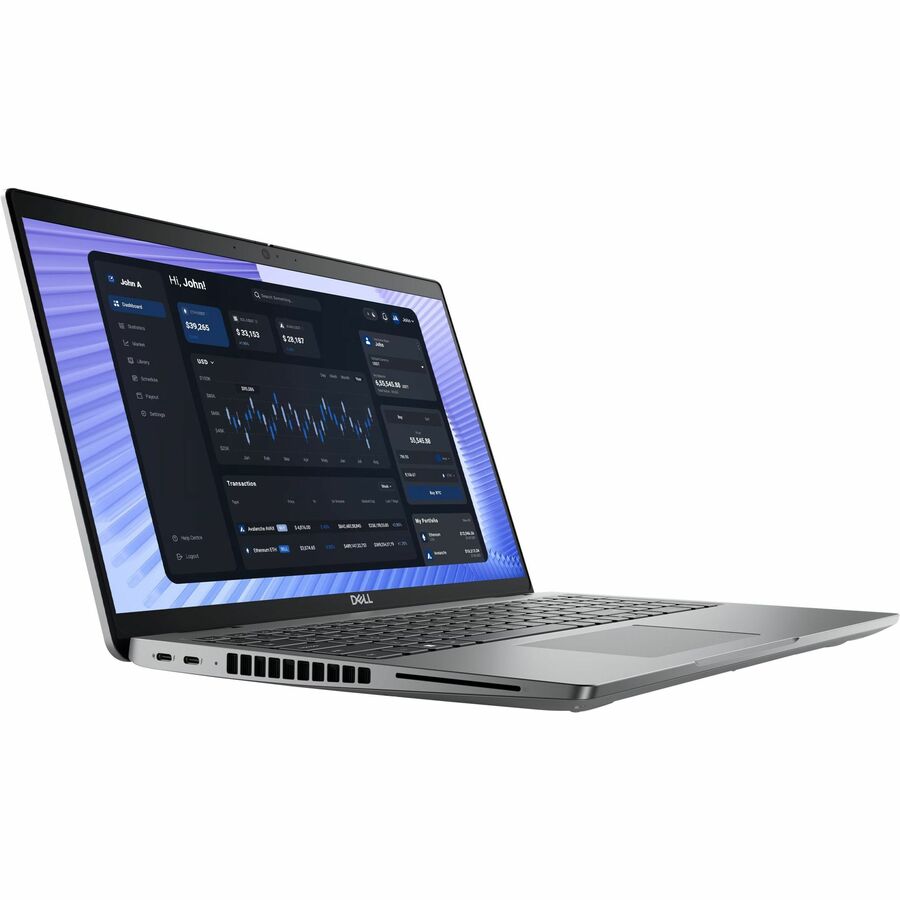

Dell J1270 Workstation PC
Part Number:
J1270
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell J1270 Workstation PC Overview
Extraordinary performance. Built for the power user.
With intelligently optimized performance, the Precision 3590 is a reliable workstation for entry-level design and creative applications.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 7
Processor Model:
165H
Processor Core:
Hexadeca-core (16 Core)
Processor Threads:
22
Maximum Turbo Speed:
5 GHz
NPU Name:
AI Boost
vPro Technology:
Yes
Intel Evo Platform:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Supported System Memory:
64 GB
System Memory Technology:
DDR5 SDRAM
System Memory Form Factor:
SODIMM
Installed Slot Memory:
16 GB
Installed Slot Memory Configuration:
1 x 16GB
Total Number of Memory Slots:
2
Number of Occupied Memory Slots:
1
Number of Free Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
SSD Form Factor:
M.2
Display & Graphics
Screen Size:
15.6"
Display Screen Technology:
In-plane Switching (IPS) Technology
Standard Refresh Rate:
60 Hz
Screen Mode:
Full HD
Screen Resolution:
1920 x 1080
Brightness:
250 Nit
Color Gamut:
45% NTSC
Touchscreen:
No
Graphics Controller Manufacturer:
NVIDIA
Graphics Controller Model:
RTX 500
Graphics Memory Capacity:
4 GB
Graphics Memory Technology:
GDDR6
Graphics Memory Accessibility:
Dedicated
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Wimax:
No
Ethernet Technology:
Ethernet
Bluetooth:
Yes
WWAN Supported:
No
Built-in Devices
Camera Privacy Shutter:
Yes
Front Camera/Webcam:
Yes
Infrared Camera:
Yes
Finger Print Reader:
Yes
Interfaces/Ports
HDMI:
Yes
Total Number of USB Ports:
2
Number of USB 3.2 Gen 1 Ports:
2
Number Of Ethernet Ports:
1
Network (RJ-45):
Yes
Number of Thunderbolt 4 Ports:
2
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Input Devices
Keyboard Backlight:
Yes
Keyboard Localization:
English (US)
Battery Information
Number of Cells:
3-cell
Battery Chemistry:
Lithium Ion (Li-Ion)
Power Description
Maximum Power Supply Wattage:
100 W
Power Plug Type:
Type C
USB Power Delivery Support:
Yes
Physical Characteristics
Color Family:
Gray
Product Color:
Titan Gray
Height:
0.90"
Width:
14.1"
Depth:
9.2"
Weight (Approximate):
3.58 lb
Miscellaneous
Package Contents:
- Precision 3590 Mobile Workstation
- Standard Battery
- AC Adapter
- Power Cord
- Quick Setup Guide for Mobile Precision 3590
- Safety and Regulatory Documents English,French,Dutch
Charger Included:
Yes
Features:
- Anti-glare Screen
- ExpressCharge
Energy Star:
Yes
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- TCO Certified 9.0
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Energy Efficiency Certification:
ENERGY STAR 8.0
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:
1Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116471868
UPC:
884116471868
EAN:
0884116471868
UNSPSC:
43211503
Frequently Asked Questions
What are the key specifications of the Dell Precision 3590 mobile workstation?
The Dell Precision 3590 features a 15.6" Full HD display (1920 x 1080) with 60 Hz refresh rate, Intel Core Ultra 7 165H processor with vPro Technology, 16 GB of memory, 512 GB SSD storage, and NVIDIA RTX 500 Ada graphics with 4 GB dedicated memory. The workstation runs Windows 11 Pro and includes Intel Evo Platform certification for optimized performance and battery efficiency. We offer this model as a complete solution for professionals requiring portable computing power for demanding applications.
Is the Dell J1270 suitable for CAD and 3D design work?
Yes, the Dell Precision 3590 is engineered for professional workloads including CAD and 3D design, thanks to its NVIDIA RTX 500 Ada graphics card with dedicated 4 GB VRAM and Intel Core Ultra 7 165H processor. The 16 GB system memory and 512 GB SSD provide responsive performance for complex modeling and rendering tasks. Contact us today to discuss whether this configuration meets your specific design software requirements.
What connectivity options does the Dell Precision 3590 provide?
The Dell Precision 3590 includes IEEE 802.11ax (Wi-Fi 6) wireless connectivity, HDMI output for external displays, USB ports for peripheral connections, and a network connector for wired Ethernet. The workstation also features a front-facing webcam for video conferencing and collaboration. Visit barcodesinc.com to explore docking station and expansion options available from us for enhanced connectivity in warehouse and logistics environments.
Can the Dell Precision 3590 be configured with security features for enterprise environments?
Yes, the Dell Precision 3590 supports Intel vPro Technology with advanced management capabilities, enabling secure remote administration and asset management across enterprise deployments. The system is compatible with security features including smart card readers and TPM (Trusted Platform Module) for hardware-based encryption and authentication. We offer this workstation with enterprise security configurations suitable for logistics and warehouse management operations requiring compliance and data protection.
What is the display technology used in the Dell Precision 3590?
The Dell Precision 3590 features a 15.6" Full HD IPS (In-Plane Switching) display with 1920 x 1080 resolution and 60 Hz refresh rate, providing excellent color accuracy and wide viewing angles essential for design and engineering work. The IPS panel technology ensures consistent color representation across different viewing positions, critical for professionals working with graphics and visual content. Contact us today for information about optional display configurations or calibration services available from us.
Is the Dell Precision 3590 portable enough for field operations in logistics and warehousing?
The Dell Precision 3590 is designed as a mobile workstation with a compact 15.6" form factor, making it suitable for professionals who need to move between warehouse locations and field sites. The system includes a front camera for remote documentation and collaboration, plus Wi-Fi 6 connectivity for seamless network access in dynamic environments. We offer this workstation with extended battery options and protective carrying solutions optimized for logistics operations—visit barcodesinc.com to explore our complete mobile computing packages.
