Storage Capacity:
146 GB
Dell H6776 Drive
Part Number:
H6776
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

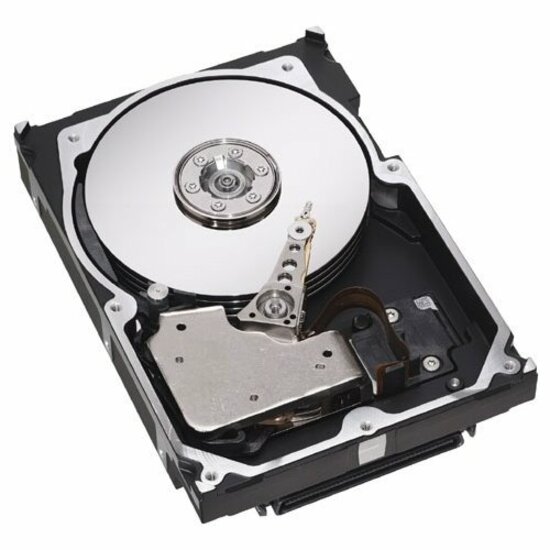

Dell H6776 Drive Overview
Increase the storage capacity of your system with this high-performance 146 GB Hard Drive from Dell™. It offers a high spindle speed of up to 15,000 RPM. The flexibility and expandability of its Ultra320 SCSI interface allows you to construct a high performance and reliable disk subsystem, while providing data transfer rates of up to 320 MBps. This product has been tested and validated on Dell. It is supported by Dell Technical Support when used with a Dell system.
Technical Information
Drive Performance
Maximum External Data Transfer Rate:
320 MB/s (2.5 Gbit/s)
Spindle Speed (rpm):
15000
Interfaces/Ports
Drive Interface:
SCSI
Drive Interface Standard:
Ultra320 SCSI
SCSI Pin:
80-pin
Physical Characteristics
Drive Type:
Internal
Form Factor:
3.5"
Hot Pluggable:
Yes
Height:
1"
Width:
4"
Depth:
5.8"
Weight (Approximate):
3 lb
Miscellaneous
Package Contents:
- 146GB 15K RPM 80-pin SCSI U320 3.5-in HotPlug Hard Drive
- 4 x Flat Headed Screw
- 1 x Carrier Assembly
Compatibility:
Dell PowerEdge Servers:
- 1800
- 1850
- 2600
- 2650
- 2800
- 2850
- 6600
- 6650
- 6800
- 6850
- 7250
- 800
- 1600
- 1600SC
- 1650
- 1750
- 1855
- 3250
- 700
- 7150
- 830
- 8450
- SC1500
- SC1600
Dell PowerVault Storage Arrays:
- 770N
- 775N
- 220S
- 221S
- 220F
- 650F
- 660F
Device Supported:
Server
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Item Numbers
GTIN:
0754031100511
UPC:
754031100511
EAN:
0754031100511
UNSPSC:
43201803
Frequently Asked Questions
What are the specifications of the Dell H6776 drive?
The Dell H6776 is a 146 GB hard drive with a 3.5" form factor, featuring Ultra320 SCSI interface and 15,000 RPM spindle speed for high-performance server and storage applications. It supports hot-pluggable operation, allowing for drive replacement without system downtime. We offer this genuine Dell component for organizations requiring reliable enterprise-class storage solutions.
Is the Dell H6776 drive hot-pluggable?
Yes, the Dell H6776 is a hot-pluggable drive, which means it can be safely removed and replaced while the system is running without interrupting operations. This feature is essential for data center and server environments where uptime is critical. Contact us today to verify compatibility with your specific server configuration.
What interface does the Dell H6776 drive use?
The Dell H6776 uses the Ultra320 SCSI interface, which provides high-speed data transfer suitable for enterprise server environments. Ultra320 SCSI delivers up to 320 MB/s bandwidth and is commonly found in legacy and mid-range Dell PowerEdge servers. Visit barcodesinc.com to confirm compatibility with your hardware setup.
What is the RPM speed of the Dell H6776 drive?
The Dell H6776 operates at 15,000 RPM, delivering excellent performance for database servers, application servers, and high-I/O workloads. This high spindle speed ensures faster data access times and throughput compared to standard 7,200 RPM drives. We stock this drive for organizations requiring enterprise-grade storage performance.
What storage capacity does the Dell H6776 provide?
The Dell H6776 offers 146 GB of storage capacity, making it suitable for dedicated database servers, transaction processing systems, and environments where fast access is prioritized over raw capacity. This capacity level was standard in enterprise SAN and server configurations from the mid-2000s era. Contact us today for availability and compatible server models.
Can the Dell H6776 drive be used as a replacement in older Dell servers?
The Dell H6776 is compatible with Dell PowerEdge servers that support Ultra320 SCSI drives, including models from the 1U and 2U rack-mount families. Before purchasing, verify your server model supports this drive's SCSI interface and physical bay configuration. Our team can help match the correct drive to your legacy server—visit barcodesinc.com or contact us today for compatibility verification.
