Release Year:
2023

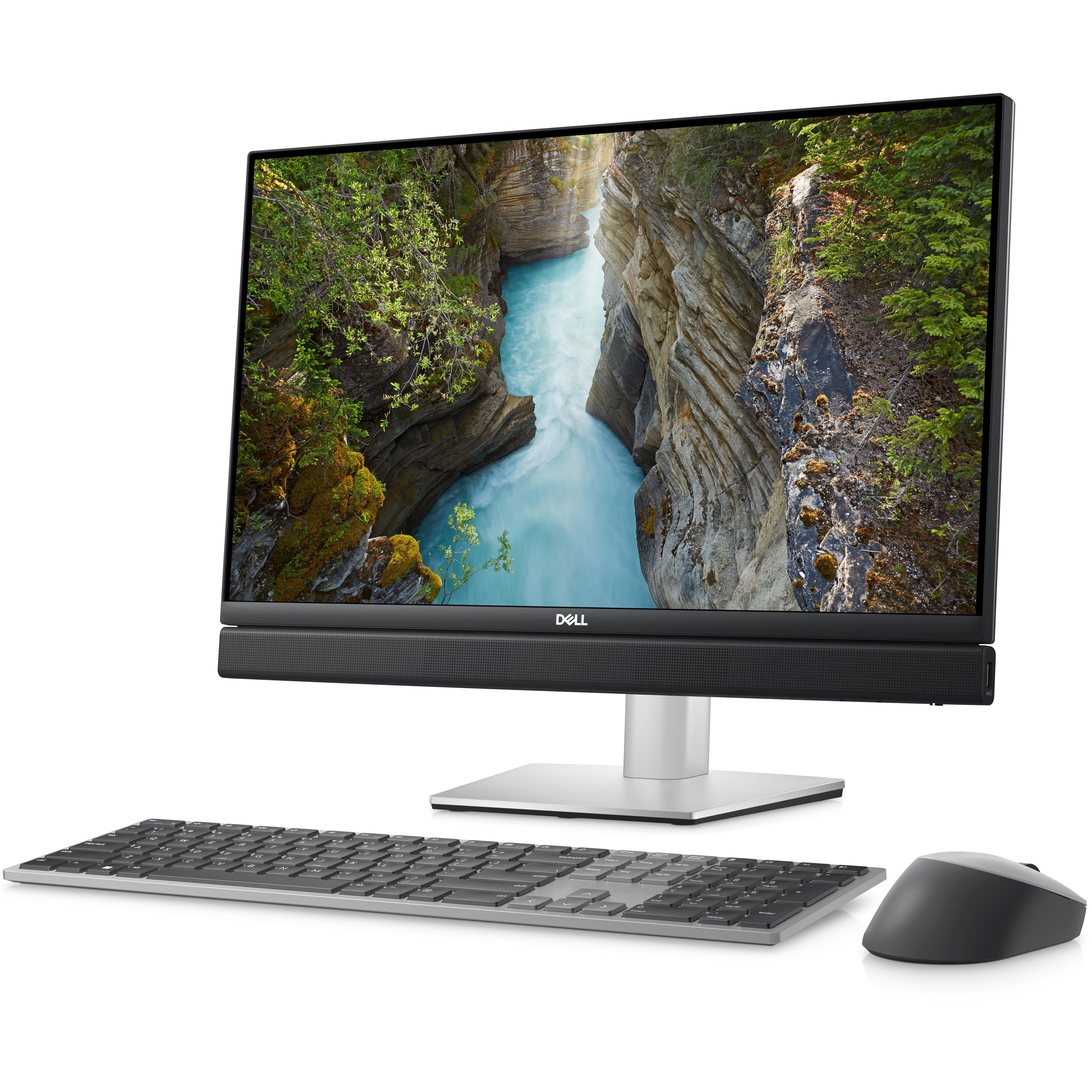

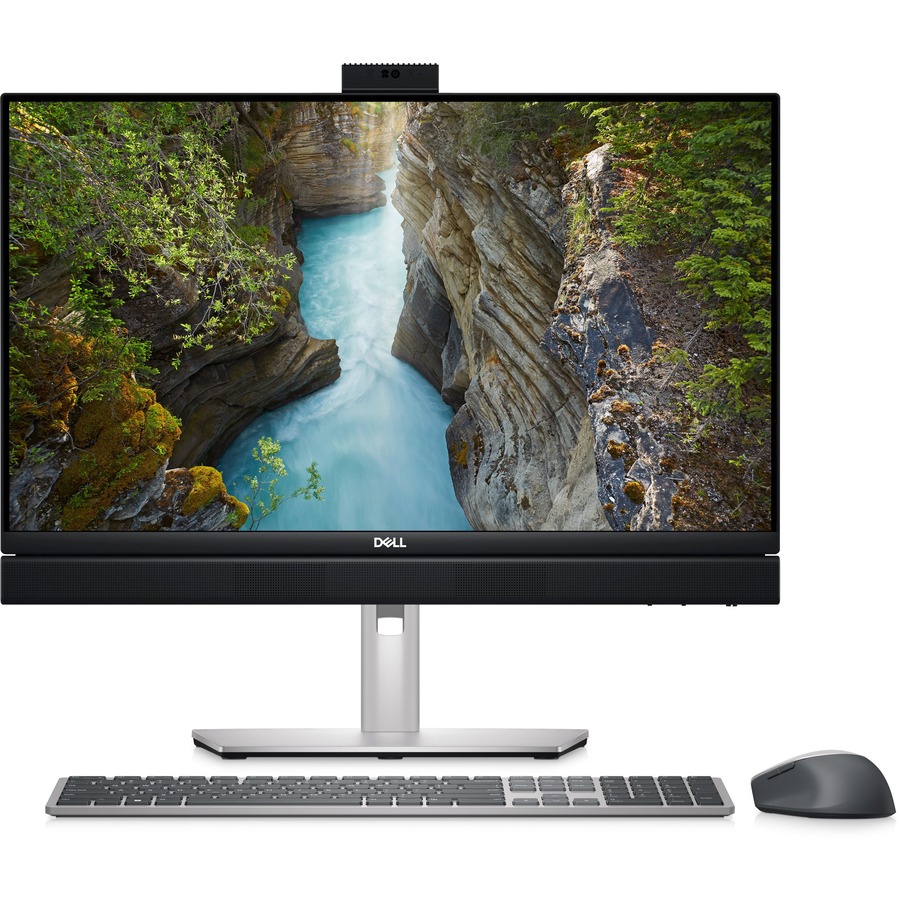

Dell F9N08 Desktop PC
Part Number:
F9N08
Model:
Parts
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i7
Processor Generation:
13th Gen
Processor Model:
i7-13700
Processor Core:
Hexadeca-core (16 Core)
Processor Speed:
2.10 GHz
Maximum Turbo Speed:
5.20 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 16GB
Total Number of Memory Slots:
2.0
Number of Occupied Memory Slots:
1
Storage
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe
SSD Form Factor:
M.2
Display & Graphics
Screen Size:
23.8"
Display Screen Type:
Active Matrix TFT Color LCD
Screen Mode:
Full HD
Screen Resolution:
1920 x 1080
Touchscreen:
No
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
UHD Graphics 770
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Bluetooth:
Yes
Input Devices
Keyboard Localization:
English
Built-in Devices
Webcam:
Yes

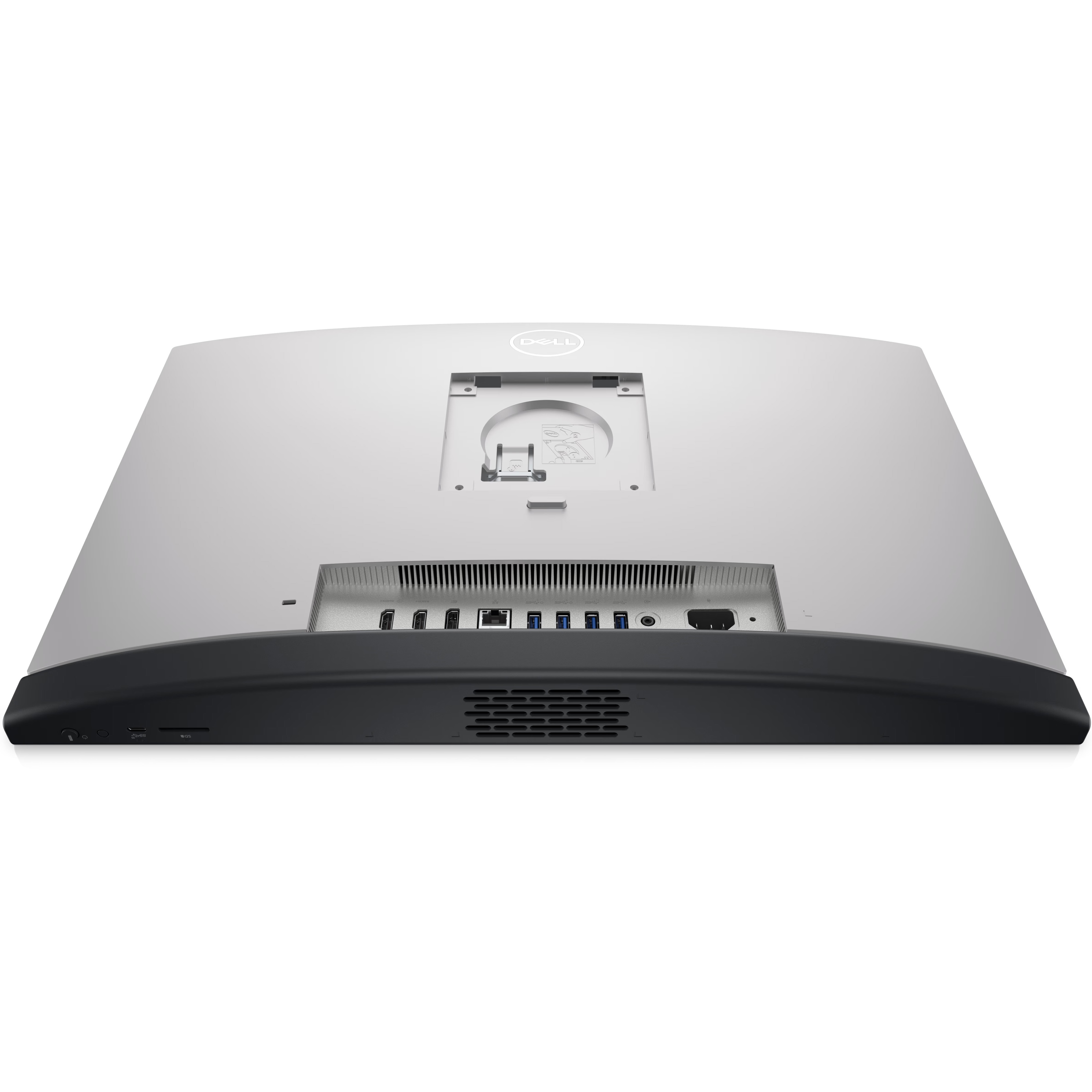

Interfaces/Ports
Number of HDMI Outputs (Rear):
1
HDMI (Rear):
Yes
Total Number of USB Ports:
6
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
3
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
1
DisplayPort (Rear):
Yes
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
160 W
Physical Characteristics
Color Family:
Silver
Product Color:
Silver
Form Factor:
Desktop
Height:
13.9"
Width:
21.3"
Depth:
2.3"
Weight (Approximate):
14.90 lb
Miscellaneous
Package Contents:
- OptiPlex 24 AIO Plus
- Wireless Keyboard
- Wirelss Mouse
- USB Receiver
- Power Cord
- Safety/Environment and Regulatory Guide (English/French Multi-language)
- Quick Start Guide, OptiPlex All-in-One Plus
- Adjustable Stand
Features:
- Security Slot
- Low Blue Light
Energy Star:
Yes
Country of Origin:
Mexico
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Energy Efficiency Compliance:
Korea E-Standby
Environmental Compliance:
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service with Hardware Support-Disti SnS
Item Numbers
UNSPSC:
43211521
Frequently Asked Questions
What are the key specifications of the Dell F9N08 OptiPlex 7410 Plus All-in-One?
The Dell F9N08 features a 13th Gen Intel Core i7-13700 processor with 16 cores running at 2.10 GHz, 16 GB DDR5 SDRAM, and a 512 GB M.2 NVMe SSD for fast performance. It includes a 23.8" Full HD 1920 x 1080 display, Intel UHD Graphics 770, Windows 11 Pro, and a 160 W power supply, making it suitable for professional workstation environments.
Is the Dell F9N08 suitable for warehouse and logistics operations?
Yes, the Dell F9N08 is well-suited for warehouse management and logistics environments. Its powerful 16-core processor, ample DDR5 memory, and fast NVMe storage enable reliable multitasking for inventory management systems, barcode scanning software, and data processing applications. The all-in-one design saves desk space while the Windows 11 Pro operating system ensures compatibility with enterprise logistics software.
What connectivity options does the Dell F9N08 provide?
The Dell F9N08 includes Wi-Fi connectivity and comes with an English keyboard for standard office operations. The all-in-one form factor integrates display and computing into a single unit, reducing cable clutter while maintaining the connectivity needed for barcode scanners, label printers, and other AIDC peripherals commonly used in warehouse environments.
How does the Dell F9N08 compare to previous generation all-in-one systems?
The Dell F9N08 represents a significant upgrade with its 13th Gen Intel Core i7-13700 processor and DDR5 memory, compared to older generations that used lower-generation processors and DDR3 or DDR4 memory. The faster NVMe SSD storage and improved graphics capabilities make it better suited for demanding warehouse management and data-intensive logistics applications.
What operating system does the Dell F9N08 come with?
The Dell F9N08 comes pre-installed with Windows 11 Pro, which provides enterprise-grade security features, compatibility with business software, and support for remote management capabilities essential for IT procurement in warehouse and logistics operations. This professional-grade OS ensures long-term software compatibility and support.
Where can I purchase the Dell F9N08 and get technical support?
We offer the Dell F9N08 desktop computer as part of our comprehensive AIDC product lineup. Contact us today at barcodesinc.com or reach out to our team for pricing, availability, technical specifications, and to discuss how this all-in-one system integrates with your barcode scanning and warehouse management solutions.
