Release Year:
2025
AI-powered:
Yes

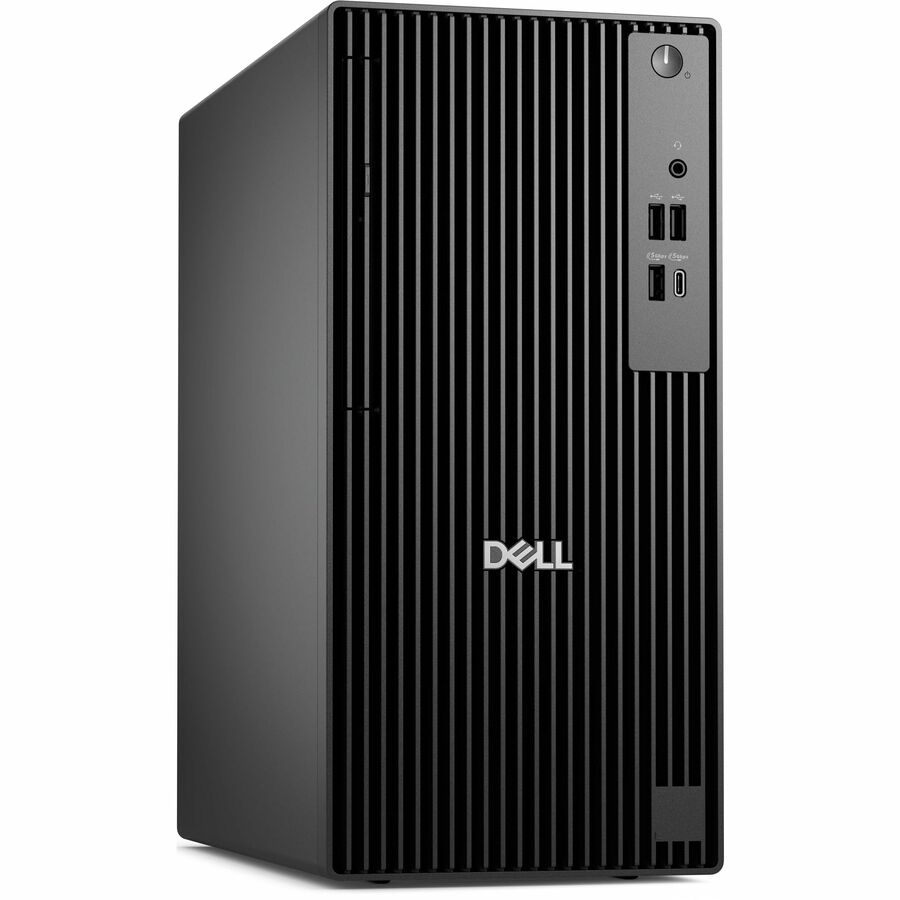

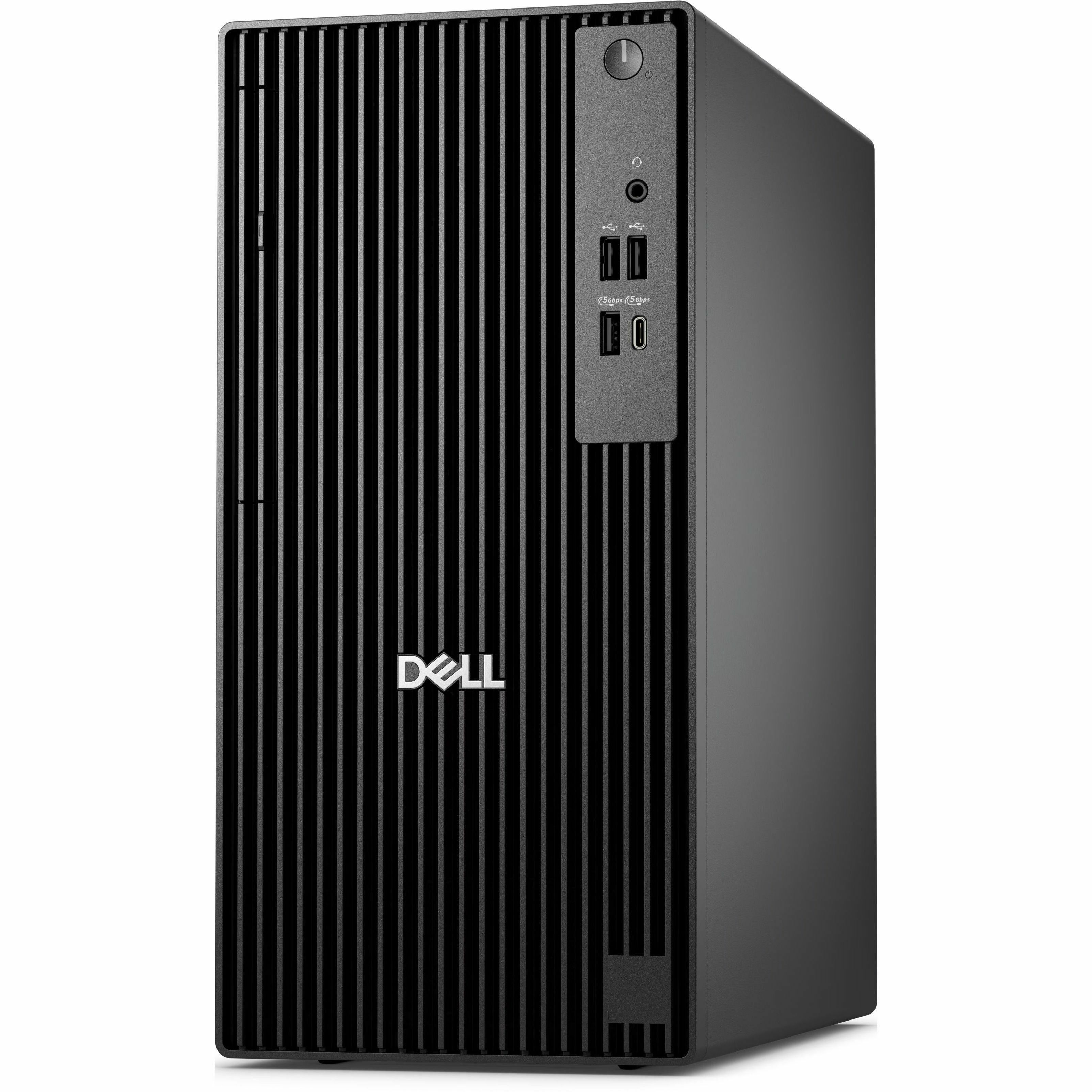

Dell DYWVW Desktop PC
Part Number:
DYWVW
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell DYWVW Desktop PC Overview
Unlock power and performance
Tackle high-performance tasks with ease. Upgrade to AI-enhanced productivity with up to Intel® Core™ Ultra desktop processors (Series 2).
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Generation:
14th Gen
Processor Model:
i5-14500
Processor Core:
Tetradeca-core (14 Core)
Processor Threads:
20
Processor Speed:
2.60 GHz
Maximum Turbo Speed:
5 GHz
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
8 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 8GB
Number of Occupied Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
256 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
No
Input Devices
Keyboard Localization:
English (US)
Interfaces/Ports
Number of HDMI Outputs:
1
HDMI (Rear):
Yes
Total Number of USB Ports:
8
Number of USB 2.0 Ports (Front):
2
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
3
USB Type-C (Front):
Yes
USB Type-C Detail:
USB 3.2 Gen 1 (5 Gbps) Type-C Port
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
1
DisplayPort (Rear):
Yes
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- Serial Port (optional)
- Optional port (Choose 1):
- ?HDMI 2.1, up to 5120 x 3200 @60Hz with Intel®Core™ Ultra (Series 2); up to 4096 x 2160 @60Hz with Intel®Core™ (14th Gen)
- ?DisplayPort 2.1, up to 7680 x 4320 @60Hz with Intel®Core™ Ultra (Series 2); 1.4a, up to 5120 x 3200 @60Hz with Intel®Core™ 14th Gen
- ?VGA, up to 1920 x 1200 @60Hz
- ?USB 3.2 Gen 2 (10 Gbps) Type-C with DisplayPort Alt Mode port, up to 5120 x 3200 @60Hz
- ?2 x USB 3.2 Gen 2 (10 Gbps) Type-A Ports
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
180 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Tower
Height:
12.8"
Width:
6.1"
Depth:
11.5"
Weight (Approximate):
14.95 lb
Miscellaneous
Package Contents:
- Pro Tower QCT1250
- Keyboard
- Mouse
- Quick Start Guide
- Power Cord
- Documentation
Systems Management:
No vPro Support
Features:
Security Slot
Energy Star:
Yes
Country of Origin:
Mexico
TAA Compliant:
No
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS.
Item Numbers
GTIN:
0884116487708
UPC:
884116487708
EAN:
0884116487708
UNSPSC:
43211507
Frequently Asked Questions
What processor and memory does the Dell DYWVW Desktop PC include?
The Dell DYWVW features an Intel Core i5 14th Gen i5-14500 processor with 8 GB of DDR5 SDRAM, delivering solid performance for business and productivity tasks. This configuration provides a good balance of processing power and multitasking capability for warehouse management and logistics applications. Contact us today to explore processor upgrade options if you need additional performance.
Is the Dell DYWVW suitable for warehouse and logistics management software?
Yes, the Dell DYWVW is well-suited for warehouse and logistics operations, featuring Windows 11 Pro, a 256 GB SSD for fast data access, and a 180 W power supply for reliable operation. The tower form factor provides excellent stability and expandability for adding RFID readers, barcode scanners, and other AIDC devices commonly used in warehouse environments. Visit barcodesinc.com to find compatible scanning and data capture equipment to integrate with your Dell system.
What storage options are available on the Dell DYWVW?
The Dell DYWVW comes standard with a 256 GB SSD, which provides fast boot times and application loading compared to traditional hard drives. The tower design allows for additional storage expansion if your warehouse operations require larger data repositories. Our team can help you configure the right storage solution for your AIDC and inventory management needs.
What connectivity ports does the Dell DYWVW offer for barcode scanners and peripherals?
The Dell DYWVW supports multiple connectivity options including USB ports, HDMI, and network connectivity via RJ-45 Ethernet, making it compatible with standard barcode scanners, label printers, and mobile data terminals. The tower form factor provides ample rear panel access for connecting AIDC devices and peripherals without cable management issues. Contact us today to ensure your specific scanning and printing equipment will integrate seamlessly with this system.
Does the Dell DYWVW meet energy efficiency standards?
Yes, the Dell DYWVW is ENERGY STAR certified and features a 180 W power supply designed for efficient operation, helping reduce power consumption in your warehouse facility. Energy-efficient systems like this one lower operating costs while maintaining the performance needed for logistics and inventory management tasks. Visit barcodesinc.com to discuss energy-efficient computing solutions for your entire operation.
What is the warranty coverage for the Dell DYWVW?
The Dell DYWVW includes a 1-year limited warranty covering parts, labor, and on-site repair service. This standard warranty provides protection for your investment during the critical first year of operation. Our team can discuss extended warranty options and support plans to keep your system running reliably throughout its lifecycle.
