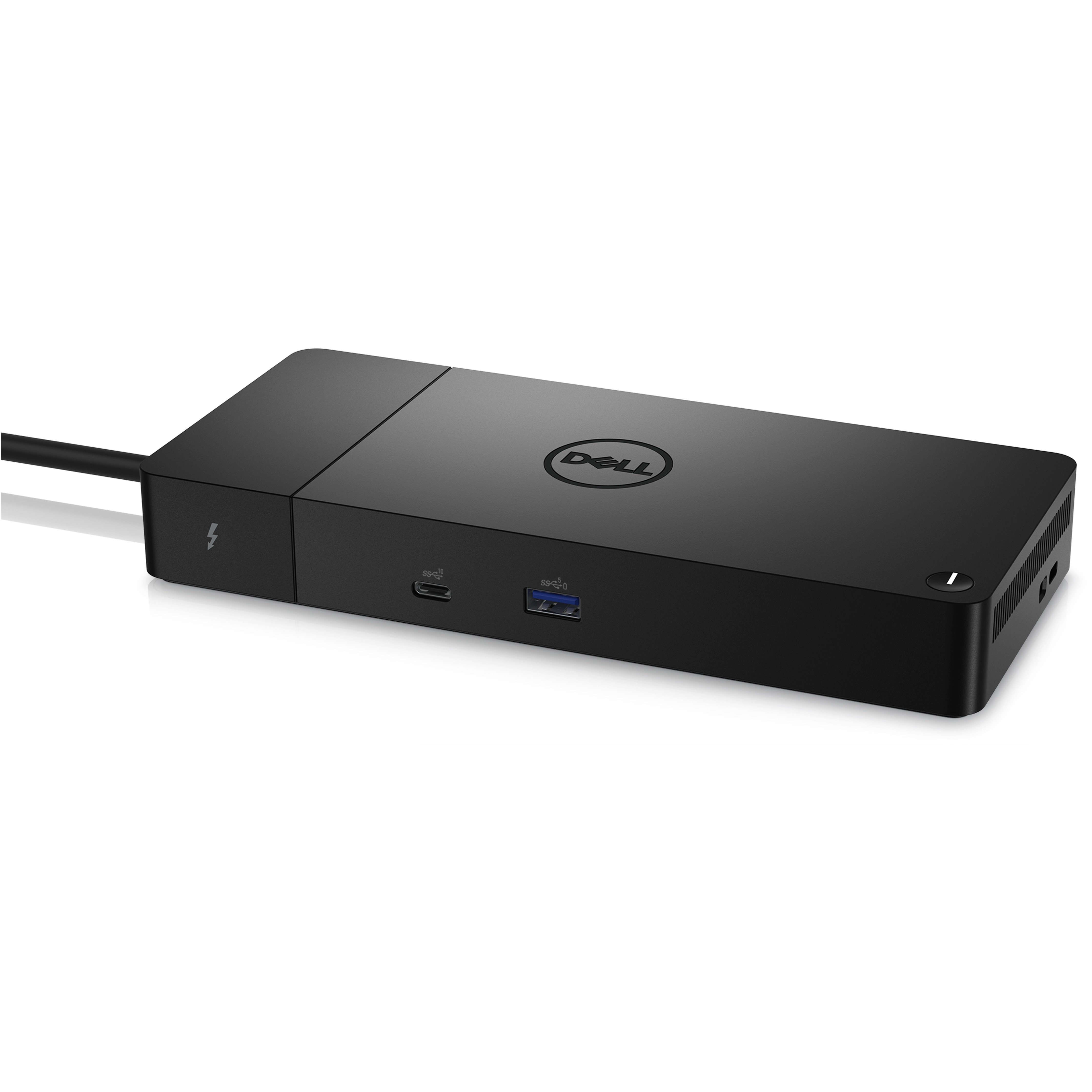

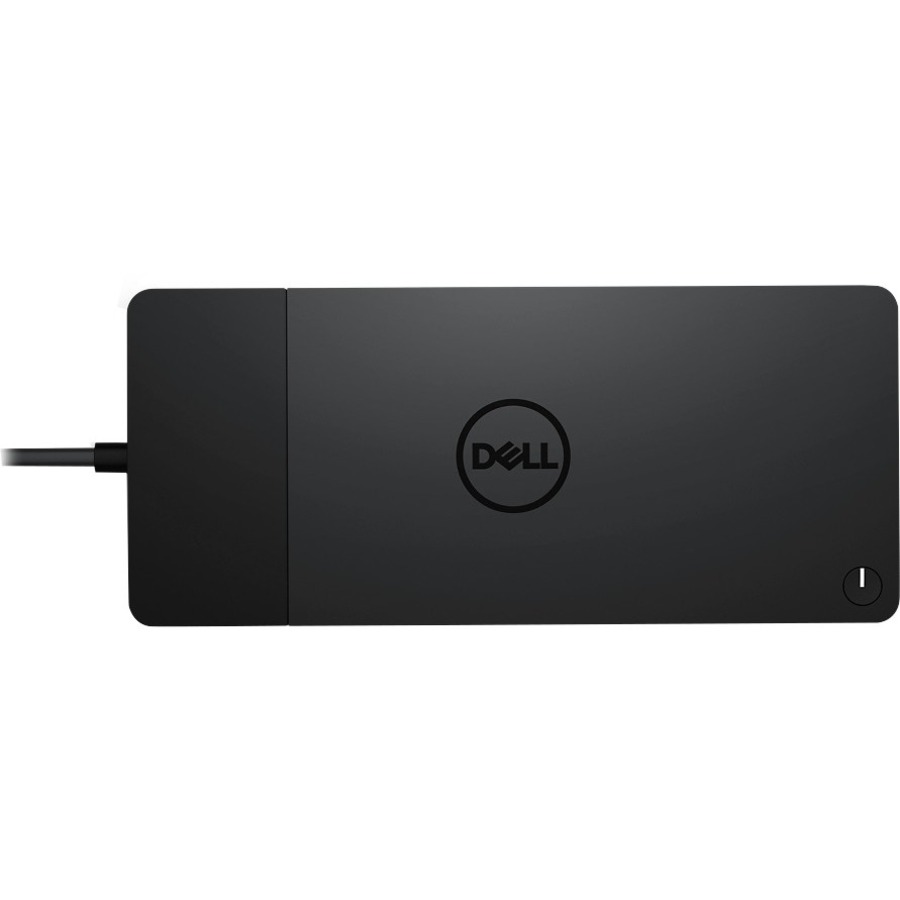

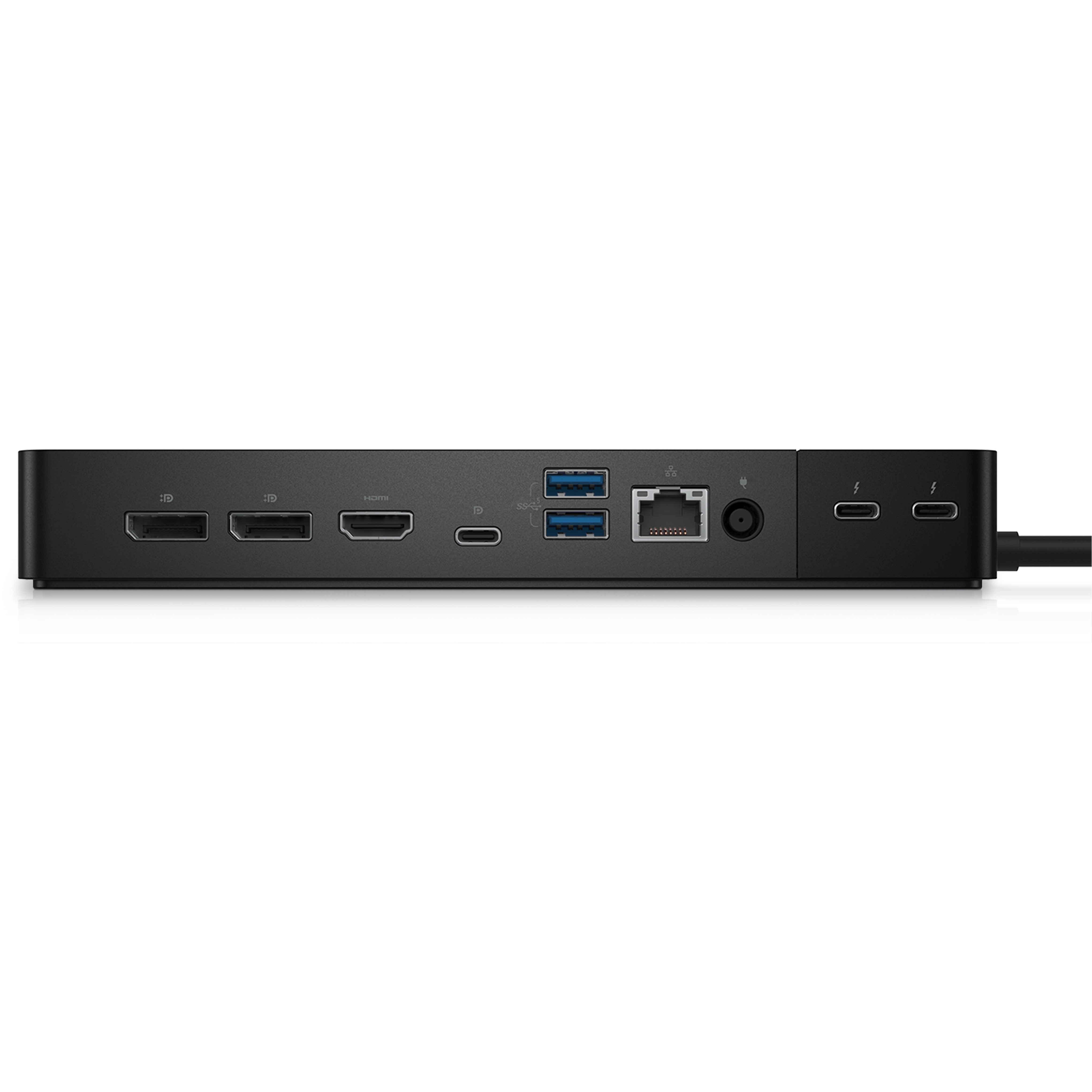

Dell DELL-WD22TB4 Computer Docking Station

Part Number: DELL-WD22TB4
Model: Parts
$569.11
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wired
Charging Capability
Yes
Device Supported
Notebook
Number of Displays Supported
2

Product Description:

  Dell Thunderbolt Dock - WD22TB4 - for Notebook - Charging Capability - 180 W - Thunderbolt 4 - 2 Displays Supported - 5K, 4K - 5120 x 2880, 3840 x 2160 - 3 x USB Type-A Ports - USB Type-A - 3 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - 2 x DisplayPorts - DisplayPort - Black - Thunderbolt - Wired - Gigabit Ethernet - Windows 10, Windows 11, Ubuntu 20.04

Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview

Products and parts from Dell.
Dell DELL-WD22TB4 Computer Docking Station Overview

ExpressCharge technology

You'll experience power delivery of up to 130W on Dell devices with ExpressCharge technologyi that enables:

  • 80% charge in one hour
  • 35% charge in just 20 minutes

Future-made design

  • Swappable module lets you upgrade with ease to meet the needs of your IT environment.
  • Upgrade to get the latest in connectivity with not one but two Thunderbolt™ 4 ports for even more flexibility.

Multiply productivity

Connect displays and peripherals to your system with a single cable for ultimate productivity.
Thunderbolt™ 4 dock with the highest number of ports connects multiple 4K displays and Thunderbolt peripherals allowing you to not compromise with your work setup. Get the maximum from your peripherals with data transfer of 40 GB/s.

Intelligent and simple management |
Work without disruption: Firmware updates can be completed in five to seven minutes without needing to reboot the system.

Easier for IT: Dell Client Command Suite and Microsoft System Center Configuration Manager offers a smoother firmware update experience. You can also streamline deployment and management with a single firmware.

Easier upgrades: Modularity allows for simple field replacement of the power cable or connectivity module.

Better support: Inventory management got easier since each has its own service tag, allowing IT to push firmware updates only to certain dock.

Secure manageability:
Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN, and more, it's easier than ever to stay productive while managing your dock.

Technical Information
Connectivity Technology:
Wired
Charging Capability:
Yes
Device Supported:
Notebook
Number of Displays Supported:
2
Screen Mode Supported:
  • 5K
  • 4K
Supported Resolutions:
  • 5120 x 2880
  • 3840 x 2160
Maximum Data Transfer Rate:
5 GB/s
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Host Interface:
Thunderbolt 4
USB Type-A:
Yes
Number of USB 3.2 Gen 1 Type-A Ports:
3
Number of USB Type-A Ports:
3
USB Type-C:
Yes
USB Type-C Detail:
USB-C Multifunction DisplayPort
Number of USB Type-C Ports:
3
Network (RJ-45):
Yes
Number of RJ-45 Ports:
1
Number of VGA Outputs:
0
DisplayPort:
Yes
Number of DisplayPorts:
2
DisplayPort Version:
1.4
HDMI:
Yes
Number of HDMI Ports:
1
HDMI Version:
2
Thunderbolt:
Yes
Thunderbolt Ports Quantity:
2
Software
Operating System Supported:
  • Windows 10
  • Windows 11
  • Ubuntu 20.04
Power Description
Maximum Power Supply Wattage:
180 W
Power Source Type:
Power Adapter
Power Supply Input:
DC jack (7.4mm)
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
1.10"
Width:
8.10"
Depth:
3.50"
Weight (Approximate):
15.87 oz
Miscellaneous
Kensington Security Slot:
Yes
Brand Compatibility:
Dell
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Hardware Service with Advanced Exchange-Disti SnS
Item Numbers
GTIN: 0884116420064, 5397184635629
UPC: 884116420064
EAN: 0884116420064, 5397184635629
UNSPSC: 43211602
