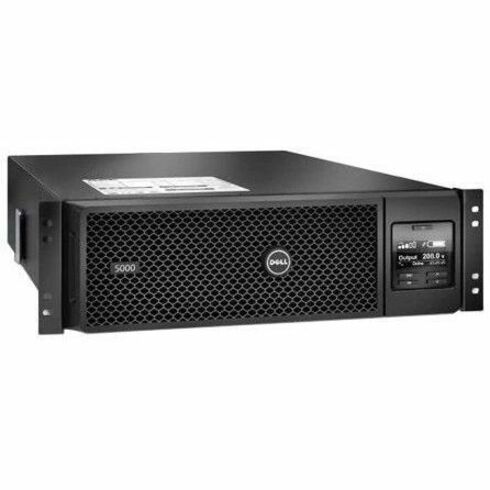

Dell A8572199 UPS

Part Number: A8572199
Model: Parts
$8,844.28

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L6-30P
Receptacle Type
NEMA L6-20RNEMA L6-30R
Receptacle Detail
2 x NEMA L6-20R2 x NEMA L6-30R
Number of Battery & Surge Outlets
4

Product Description:

  Dell Smart-UPS On-Line 5000VA Rack/Tower UPS - 3U Rack/Tower - 4.40 Minute Stand-by - 230 V AC, 120 V AC Input - 208 V AC, 240 V AC Output - Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s) - 4 x Battery/Surge Outlet - SNMP/Telnet/HTTP/RS-232, SNMP/Modbus, SmartSlot

Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview

Products and parts from Dell.
Dell A8572199 UPS Overview

The Dell Smart-UPS Online DLRT5KRMXLT provides instant battery power to your critical electronic devices, keeping you and your business productive even during power outages. It delivers high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. All 4 outlets provide battery backup power and safeguard your expensive electronics from potentially harmful power conditions such as spikes and surges.

  • Provides instant, clean power to your critical electronic devices during a power outage
  • Four battery and surge protected outlets ensure all of your critical electronics will be backed-up and protected
  • Two switched outlet groups allow you to reboot hung equipment, automatically shed less critical equipment, and sequence both the startup and shutdown of attached equipment
  • The pure sine wave output while online or on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
  • Green Mode bypasses unused electrical components to achieve high operating efficiency without sacrificing power protection
  • Intuitive LCD panel provides Smart-UPS and power status at a glance
Technical Information
Plug/Connector Type:
NEMA L6-30P
Receptacle Type:
  • NEMA L6-20R
  • NEMA L6-30R
Receptacle Detail:
  • 2 x NEMA L6-20R
  • 2 x NEMA L6-30R
Number of Battery & Surge Outlets:
4
Application/Usage:
  • Electronic Device
  • Business
  • Server
  • Voice/Data Network
  • Medical Laboratory
  • Light Industrial Application
  • Mission Critical Equipment
  • Electronic Equipment
Surge Suppression:
Yes
Features:
  • Audible Alarm
  • Battery Management System (BMS)
Power Description
Load Capacity (VA):
5000 kVA
Load Capacity (Watt):
4800 W
Input Voltage:
  • 230 V AC
  • 120 V AC
Input Voltage Range:
100 V AC - 275 V AC
Output Voltage:
  • 208 V AC
  • 240 V AC
Input Frequency:
  • 40 Hz
  • 70 Hz
Output Frequency:
  • 50 Hz
  • 60 Hz
Waveform Type:
Sine Wave
Display & Graphics
Display:
LCD
Management
Network Management:
  • SNMP/Telnet/HTTP/RS-232
  • SNMP/Modbus
  • SmartSlot
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
USB:
Yes
EPO Port:
Yes
Expansion Slot Detail:
1 (total) / 1 (free) x SmartSlot
Battery Information
Battery Characteristics:
Maintenance-free, Sealed, Leak-proof
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
4.40 Minute
Backup/Run Time (Half Load):
12.60 Minute
Physical Characteristics
Height:
5.1"
Width:
17"
Depth:
28.3"
Rack Height:
3U
Form Factor:
Rack/Tower
Weight (Approximate):
120.15 lb
Miscellaneous
Package Contents:
  • Smart-UPS On-Line 5000VA Rack/Tower UPS
  • Tower Stand
  • Rack Mounting Kit
Certifications & Standards:
  • cUL
  • UL 1778
  • FCC Part 15 A
Software Included:
APC PowerChute
Energy Star:
Yes
Warranty
Limited Warranty:
3 Year
Directly Connected Equipment Guarantee:
$150000
Item Numbers
UNSPSC: 39121011
