Release Year:
2024
Dell 94W75 Desktop PC
Part Number:
94W75
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

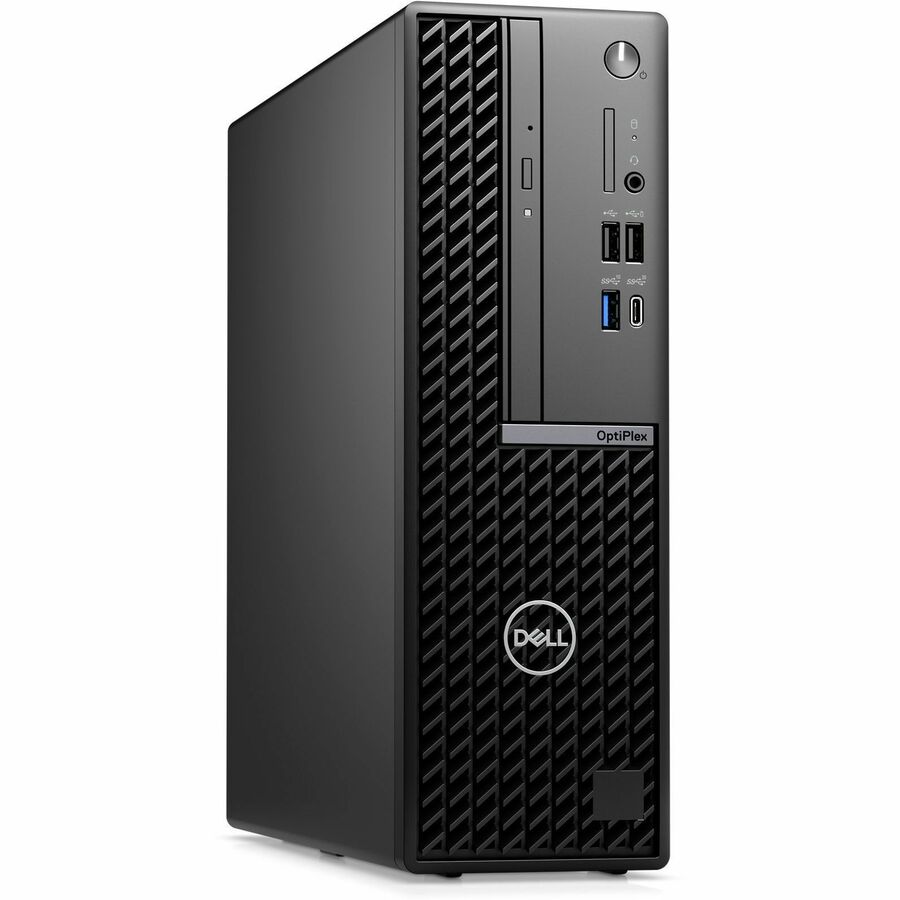

Dell 94W75 Desktop PC Overview
Designed for flexible performance options in the slimmest footprint possible, the OptiPlex Small Form Factor provides a clean desk solution while being highly expandable with no compromise on port options. Features an Intel Core processor, three native DisplayPorts, three M.2 SSD slots and a USB-C 3.2 Gen 2x2 (20 Gbps) port.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Generation:
14th Gen
Processor Model:
i5-14500
Processor Core:
Tetradeca-core (14 Core)
Processor Threads:
20
Processor Speed:
2.60 GHz
Maximum Turbo Speed:
5 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
2 x 8GB
Total Number of Memory Slots:
4
Number of Occupied Memory Slots:
2
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Optical Drive Type:
DVD-Writer
Optical Media Supported:
DVD±R/±RW
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
UHD Graphics 770
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
No
Input Devices
Keyboard Localization:
English (US)

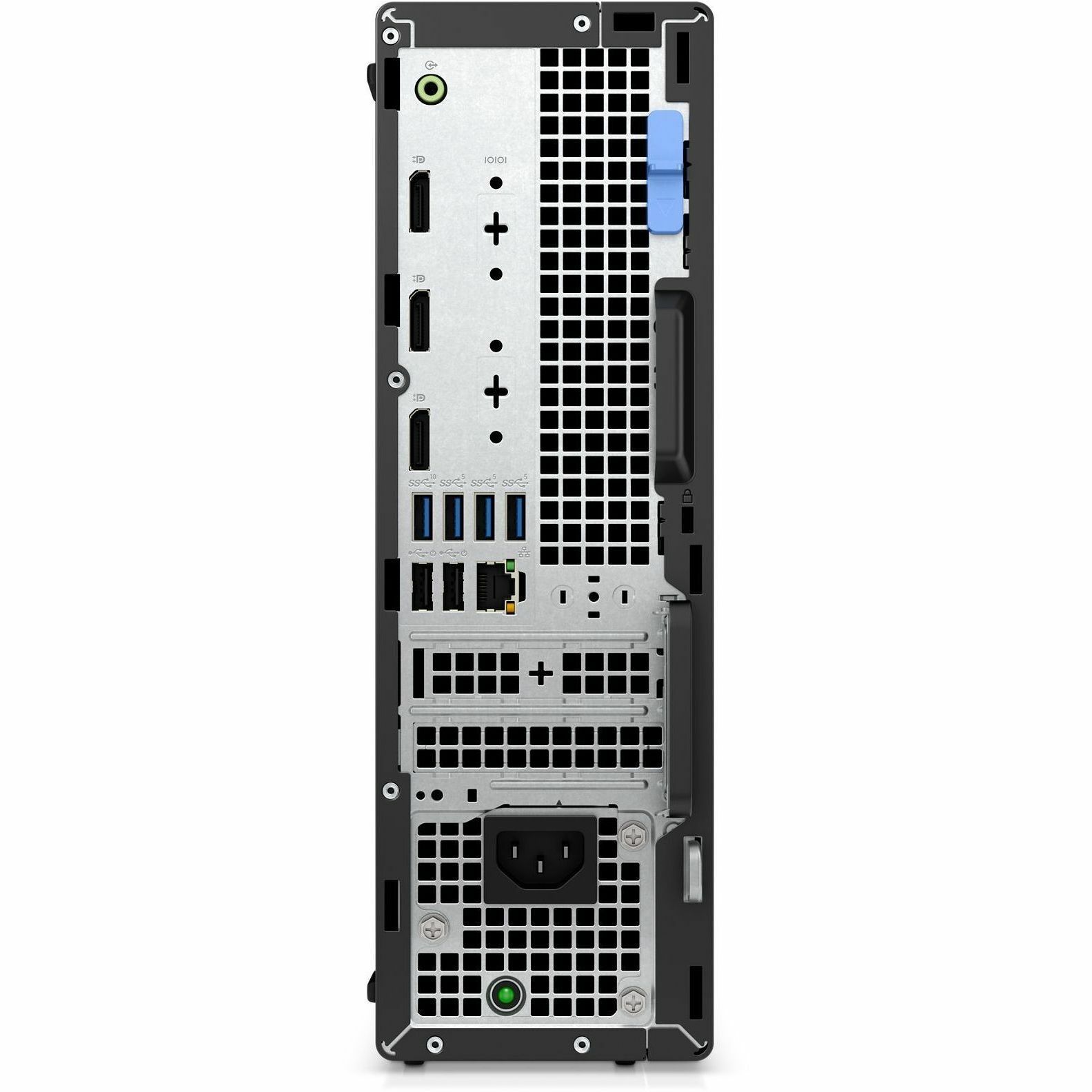

Interfaces/Ports
Number of HDMI Outputs (Rear):
1
HDMI (Rear):
Yes
Total Number of USB Ports:
10
Number of USB 2.0 Ports (Front):
2
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
3
Number of USB 3.2 Gen 2 Ports:
2
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
3
DisplayPort (Rear):
Yes
Optional Ports:
1 Video Port (HDMI 2.1/DisplayPort™ 1.4a/VGA/USB Type-C with DisplayPort™ Alt mode) (optional) 1 Serial Port (optional)
Details regarding optional ports aggregated from the information available for this product's family/series
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
260 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Small Form Factor
Height:
11.4"
Width:
3.7"
Depth:
11.5"
Weight (Approximate):
12.39 lb
Miscellaneous
Package Contents:
- OptiPlex Small Form Factor (Plus 7020)
- Quick Start Guide
- System Power Cord (US)
- Safety/Environment And Regulatory Guide (English/French Multi-language)
- Wireless Mouse
- Wireless Keyboard
- USB Receiver
Features:
Security Slot
Energy Star:
Yes
Country of Origin:
Mexico
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Energy Efficiency Certification:
ENERGY STAR 8.0
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116462231
UPC:
884116462231
EAN:
0884116462231
UNSPSC:
43211507
Frequently Asked Questions
What processor does the Dell 94W75 OptiPlex 7020 Plus come with?
The Dell 94W75 features an Intel Core i5 14th Gen i5-14500 processor with vPro Technology, delivering reliable performance for business computing tasks. This processor is ideal for warehouse management systems, inventory tracking, and enterprise applications. We offer this model configured and ready for deployment in your organization.
Is the Dell 94W75 suitable for logistics and warehouse management applications?
Yes, the Dell 94W75 OptiPlex 7020 Plus is well-suited for logistics and warehouse environments with its Small Form Factor design, 16GB DDR5 SDRAM memory, and 512GB SSD storage for fast data access. The Intel UHD Graphics 770 supports multiple display configurations for warehouse management software and barcode scanning applications. Contact us today to configure this system for your specific logistics operations.
What operating system and security features does this Dell desktop include?
The Dell 94W75 comes with Windows 11 Pro, which provides enterprise-grade security and management capabilities for IT procurement environments. The Intel vPro Technology enables advanced remote management and security features, making it ideal for organizations requiring centralized IT control and compliance. We can assist with deployment and licensing options for your warehouse operations.
What are the connectivity and expansion options on the Dell 94W75?
The Dell 94W75 OptiPlex 7020 Plus includes multiple connectivity options with standard USB ports, HDMI output, and network connectivity for integration with warehouse management systems and barcode scanning equipment. The Small Form Factor design maintains a compact footprint while supporting necessary peripherals for logistics operations. Visit barcodesinc.com to explore compatible accessories and docking solutions available from us.
Does the Dell 94W75 meet environmental and energy efficiency standards?
The Dell 94W75 is designed with environmental responsibility in mind and features a 260W power supply for efficient operation in warehouse facilities. The system supports Energy Star compliance standards, helping reduce operational costs in logistics environments. Contact us today for detailed environmental specifications and energy efficiency documentation.
What warranty and support options are available for the Dell 94W75?
Dell provides comprehensive warranty coverage and support options for the OptiPlex 7020 Plus series, with various service levels available to meet your organization's needs. We offer extended warranty and support packages tailored for warehouse and logistics operations. Contact us today to discuss warranty options and technical support plans that best fit your procurement requirements.
