Dell 90M6R Desktop PC
Part Number:
90M6R
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

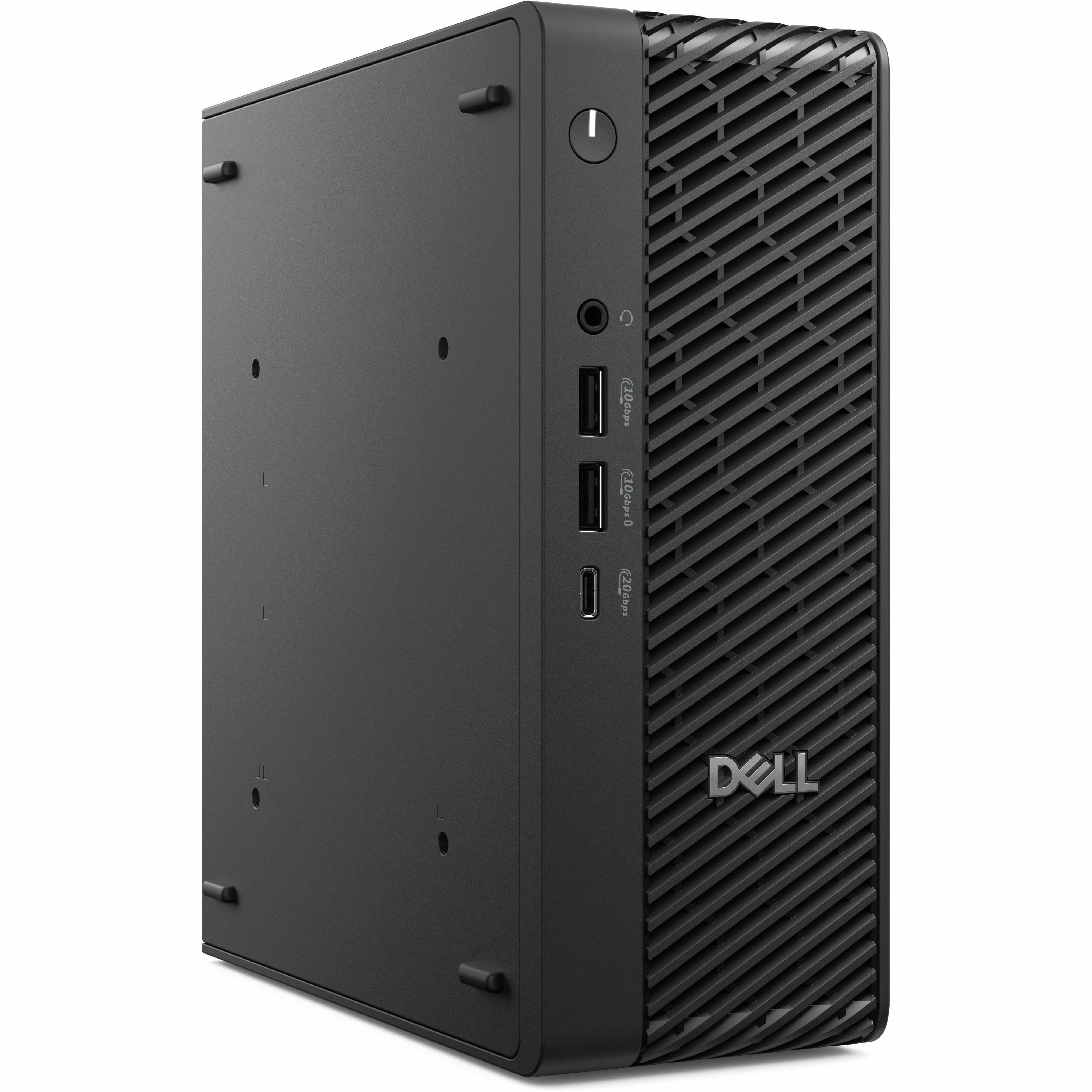

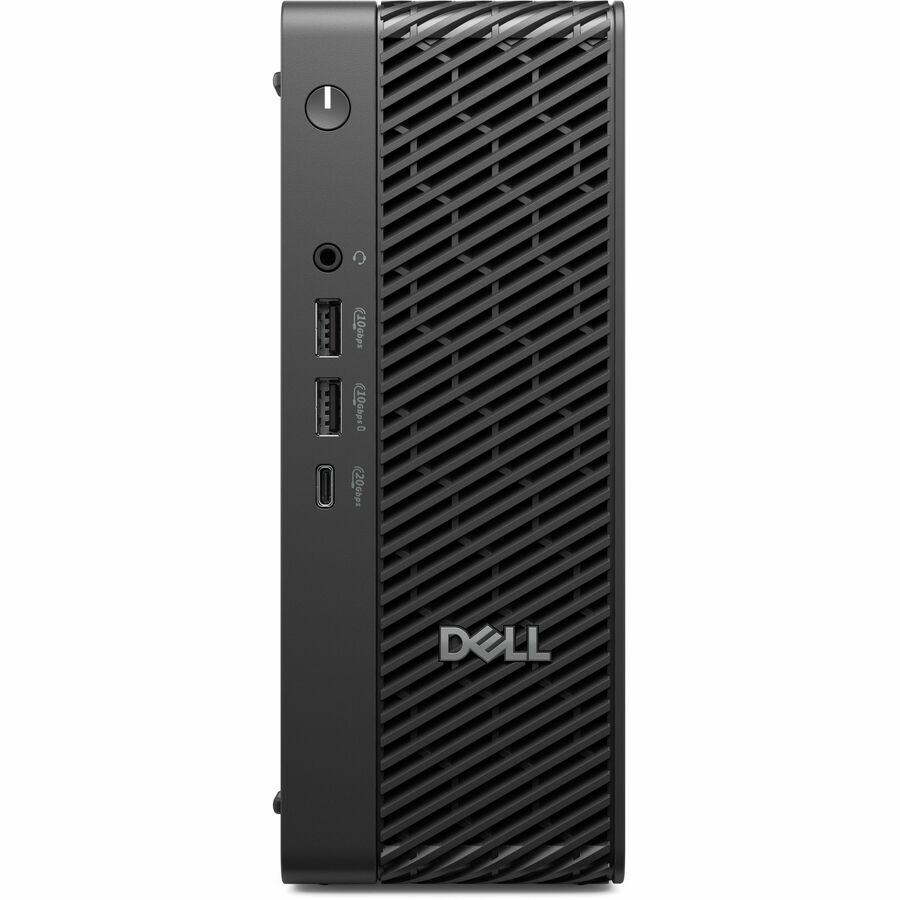

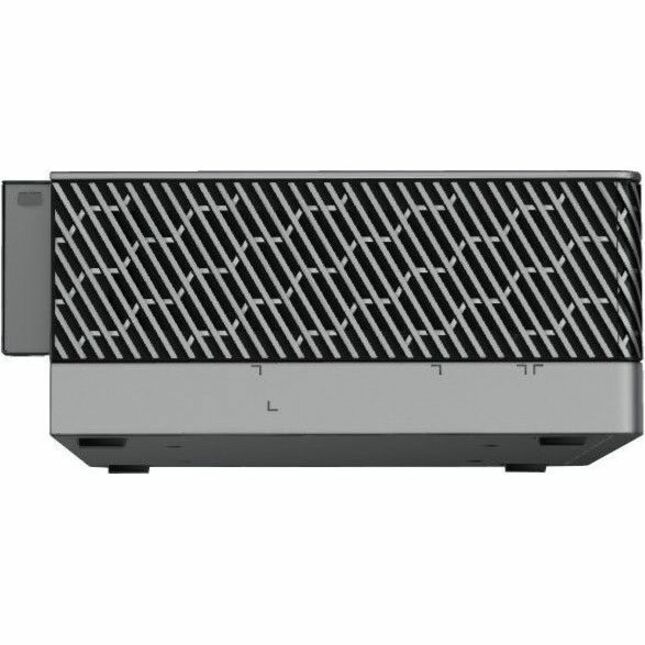

Dell 90M6R Desktop PC Overview
Dell Pro Max Micro Desktop
Engineered for those who demand exceptional power without sacrificing space, the Dell Pro Max Micro delivers top-tier speed and efficiency in a sleek, space-saving design.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 5
Processor Model:
235
Processor Core:
Tetradeca-core (14 Core)
Processor Threads:
14
Processor Speed:
2.90 GHz
Maximum Turbo Speed:
5 GHz
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 16GB
Number of Occupied Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
No
Input Devices
Keyboard Localization:
English (US)

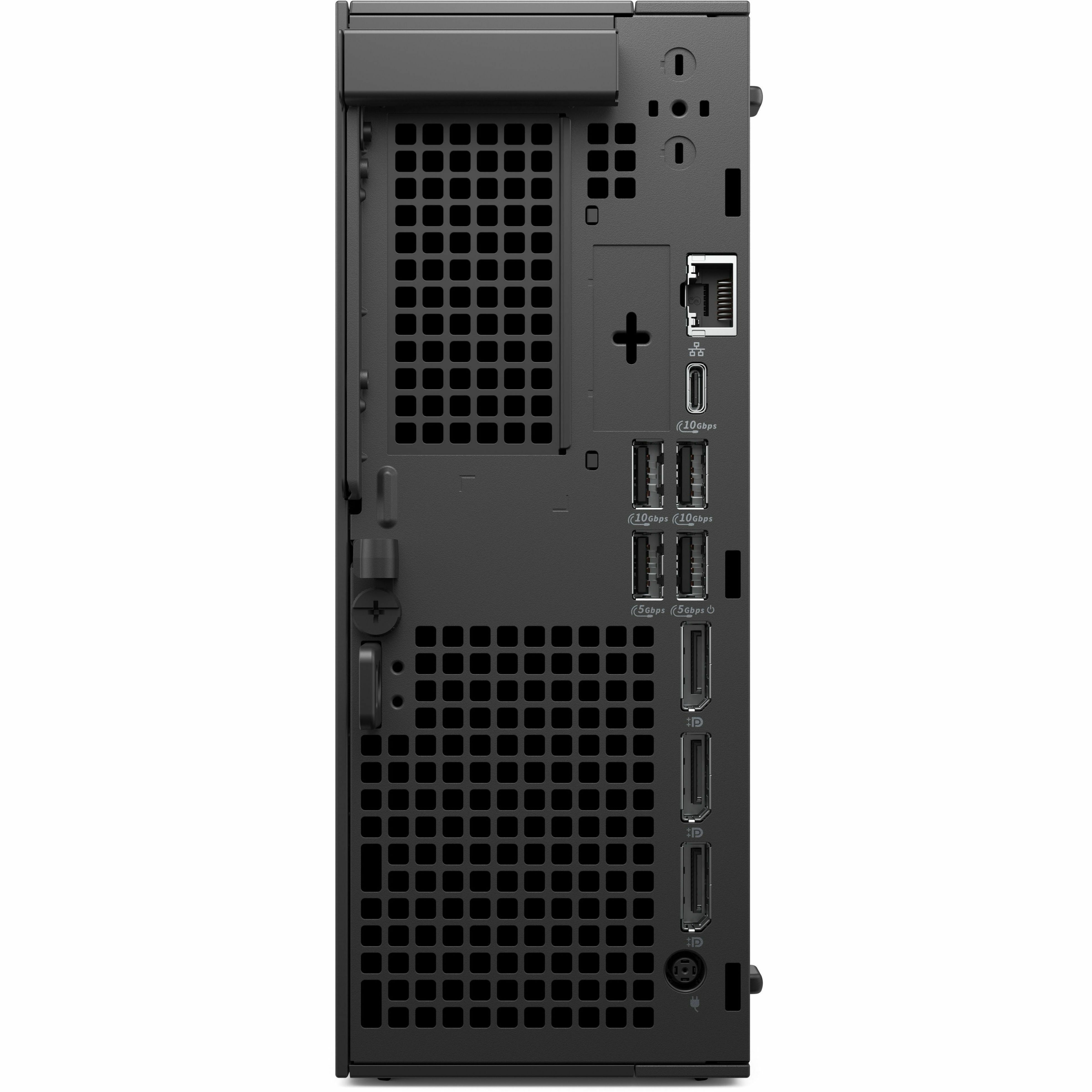

Interfaces/Ports
Total Number of USB Ports:
8
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
4
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
USB Type-C (Rear):
Yes
USB Type-C Detail:
1 USB 3.2 Gen 2 (10 Gbps) Type-C® port;
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
3
DisplayPort (Rear):
Yes
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 optional module port (VGA/HDMI 2.1 FRL/DisplayPort™ 2.1 (UHBR20)/Serial/PS2/USB Type C®with DisplayPort™ Alt Mode/2 USB Type-A/Thunderbolt 4 + USB Type-C®/5G Optical Fiber/5GbE LAN NIC)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
180 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Micro PC
Height:
8.1"
Width:
3.1"
Depth:
7"
Weight (Approximate):
5.60 lb
Miscellaneous
Package Contents:
- Pro Max Micro FCM2250
- Mouse
- Keyboard
- US Power Cord
- AC Adapter
- Quick Setup Guide
Systems Management:
Intel vPro Management Disabled
Features:
Security Slot
Energy Star:
Yes
Country of Origin:
Mexico
TAA Compliant:
No
TCO Certified:
Yes
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116487944
UPC:
884116487944
EAN:
0884116487944
UNSPSC:
43211507
Frequently Asked Questions
What are the processor and memory specifications of the Dell 90M6R Desktop PC?
The Dell 90M6R features an Intel Core Ultra 5 235 processor with 16 GB of Intel DDR5 SDRAM, providing solid performance for warehouse management and logistics applications. This configuration delivers reliable multitasking capabilities for demanding AIDC and inventory management software.
What storage options are available for the Dell 90M6R?
The Dell 90M6R comes standard with a 512 GB SSD, offering fast boot times and application loading for warehouse operations. The system supports various storage configurations to meet different organizational needs, and we can help you select the right capacity for your logistics workflows.
Is the Dell 90M6R suitable for warehouse and logistics environments?
Yes, the Dell 90M6R is well-suited for warehouse and logistics operations with its compact Micro PC form factor and Windows 11 Pro operating system. The system's robust specifications support barcode scanning software, inventory management platforms, and other AIDC applications commonly used in distribution centers.
What connectivity options does the Dell 90M6R provide?
The Dell 90M6R includes standard network connectivity via RJ-45 Ethernet connector, along with USB ports and HDMI output for peripheral connections. These connectivity options enable seamless integration with barcode scanners, label printers, and other warehouse automation devices available from us.
What operating system does the Dell 90M6R run?
The Dell 90M6R comes pre-installed with Windows 11 Pro and includes an English (US) keyboard. This enterprise-grade operating system provides security features and compatibility with professional warehouse management and AIDC software solutions.
What is the power consumption of the Dell 90M6R?
The Dell 90M6R features a 180 W power supply, making it energy-efficient for continuous warehouse operations. This power rating is suitable for desktop environments where the system will be connected to standard office or facility electrical infrastructure.
