Dell 8GP0F Server

Part Number: 8GP0F
Model: Parts
Add to My Shopping List Add to Compare
$14,840.72
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
1
Processor Type
Xeon Silver
Processor Model
4410Y

Product Description:

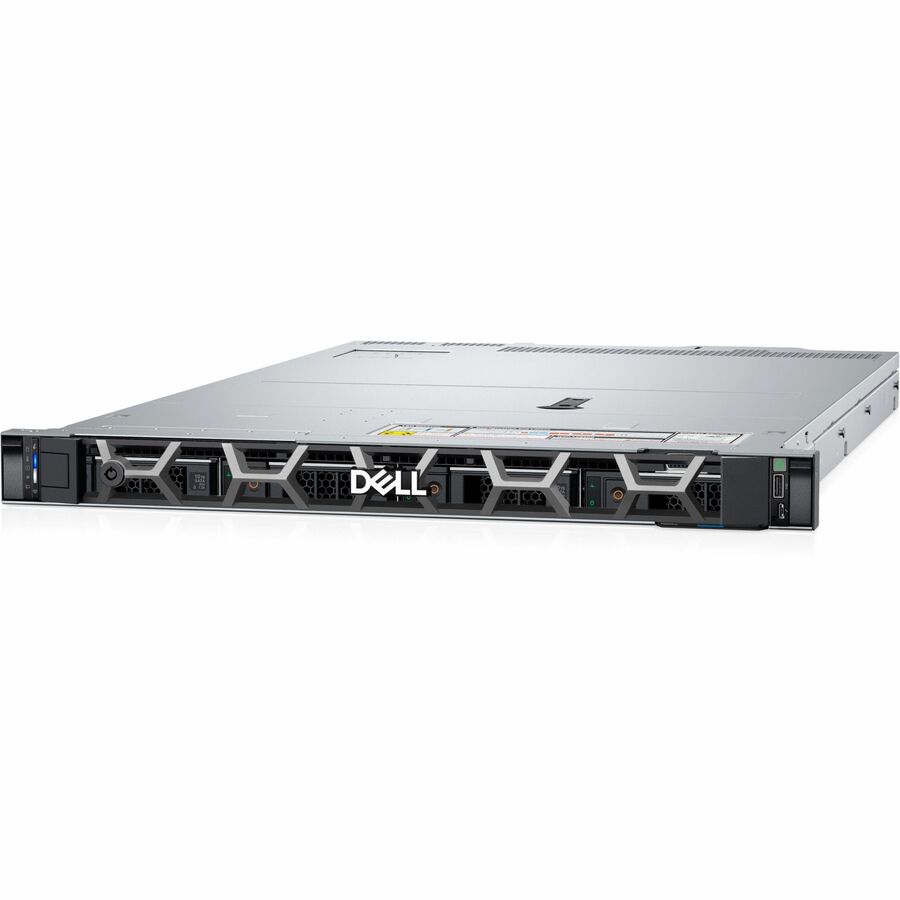

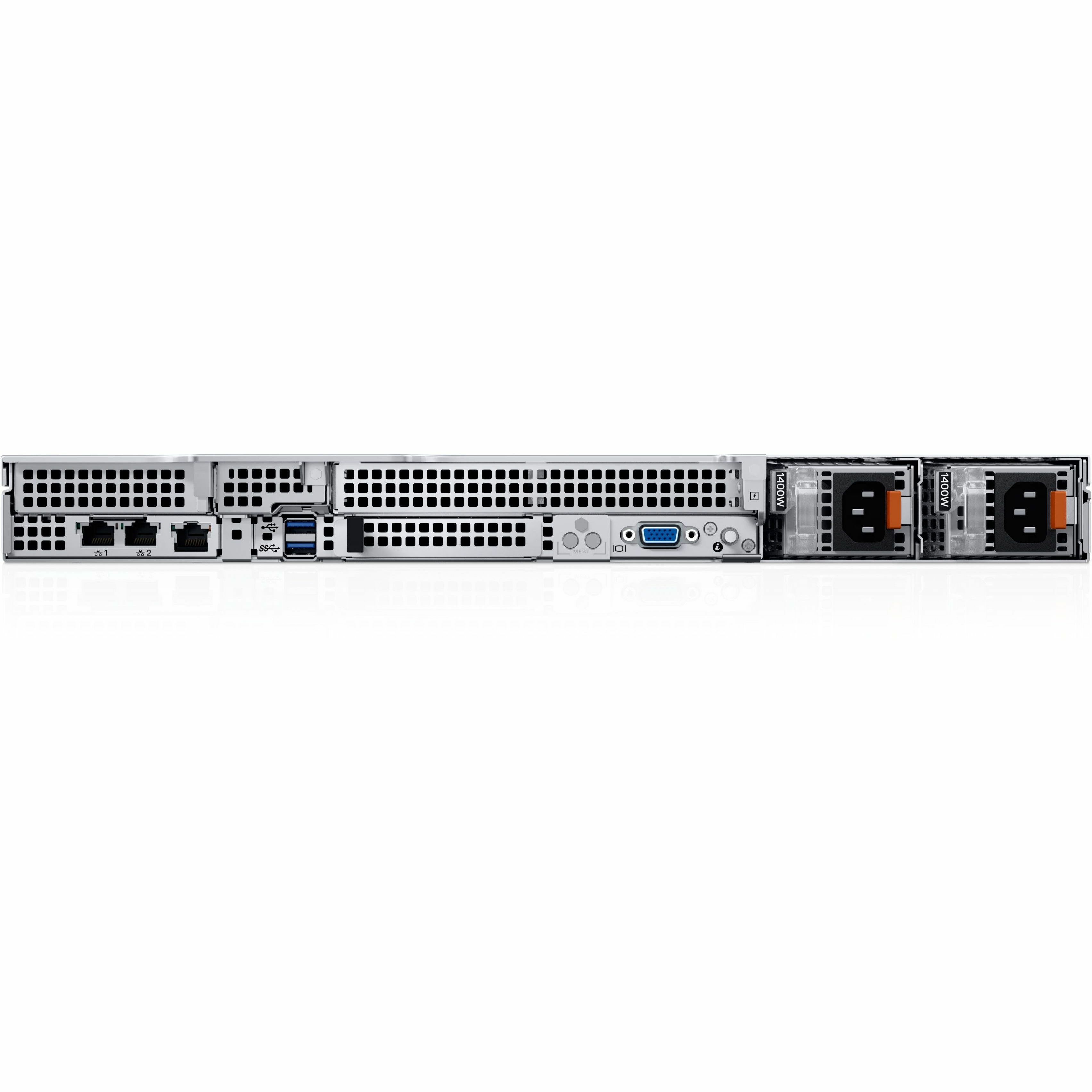

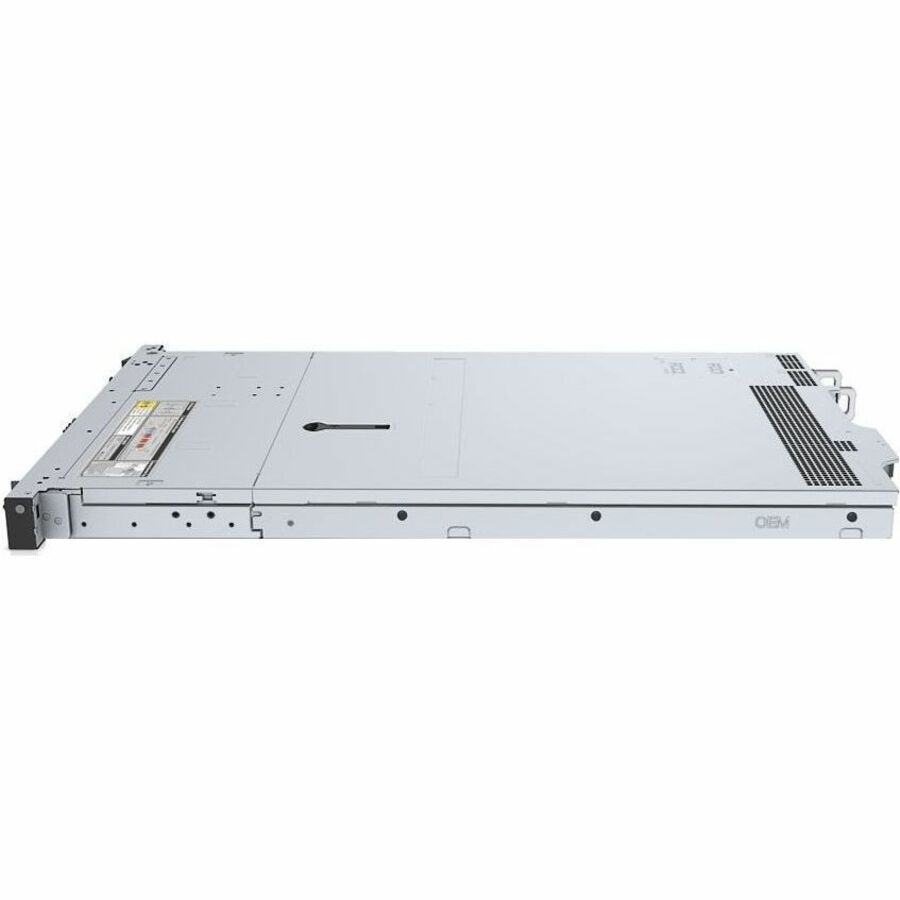

  Dell PowerEdge R660xs 1U Rack-mountable Server - 1 Xeon Silver 4410Y 2 GHz - 32 GB RAM - 480 GB SSD - Intel Chip - 2 Processor Support - 1.50 TB RAM Support - DDR5 SDRAM - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - 2 x 800 W - Redundant Power Supply
Explore all Dell Misc Parts ACCESSORIES & MISC. ITEMs
Add to Quote
Dell 8GP0F Server
Dell 8GP0F Server
Dell 8GP0F Server
Dell 8GP0F Server
Dell 8GP0F Server
Dell 8GP0F Server
Dell 8GP0F Server Dell 8GP0F Server Dell 8GP0F Server Dell 8GP0F Server Dell 8GP0F Server Dell 8GP0F Server

Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview

Products and parts from Dell.
Dell 8GP0F Server Overview

Best choice in balanced and dense compute for the most popular IT applications | Buy the performance and density you need

The new Dell PowerEdge R660xs is a 1U, two-socket rack server. Buy the best fit in dense performance with this purpose-built 1U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtualization, scale out-database and high performance compute. All delivered in a thoughtfully crafted platform that will provide dense compute that fits in your current infrastructure.

Easily configurable

  • Add up to two 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
  • Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
  • Improve data throughput and reduce latency with support up to 5 I/O devices (up to 3 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot)
  • Storage options include up to 4x 3.5" HDDs/SSDs; or up to 10x 2.5" HDDs/SSDs/NVMe

A breeze to cool

  • Thoughtfully designed to fit in your current air-cooled infrastructure
  • Alleviate the worry about expensive liquid cooling retrofitting to your data center
  • Sychronize your workload needs with a tailored performance configuration that is air-cooled
  • Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirements

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Sustainability

From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.

Rest easier with Dell Technologies Services

Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more - available across 170 locations and backed by our 60K+employees and partners.

Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Type:
Xeon Silver
Processor Model:
4410Y
Processor Core:
Dodeca-core (12 Core)
Processor Speed:
2 GHz
Cache:
30 MB
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
1.50 TB
Memory Technology:
DDR5 SDRAM
Error Checking:
ECC
Number of Occupied Memory Slots:
2
Signal Processing:
Registered (Buffered)
Storage
Total Solid State Drive Capacity:
480 GB
Solid State Drive Interface:
Serial ATA/600
Controllers
Controller Model:
Front PERC H755 Front Load
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
PCI Express Details:
1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5); 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
Riser Card:
Riser Config 3, Low Profile, 1x16 LP Slots (Gen4)
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
3
Number of USB 2.0 Ports:
2
Number of USB 3.0 Ports:
1
Network (RJ-45):
Yes
VGA:
Yes
Number of VGA Ports:
2
Remote Management:
Yes
Remote Management Controller:
iDRAC9, Datacenter 16G
Operating System
Operating System Supported:
  • Ubuntu Server
  • Hyper-V
  • Windows Server
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Installed:
2
Plug/Connector Type:
NEMA 5-15P to C13
Maximum Power Supply Wattage:
800 W
Redundant Power Supply:
Yes
Hot Swappable Power Supply:
Yes
Power Source:
Power Supply
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
1.7"
Width:
19"
Depth:
29.5"
Weight (Approximate):
42.88 lb
Miscellaneous
Package Contents:
  • PowerEdge R660xs Server
  • 2 X NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America
  • ReadyRails A11 drop-in/stab-in Slide Combo Rails Without Cable Management Arm
  • PowerEdge R660xs, 8x2.5, Short Drive Shipping Material
Security Features:
  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot
  • Secure Erase
  • Secured Component Verification (Hardware integrity check)
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Warranty
Limited Warranty:
40 Month
Additional Warranty Information:
  • Next Bus. Day 39MO(Disti SNS), 39 Month(s)
  • Next Bus. Day (Disti SNS), 40 Month(s)
Item Numbers
GTIN: 0884116461616
UPC: 884116461616
EAN: 0884116461616
UNSPSC: 43211501

Frequently Asked Questions

The Dell PowerEdge R660xs is a 1U rack-mountable server featuring a single Xeon Silver 4410Y processor running at 2 GHz, 32 GB of DDR5 SDRAM, and 480 GB SSD storage. It supports up to 1.50 TB of total RAM and includes 8 SFF bays with dual redundant 800 W power supplies for enterprise reliability. We offer this server as part of our comprehensive Dell infrastructure solutions—contact us today for current availability and pricing.

Yes, the Dell PowerEdge R660xs is designed for standard 19-inch rack environments with its 1U form factor and includes Gigabit Ethernet connectivity for seamless network integration. The server's dual processor support and extensive memory capacity make it compatible with most enterprise virtualization and storage solutions. Contact us today to discuss compatibility with your specific infrastructure requirements.

The Dell 8GP0F provides 8 SFF (Small Form Factor) drive bays supporting up to 480 GB SSD as standard, with the ability to configure additional storage through hot-swap bay expansion. The server supports various drive types including SSDs for high-performance applications and traditional drives for capacity-focused deployments. Visit barcodesinc.com or contact us today to explore storage configuration options tailored to your warehouse or logistics operations.

The Dell 8GP0F supports a maximum of 1.50 TB of DDR5 SDRAM, providing substantial memory capacity for demanding applications in warehouse management systems and logistics operations. It comes standard with 32 GB of DDR5 memory and allows for significant upgrades to handle large-scale data processing and real-time inventory management. We offer compatible memory modules available from us—contact us today for upgrade options.

The Dell PowerEdge R660xs features dual redundant 800 W power supplies, ensuring continuous operation even if one power supply fails—critical for mission-critical warehouse and logistics environments. This redundancy eliminates single points of failure and provides the reliability needed for 24/7 barcode scanning, RFID operations, and inventory management systems. Contact us today to discuss power infrastructure requirements for your deployment.

The Dell PowerEdge R660xs includes Gigabit Ethernet connectivity for reliable network communication in data center and warehouse environments. The server's networking infrastructure supports high-speed data transfer for barcode and RFID systems, mobile computer management, and label printer network connectivity. Visit barcodesinc.com or contact us today to discuss networking configuration for your AIDC infrastructure.
