Release Year:
2024
AI-powered:
Yes
Dell 6D7HC Workstation PC
Part Number:
6D7HC
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

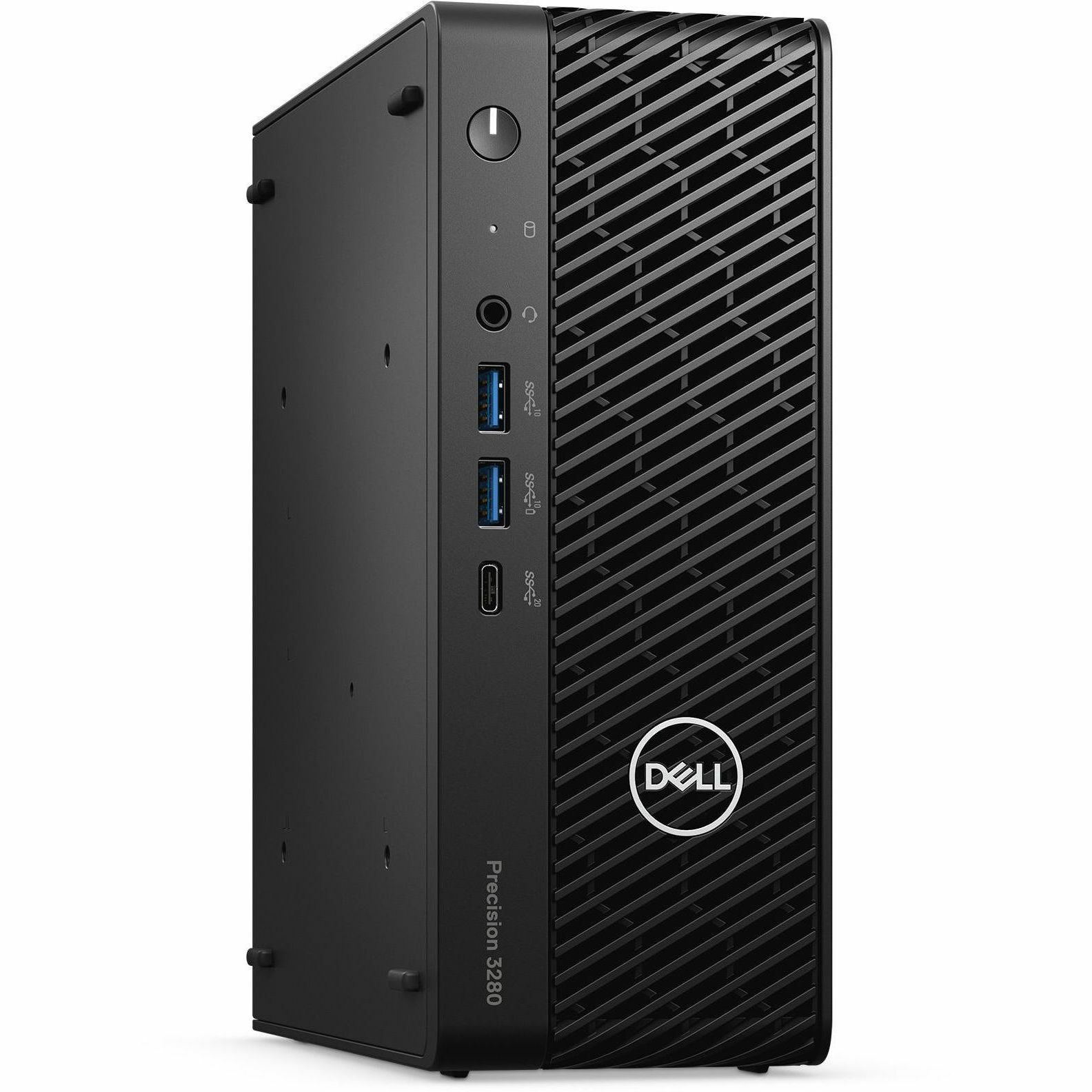

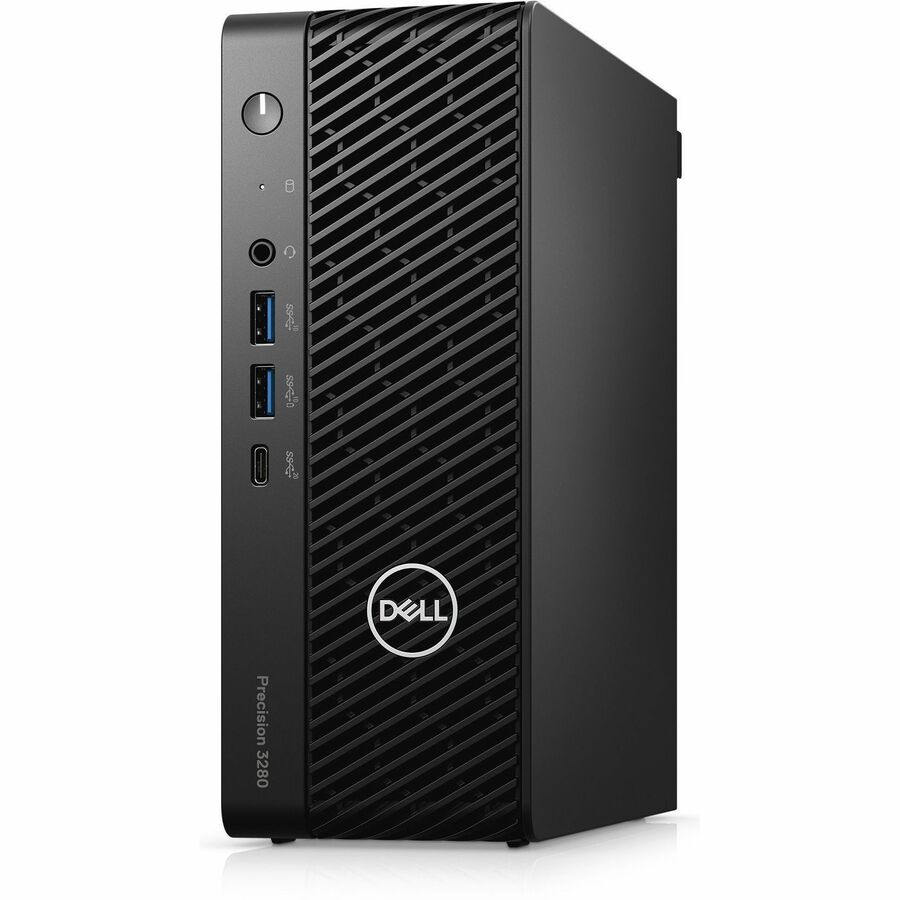

Dell 6D7HC Workstation PC Overview
Big power, compact size.
Ultra-small form factor that delivers uncompromised performance for tight workspaces and the Edge. The world's smallest workstation that supports Tensor Core GPUs.
Technical Information
Processor
Processor Type:
Core i7
Processor Generation:
14th Gen
Processor Model:
i7-14700
Processor Core:
Icosa-core (20 Core)
Processor Threads:
28
Processor Speed:
2.10 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Total Number of Memory Slots:
2
Error Checking:
Non-ECC
Memory Configuration:
2 x 16 GB
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
Controllers
Controller Type:
- NVMe
- Serial ATA
RAID Supported:
No
Display & Graphics
VR Ready:
Yes
Graphics Memory Capacity:
8 GB
Graphics Memory Accessibility:
Dedicated
Network & Communication
Ethernet Technology:
Ethernet
Wireless LAN:
No
Interfaces/Ports
Total Number of USB Ports:
8
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
5
USB Type-C:
Yes
USB Type-C Detail:
1 USB 3.2 Type C (20Gbps)
DisplayPort:
Yes
Number of HDMI Outputs:
0
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs:
3
Optional Ports:
1 Optional port
Details regarding optional ports aggregated from the information available for this product's family/series
Input Devices
Keyboard Localization:
English (US)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Brazilian Portuguese/French/Spanish
Power Description
Maximum Power Supply Wattage:
280 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Compact
Height:
8.1"
Width:
3.1"
Depth:
7"
Weight (Approximate):
5.60 lb
Miscellaneous
Package Contents:
- Precision 3280 Compact
- Power Adapter
- Keyboard
- Mouse
- Safety/Environment and Regulatory Guide (English/French Multi-language)
- Quick Setup Guide, Precision 3280
- Power Cord
- 4 mDP to DP Adapter
Energy Star:
Yes
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- TCO Certified 9.0
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Energy Efficiency Certification:
ENERGY STAR 8.0
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116471325
UPC:
884116471325
EAN:
0884116471325
UNSPSC:
56112002
Frequently Asked Questions
What are the key specifications of the Dell Precision 3280 Workstation?
The Dell Precision 3280 features a 14th Gen Intel Core i7-14700 processor with vPro Technology, 32 GB of memory, and a 512 GB NVMe SSD for fast performance. It includes 8 GB of dedicated graphics and runs Windows 11 Pro, making it ideal for demanding workloads in compact environments. The system is available from us with a standard English (US) keyboard and Ethernet connectivity.
Is the Dell 6D7HC suitable for warehouse and logistics operations?
Yes, the Dell Precision 3280 is well-suited for warehouse and logistics environments with its compact form factor, robust Intel vPro management capabilities, and durable construction. The system supports multiple connectivity options including Ethernet and serial interfaces, making it compatible with barcode scanners and other AIDC equipment commonly used in supply chain operations. Contact us today to configure this workstation for your specific logistics needs.
What graphics capabilities does this Dell workstation offer?
The Dell Precision 3280 comes equipped with 8 GB of dedicated graphics memory, providing robust visual performance for applications requiring graphics acceleration. This configuration supports professional-grade tasks and can handle multiple display outputs through various connectivity options available on the system.
What security features are included with the Dell Precision 3280?
The Dell Precision 3280 includes Intel vPro Technology with advanced management and security features, along with TPM (Trusted Platform Module) support for enhanced data protection. These features enable secure remote management and encryption capabilities essential for enterprise environments handling sensitive logistics and inventory data.
What storage options are available for the Dell 6D7HC?
The Dell Precision 3280 comes standard with a 512 GB NVMe SSD, which provides fast boot times and application loading. The system supports both NVMe and Serial ATA controllers, allowing for flexible storage configurations to meet your organization's capacity and performance requirements.
What connectivity options does the Dell Precision 3280 provide?
The Dell Precision 3280 includes Ethernet connectivity and supports multiple I/O options for connecting barcode scanners, label printers, and other AIDC devices essential to warehouse operations. The system's flexible port configuration makes it compatible with legacy and modern peripherals used in logistics environments. Visit barcodesinc.com to explore compatible accessories and peripherals for your workstation setup.
