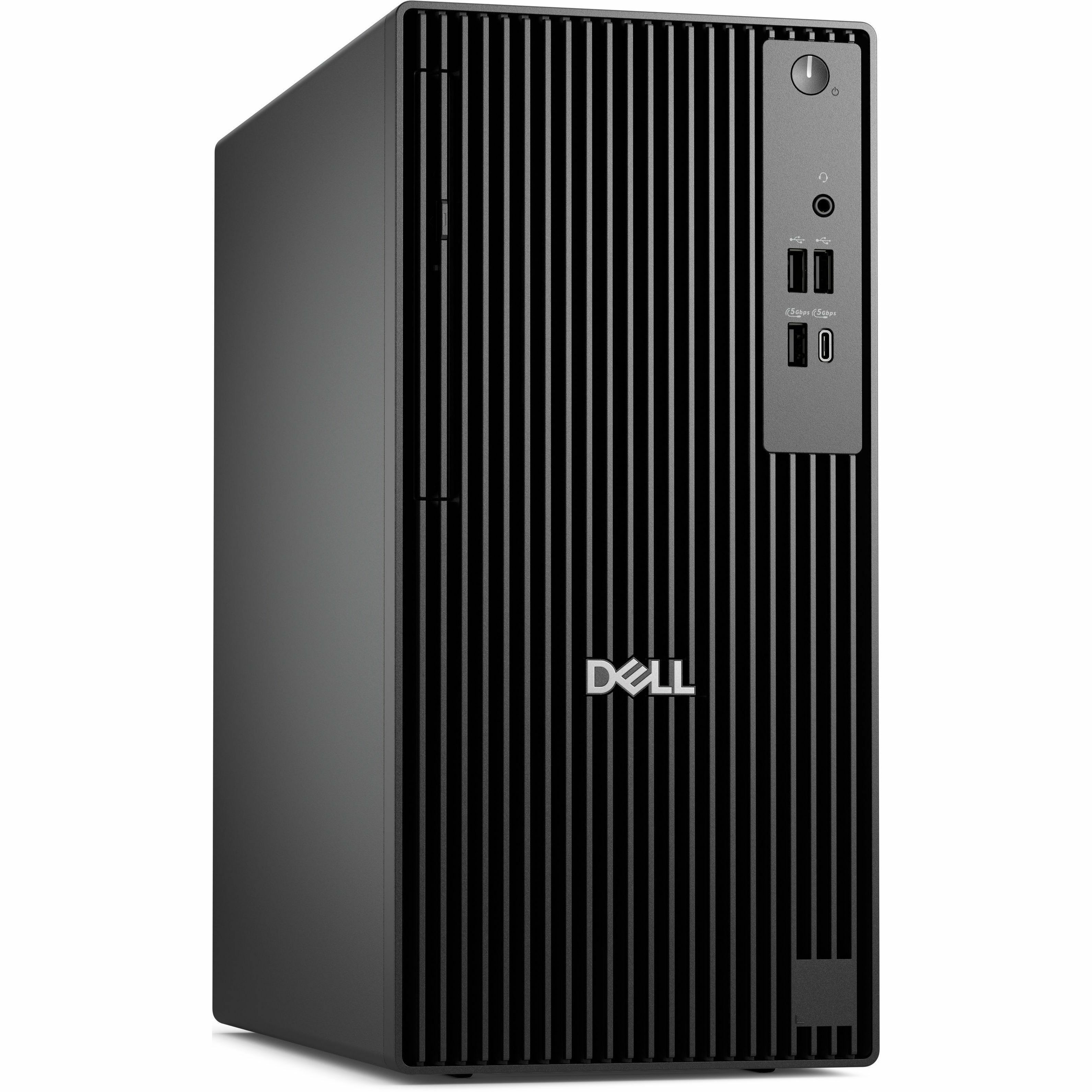

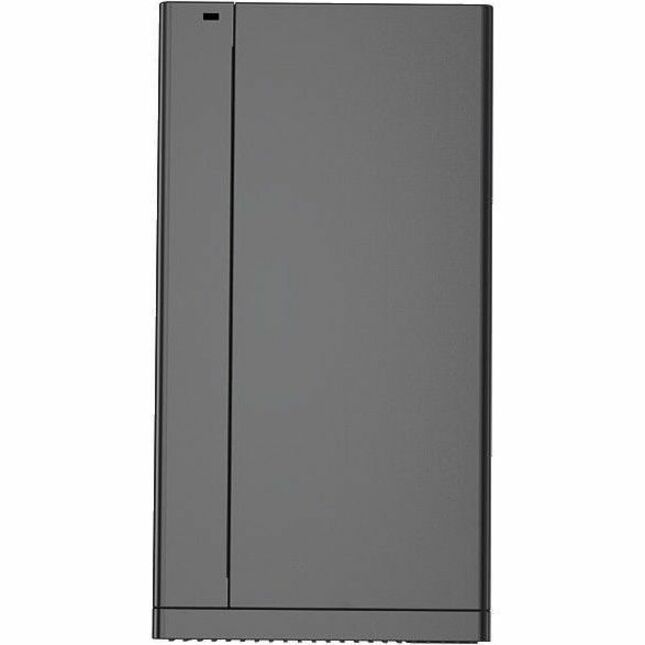

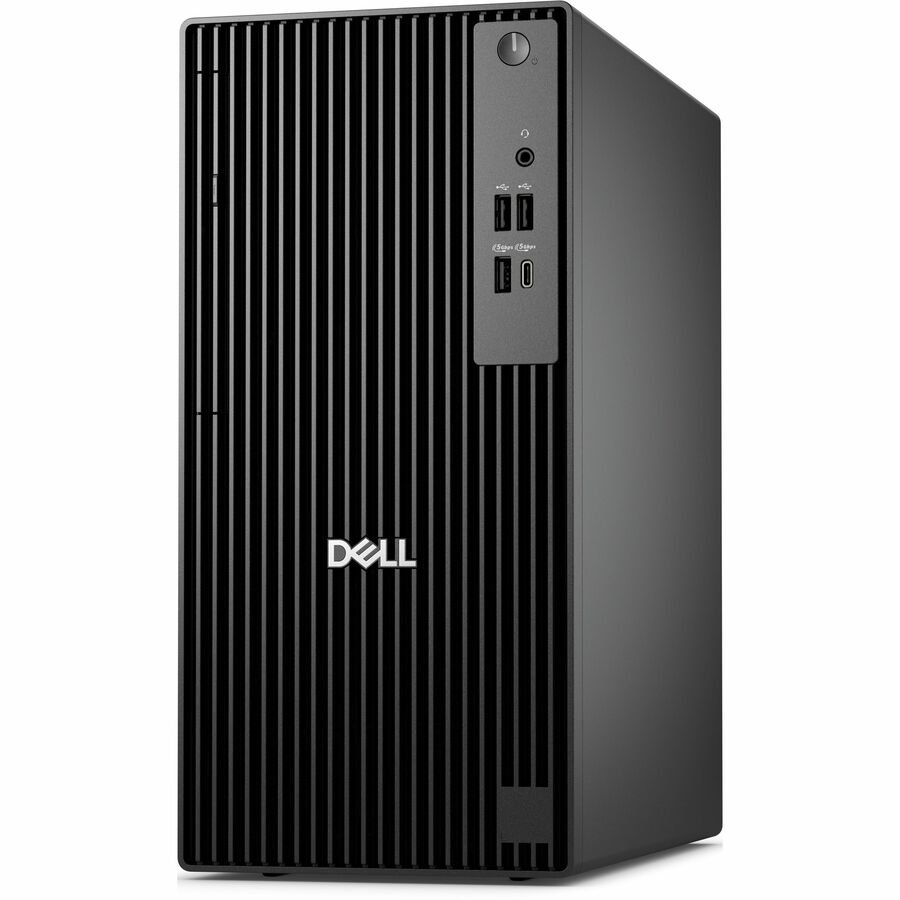

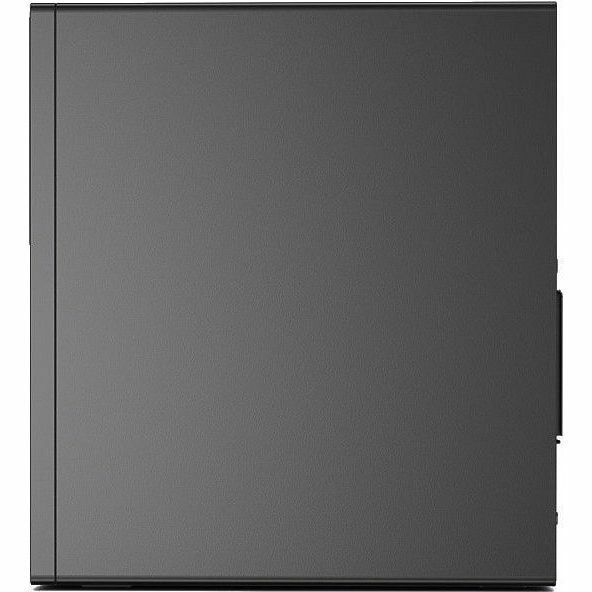

Dell 69XR8 Desktop PC
Part Number:
69XR8
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell 69XR8 Desktop PC Overview
Unlock power and performance
Tackle high-performance tasks with ease. Upgrade to AI-enhanced productivity with up to Intel® Core™ Ultra desktop processors (Series 2).
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 7
Processor Model:
265
Processor Core:
Icosa-core (20 Core)
Processor Threads:
20
Processor Speed:
2.40 GHz
Maximum Turbo Speed:
5.30 GHz
vPro Technology:
Yes
NPU Manufacturer:
Intel
NPU Name:
AI Boost
NPU Performance:
13 TOPS
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 16GB
Number of Occupied Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
No
Interfaces/Ports
HDMI (Rear):
Yes
Total Number of USB Ports:
8
Number of USB 2.0 Ports (Front):
2
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
3
USB Type-C (Front):
Yes
USB Type-C Detail:
1 x USB 3.2 Gen 1 (5 Gbps) Type-C® port
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
1
DisplayPort (Rear):
Yes
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 legacy serial port (optional)
Rear (expansion, these are mutually exclusive options):
For computers shipped with an Intel®Core™ 300/i3 14100/i5 14500 vPro®/i5 14600 vPro®/i7 14700 vPro®processor:
- 1 VGA port (optional)
- 1 HDMI 2.1 (TMDS) port (optional)
- 1 DisplayPort™ 1.4a (HBR3) port (optional)
- 2 USB 3.2 Gen 2 (10 Gbps) ports (optional)
- 1 USB 3.2 Gen 2 (10 Gbps) Type-C®with DisplayPort™ Alt Mode port (optional)
For computers shipped with an Intel®Core™ Ultra 5 225/235/245 or Ultra 7 265 processor:
- 1 VGA port (optional)
- 1 HDMI 2.1 (FRL) port (optional)
- 1 DisplayPort™ 2.1 (UHBR20) port (optional)
- 2 USB 3.2 Gen 2 (10 Gbps) ports (optional)
- 1 USB 3.2 Gen 2 (10 Gbps) Type-C®with DisplayPort™ Alt Mode port (optional)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
180 W
Physical Characteristics
Form Factor:
Tower
Height:
12.8"
Width:
6.1"
Depth:
11.5"
Weight (Approximate):
14.95 lb
Miscellaneous
Package Contents:
- Pro Tower QCT1250
- Quick Start Guide
- Documentation
- Power Cord (Philipine/TH/US)
Systems Management:
No vPro Support
Features:
Security Slot
Energy Star:
Yes
Country of Origin:
Mexico
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- TCO Certified 10.0
- Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS.
Item Numbers
GTIN:
0884116671022
UPC:
884116671022
EAN:
0884116671022
UNSPSC:
43211507
Frequently Asked Questions
What processor and memory does the Dell 69XR8 desktop come with?
The Dell 69XR8 features an Intel Core Ultra 7 265 processor with vPro Technology, 16 GB of DDR5 SDRAM, and a 512 GB SSD for storage. This configuration delivers strong performance for warehouse management systems, inventory tracking, and logistics applications. We offer this model ready to deploy with Windows 11 Pro pre-installed.
Is the Dell 69XR8 suitable for warehouse and logistics operations?
Yes, the Dell 69XR8 is well-suited for warehouse and logistics environments with its robust Intel Core Ultra 7 processor, vPro management capabilities, and Windows 11 Pro operating system. The 180 W power supply and tower form factor provide reliable performance for continuous operation in demanding settings. Contact us today to discuss how this desktop integrates with your AIDC and inventory management infrastructure.
What connectivity options does the Dell 69XR8 desktop provide?
The Dell 69XR8 includes multiple connectivity options including USB ports, HDMI output, network connectivity (RJ-45), and audio jacks to support barcode scanners, label printers, and other warehouse peripherals. The tower design accommodates expansion cards and additional modules for legacy I/O adapters if needed for older AIDC equipment. Visit barcodesinc.com to explore compatible accessories and docking solutions.
Does the Dell 69XR8 support Intel vPro remote management?
Yes, the Dell 69XR8 includes Intel vPro Technology, which provides advanced remote management, security, and monitoring capabilities—essential for IT teams managing multiple warehouse workstations. vPro enables out-of-band management, hardware-based security features, and simplified fleet deployment across your logistics operations. We can help you configure vPro settings for your specific warehouse management needs.
What are the physical dimensions and weight of the Dell 69XR8?
The Dell 69XR8 is a tower-form-factor desktop designed for stationary warehouse office and IT environments. The compact tower design fits standard desk setups while providing the processing power needed for barcode scanning software, WMS platforms, and logistics applications. Contact us today for detailed dimension specifications and space planning assistance.
Is the Dell 69XR8 energy efficient for warehouse operations?
The Dell 69XR8 features a 180 W power supply and is designed with energy efficiency in mind, making it cost-effective for 24/7 warehouse operations. The DDR5 memory and modern Intel architecture optimize power consumption while maintaining performance for inventory management and AIDC applications. We offer this model as part of our commitment to helping logistics teams reduce operational costs.
