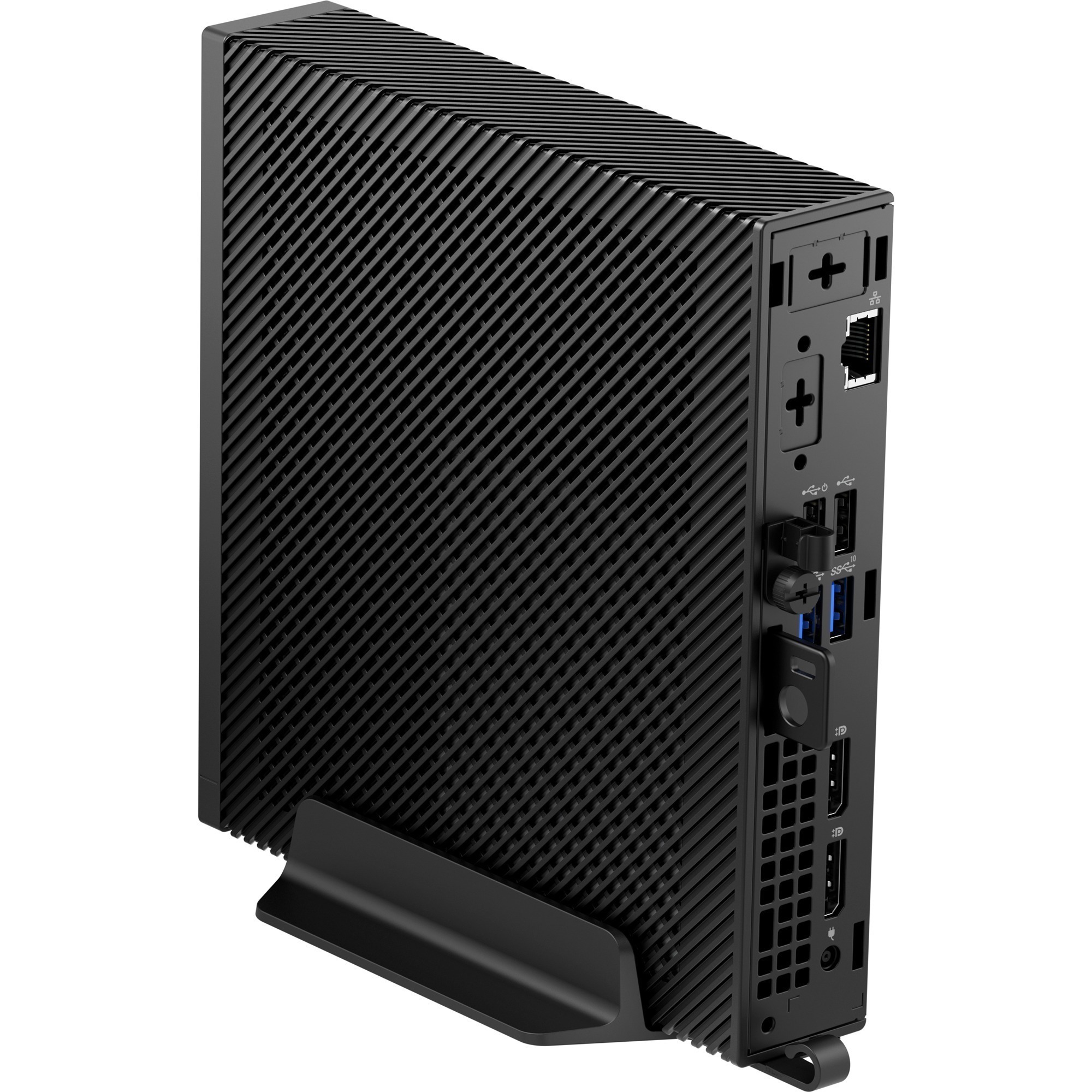

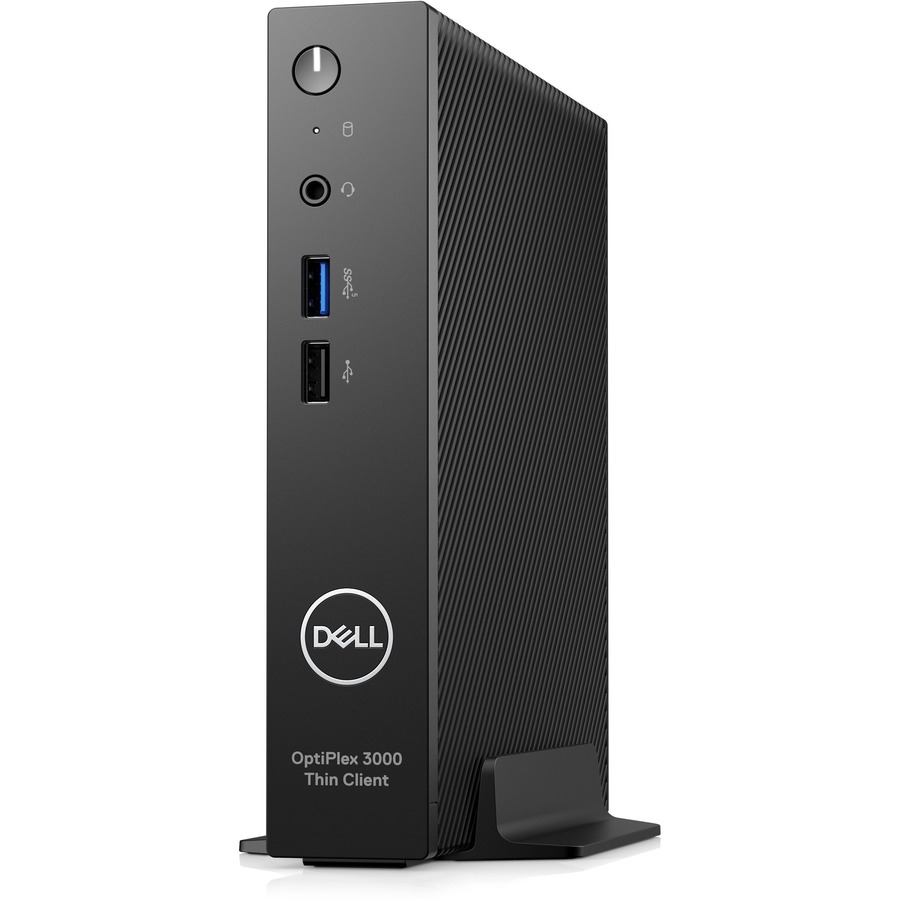

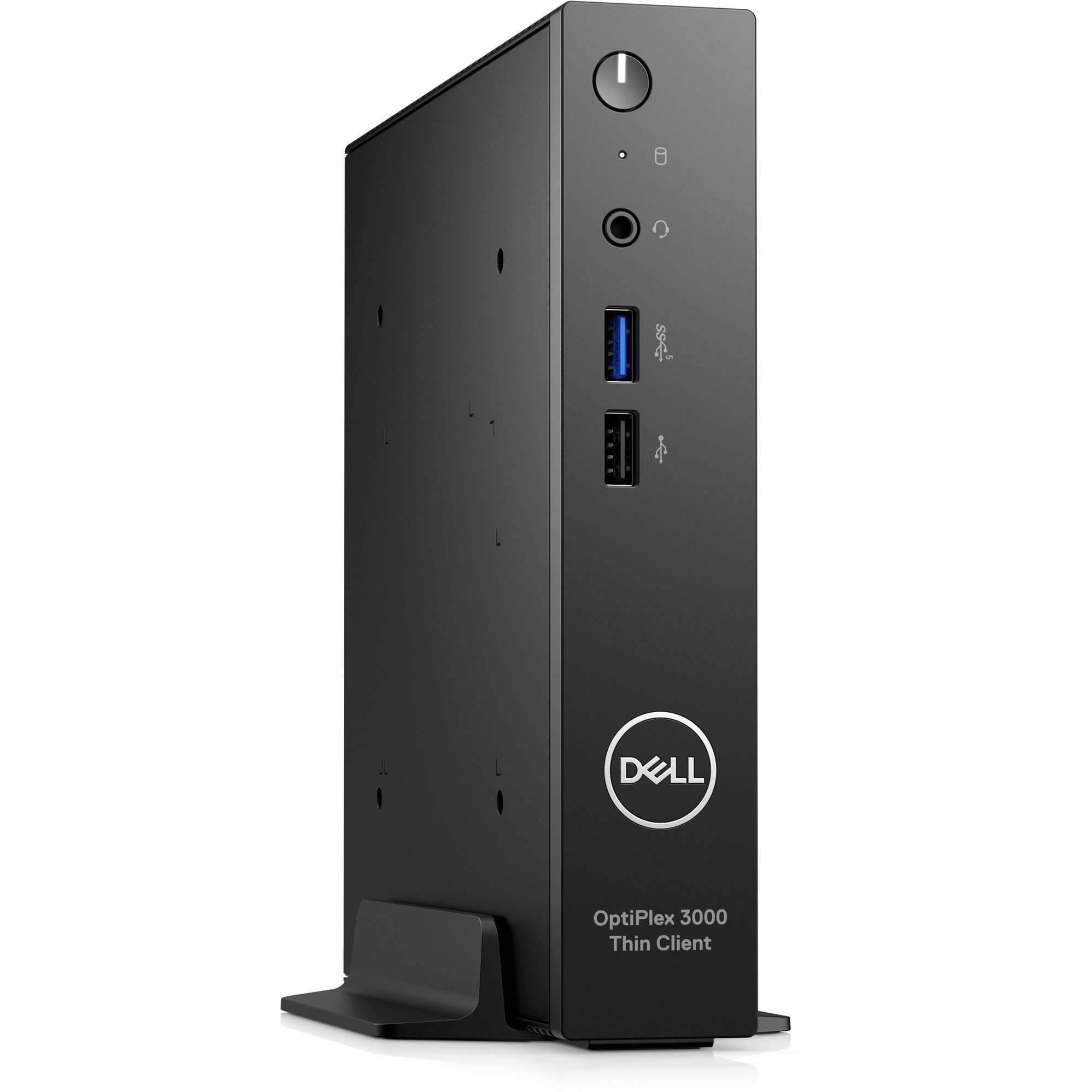

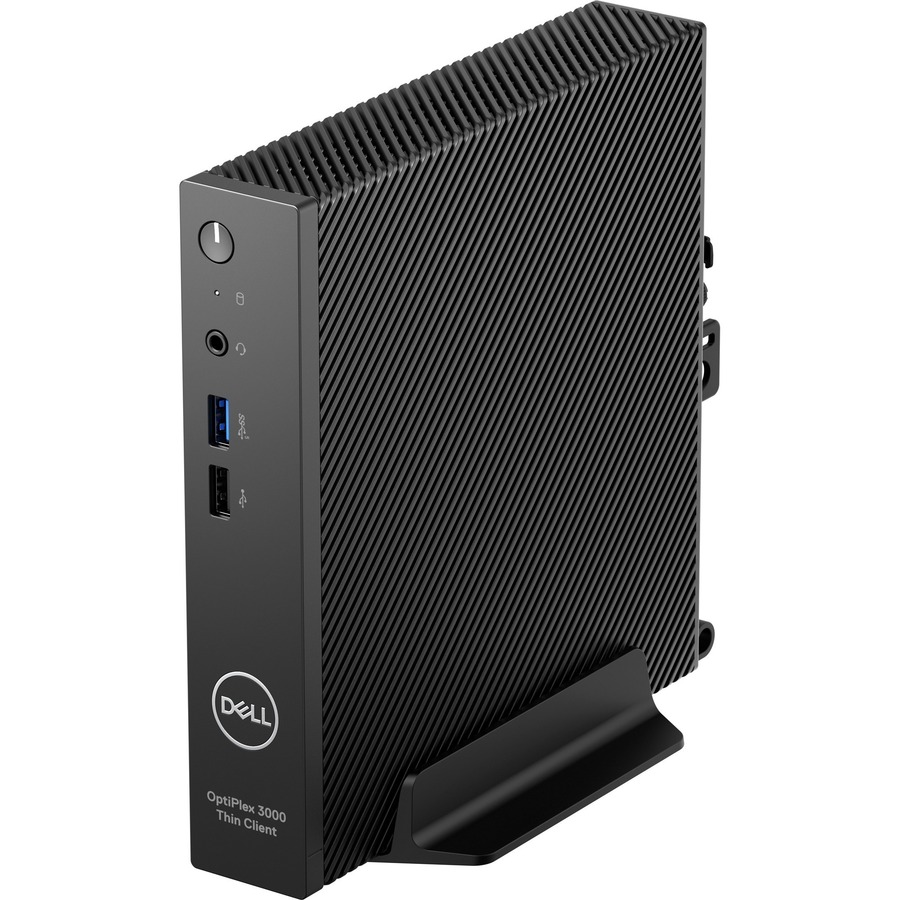

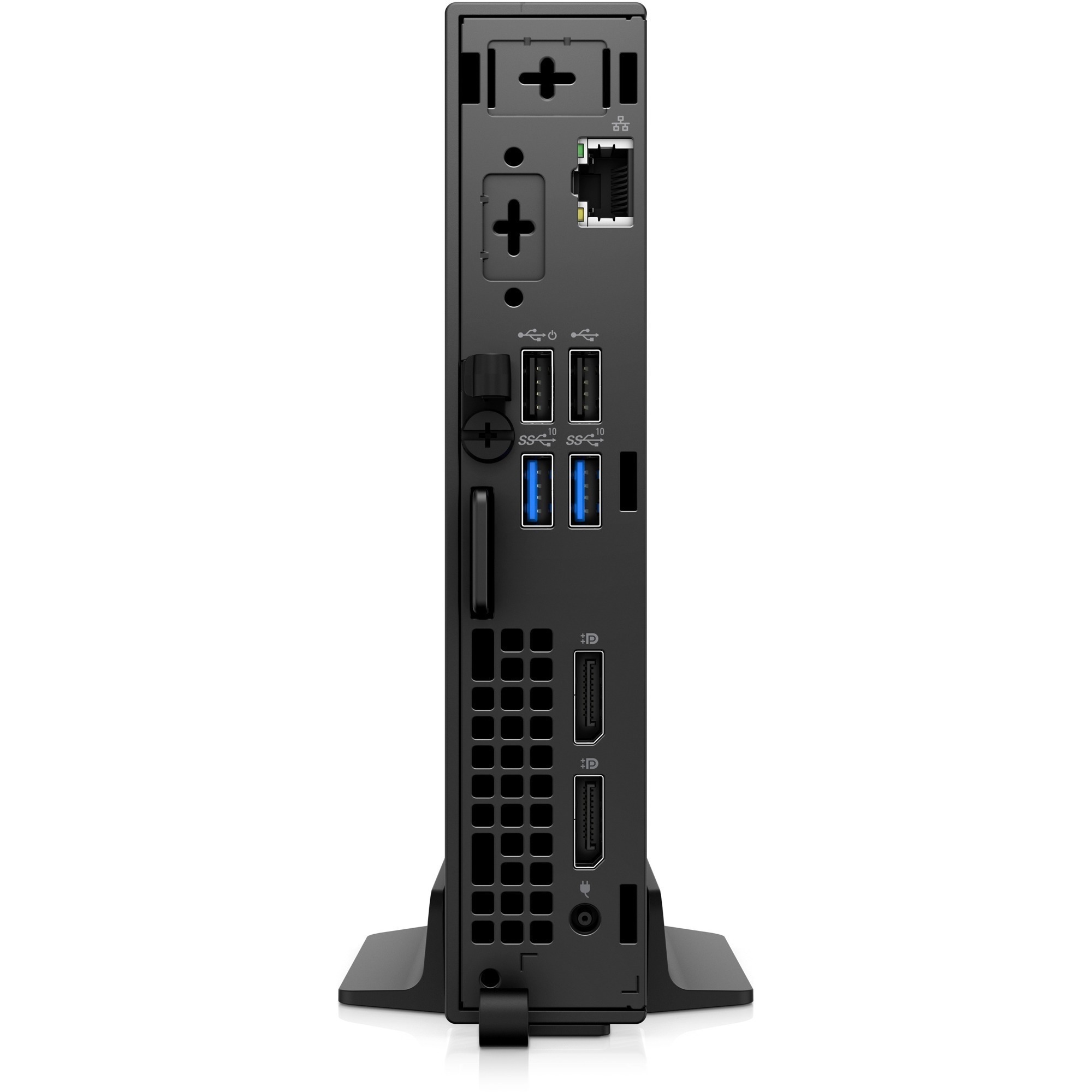

Dell 656J5 Terminal / Network Computer

Part Number: 656J5
Model: Parts
Please Call for Pricing or to Purchase
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Processor Type
Celeron
Processor Model
N5105
Processor Core
Quad-core (4 Core)
Processor Speed
2 GHz

Product Description:

  Dell OptiPlex 3000 Small Form Factor Thin Client Celeron N5105 Quad-core (4 Core) 2 GHz - Black - Intel Chip - 8 GB RAM DDR4 SDRAM - DDR4-2933/PC4-23400 - 256 GB SSD - Ethernet - Windows 10 IoT Enterprise LTSC 2021English) - DisplayPort - Network (RJ-45) - 6 Total USB Port(s) - 3 USB 2.0 Port(s) - English (US) Keyboard - 65 W

Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview

Products and parts from Dell.
Dell 656J5 Terminal / Network Computer Overview

OptiPlex 3000 Thin Client | Security that revolves around you

The industry's most secure thin client with Dell ThinOS optimized for Dell cloud client software solutions, now designed by OptiPlex.

Processor
Processor Type:
Celeron
Processor Model:
N5105
Processor Core:
Quad-core (4 Core)
Processor Speed:
2 GHz
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
8 GB
Maximum Memory Supported:
16 GB
Memory Technology:
DDR4 SDRAM
Memory Standard:
DDR4-2933/PC4-23400
Storage
Solid State Drive Capacity:
256 GB
Drive Type:
SSD
Display & Graphics
Graphics Controller Model:
UHD Graphics
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Ethernet
Wireless LAN:
No
Input Devices
Keyboard Localization:
English (US)
Interfaces/Ports
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
3
Number of USB 3.2 Gen 1 Ports:
1
Number of USB 3.2 Gen 2 Ports:
2
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
DisplayPort:
Yes
Number of DisplayPorts:
2
Optional Ports:

Details regarding optional ports aggregated from the information available for this product's family/series

  • 1 VGA port (optional)
  • 1 USB 3.2 Gen 1 Type-C® port with DisplayPort Alt mode (optional)
  • 1 DisplayPort 1.4 (optional)
  • 1 HDMI 2.0 port (optional)
  • 1 PS/2 keyboard/mouse port (optional)
  • 1 Serial port (optional)
  • Operating System
    Operating System:
    Windows 10 IoT Enterprise LTSC 2021
    Operating System Language:
    English
    Power Description
    Maximum Power Supply Wattage:
    65 W
    Power Source:
    AC Adapter
    Physical Characteristics
    Color Family:
    Black
    Product Color:
    Black
    Form Factor:
    Small Form Factor
    Height:
    7.2"
    Width:
    1.4"
    Depth:
    7"
    Weight (Approximate):
    2.07 lb
    Miscellaneous
    Package Contents:
    • OptiPlex 3000 Thin Client
    • US Power Cord
    • AC Adapter
    • Mouse
    • Keyboard
    • Shipping Docs
    • Vertical Stand
    Energy Star:
    Yes
    Environmentally Friendly:
    Yes
    Environmental Certification:
    Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
    Energy Efficiency Certification:
    ENERGY STAR 8.0
    Country of Origin:
    China
    TAA Compliant:
    No
    TCO Certified:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Additional Warranty Information:
    3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS


    Item Numbers
    GTIN: 0884116473275
    UPC: 884116473275
    EAN: 0884116473275
    UNSPSC: 43211506

    Frequently Asked Questions

    The Dell 656J5 OptiPlex 3000 Small Form Factor Thin Client features an Intel Celeron N5105 quad-core processor running at 2 GHz, 8 GB DDR4 SDRAM memory, and a 256 GB SSD for storage. It includes 6 total USB ports (3 USB 2.0), Ethernet connectivity via RJ-45, DisplayPort output, and runs Windows 10 IoT Enterprise LTSC 2021 with a 65 W power adapter.

    Yes, the Dell 656J5 thin client is well-suited for warehouse and logistics environments as a network computer. Its compact Small Form Factor design, robust Windows 10 IoT Enterprise operating system, and multiple connectivity options (Ethernet, USB ports, DisplayPort) make it ideal for point-of-sale systems, barcode scanning integration, and inventory management applications. Contact us today to discuss how we can integrate this terminal into your warehouse operations.

    The Dell 656J5 offers comprehensive connectivity with 6 USB ports (3 USB 2.0), a single Ethernet port (RJ-45) for network connectivity, and DisplayPort for display output. These connectivity options allow seamless integration with barcode scanners, label printers, and other AIDC devices commonly used in logistics and warehouse management. We offer this terminal with full compatibility support for your existing peripheral devices.

    The Dell 656J5 comes pre-installed with Windows 10 IoT Enterprise LTSC 2021, which is specifically designed for terminal and embedded computing environments. This long-term servicing channel release provides extended support and stability for mission-critical warehouse and logistics applications without frequent feature updates.

    The Dell 656J5 is configured with 8 GB of DDR4 SDRAM memory running at DDR4-2933/PC4-23400 speeds and includes a 256 GB SSD for storage. This configuration provides sufficient performance and capacity for running multiple warehouse management applications and barcode scanning software simultaneously.

    The Dell 656J5 thin client operates with a 65 W external power adapter, making it an energy-efficient choice for 24/7 warehouse and logistics terminal deployments. The low power consumption reduces operational costs and heat generation in your facility. Visit barcodesinc.com to learn more about integrating this efficient terminal into your AIDC infrastructure.
