Dell 5PTCP Workstation PC
Part Number:
5PTCP
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

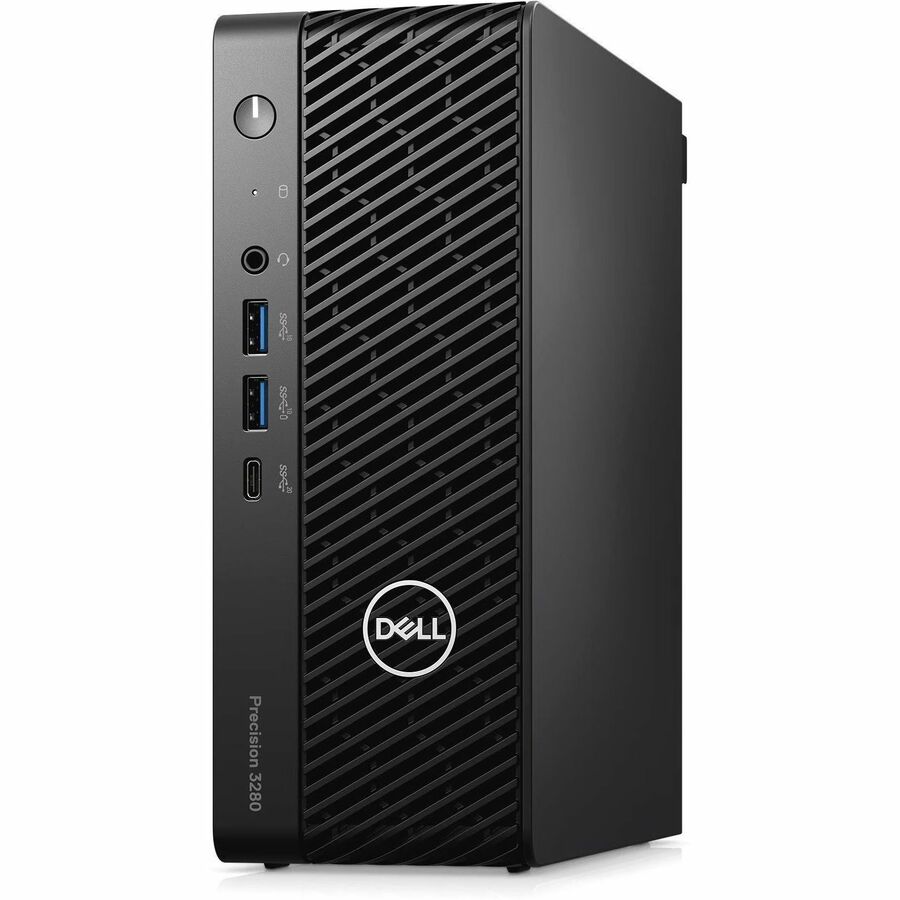

Dell 5PTCP Workstation PC Overview
Big power, compact size.
Ultra-small form factor that delivers uncompromised performance for tight workspaces and the Edge. The world's smallest workstation that supports Tensor Core GPUs.
Technical Information
Processor
Processor Type:
Core i5
Processor Generation:
14th Gen
Processor Model:
i5-14500
Processor Core:
Tetradeca-core (14 Core)
Processor Threads:
20
Processor Speed:
2.60 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Total Number of Memory Slots:
2
Error Checking:
Non-ECC
Memory Configuration:
2 x 8GB
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
Controllers
Controller Type:
- NVMe
- Serial ATA
RAID Supported:
No
Display & Graphics
VR Ready:
Yes
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Ethernet
Wireless LAN:
No

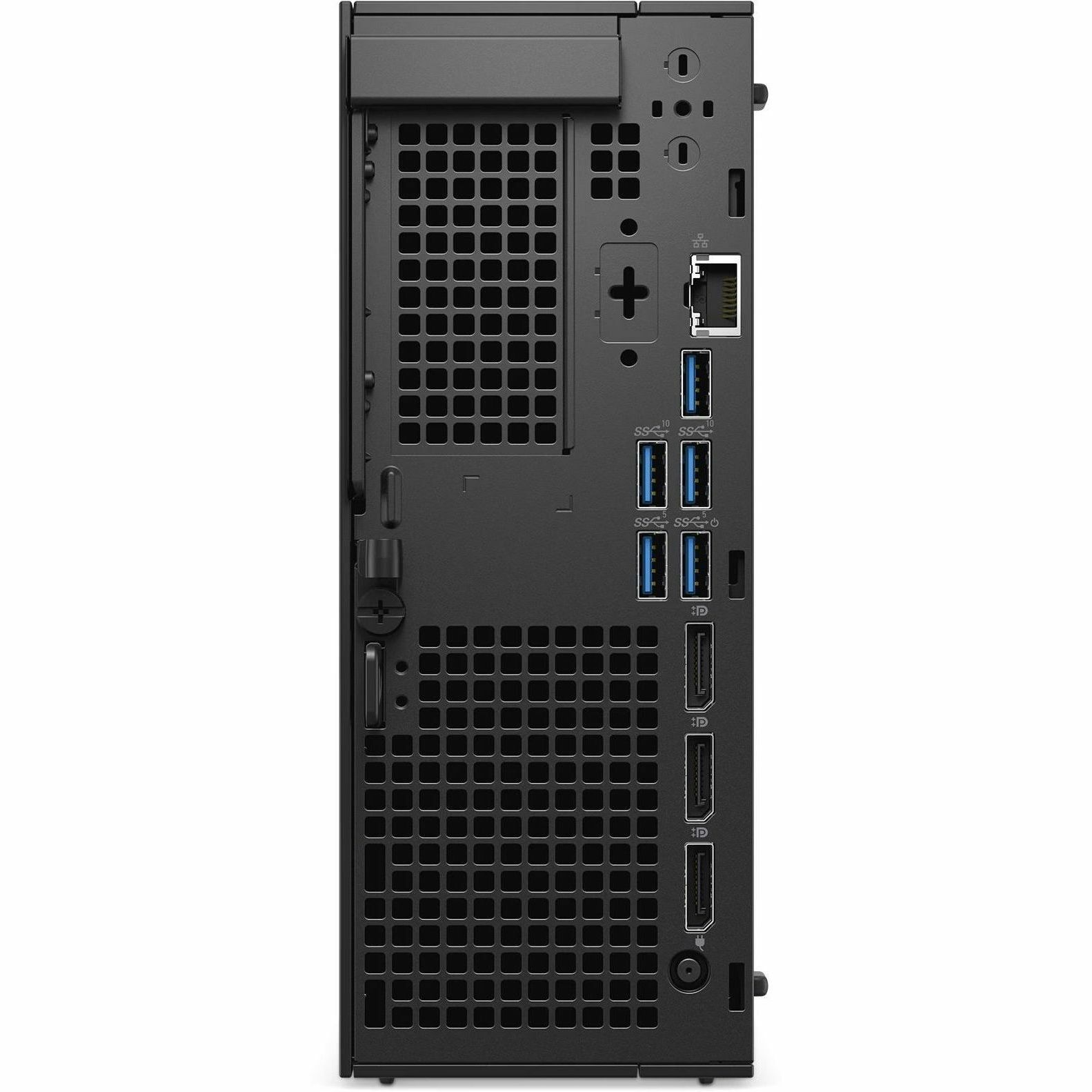

Interfaces/Ports
Total Number of USB Ports:
8
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
5
USB Type-C:
Yes
USB Type-C Detail:
1 USB 3.2 Type C (20Gbps)
DisplayPort:
Yes
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs:
3
Optional Ports:
1 Optional port
Details regarding optional ports aggregated from the information available for this product's family/series
Input Devices
Keyboard Localization:
English (US)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Brazilian Portuguese/French/Spanish
Power Description
Maximum Power Supply Wattage:
280 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Compact
Height:
8.1"
Width:
3.1"
Depth:
7"
Weight (Approximate):
5.60 lb
Miscellaneous
Package Contents:
- Precision 3280 Compact
- Power Adapter
- Keyboard
- Mouse
- Safety/Environment and Regulatory Guide (English/French Multi-language)
- Quick Setup Guide, Precision 3280
- Power Cord
Energy Star:
Yes
Country of Origin:
Mexico
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- TCO Certified 9.0
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Energy Efficiency Certification:
ENERGY STAR 8.0
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116472001
UPC:
884116472001
EAN:
0884116472001
UNSPSC:
56112002
Frequently Asked Questions
What processor and memory does the Dell 5PTCP Precision 3280 Workstation include?
The Dell 5PTCP features a 14th Gen Intel Core i5-14500 processor with vPro Technology, paired with 16 GB of memory and a 512 GB NVMe SSD for fast performance. This configuration is ideal for professionals running demanding applications in warehouse management, logistics, and IT operations.
Is the Dell 5PTCP compatible with Windows 11 Pro?
Yes, the Dell 5PTCP Precision 3280 Workstation comes pre-installed with Windows 11 Pro and includes an English (US) keyboard. This ensures immediate compatibility with enterprise software and security standards required by most logistics and warehouse operations.
What connectivity options does the Dell 5PTCP Workstation offer?
The Dell 5PTCP includes Ethernet connectivity via RJ-45 network connector for reliable wired connections in warehouse and logistics environments. The workstation also features HDMI, USB ports, and serial DB9 connectivity options to support various peripherals and legacy equipment commonly used in AIDC operations.
What are the physical dimensions and weight of the Dell 5PTCP?
The Dell 5PTCP is a compact workstation designed for space-constrained environments, making it ideal for warehouse and logistics facilities. Contact us today at barcodesinc.com for detailed dimension specifications and to confirm compatibility with your workspace requirements.
Does the Dell 5PTCP include security features for enterprise use?
Yes, the Dell 5PTCP includes Intel vPro Technology with advanced management features, TPM (Trusted Platform Module) support, and optional smartcard reader capabilities for enhanced security. These features are essential for IT procurement teams managing sensitive warehouse and logistics data.
Can the Dell 5PTCP be upgraded or expanded after purchase?
The Dell 5PTCP supports memory expansion and includes multiple connectivity slots for peripherals and docking solutions. We offer configuration options and upgrade services—visit barcodesinc.com or contact us today to discuss customization options that meet your specific warehouse and logistics requirements.
