Chipset Manufacturer:
Intel
Chipset Model:
i350
Dell 540-BDIV Accessory
Part Number:
540-BDIV
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell 540-BDIV Accessory Overview

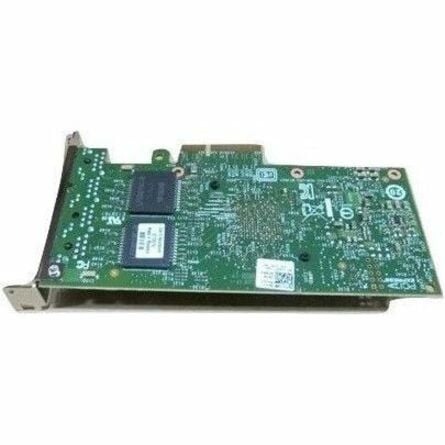

The Gigabit Ethernet PCI-Express® Network Interface Card from Dell™ is ideal for connecting your server to your network. The Gigabit Quad Port Server Adapter proven to be reliable and standards-based solutions. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.
- Provides PCle interface
- Features a compact space-saving design
- Ideal for high-performance network applications
Technical Information
Interfaces/Ports
Host Interface:
PCI Express
Total Number of Ports:
4
Number of Network (RJ-45) Ports:
4
Media & Performance
Media Type Supported:
Twisted Pair
Maximum Data Transfer Rate:
1 Gbit/s
Network & Communication
Network Technology:
1000Base-T
Physical Characteristics
Form Factor:
Plug-in Card
Bracket Height:
Low Profile
Miscellaneous
Application/Usage:
Network
Device Supported:
Server
Item Numbers
GTIN:
0884116484332, 5397184963715
UPC:
884116484332
EAN:
0884116484332, 5397184963715
UNSPSC:
43201404
Frequently Asked Questions
What are the specifications of the Dell 540-BDIV Gigabit Ethernet Card?
The Dell 540-BDIV is a PCI Express Gigabit Ethernet Card featuring an Intel i350 chipset with 4 ports supporting 1 Gbit/s data transfer rates over twisted pair (1000Base-T). It comes with a low profile bracket for compatibility with space-constrained server environments. We offer this genuine Dell accessory as part of our comprehensive networking components inventory.
Is the Dell 540-BDIV compatible with my server or workstation?
The Dell 540-BDIV uses a standard PCI Express interface, making it compatible with most servers and workstations that have available PCIe slots. The low profile bracket design ensures it fits in both full-height and low-profile form factor systems. For specific compatibility verification with your hardware configuration, contact us today and our team can confirm compatibility details.
What networking speeds does the Dell 540-BDIV support?
The Dell 540-BDIV Ethernet card supports Gigabit Ethernet speeds up to 1 Gbit/s using the 1000Base-T standard over standard twisted pair cabling. The Intel i350 chipset provides reliable performance for demanding network environments. Visit barcodesinc.com or contact us today for detailed performance specifications and deployment recommendations.
How many network ports does the Dell 540-BDIV provide?
The Dell 540-BDIV features 4 Gigabit Ethernet ports, allowing you to add multiple network connections to a single server or workstation. This quad-port configuration is ideal for network redundancy, load balancing, or connecting to multiple network segments. We offer this multi-port solution as part of our Dell accessory catalog.
What type of bracket does the Dell 540-BDIV include?
The Dell 540-BDIV comes equipped with a low profile bracket, which is designed for installation in compact server chassis and systems with space constraints. The low profile form factor maintains compatibility with Dell PowerEdge servers and other systems that require bracket height restrictions. Contact us today if you need clarification on bracket specifications for your specific installation.
Where can I purchase the Dell 540-BDIV Ethernet Card?
We offer the Dell 540-BDIV Gigabit Ethernet Card as part of our extensive inventory of Dell computer components and networking accessories. As a leading AIDC distributor, we stock genuine Dell products with competitive pricing and fast shipping. Visit barcodesinc.com today or contact our team to check availability and place your order.
