Release Year:
2023

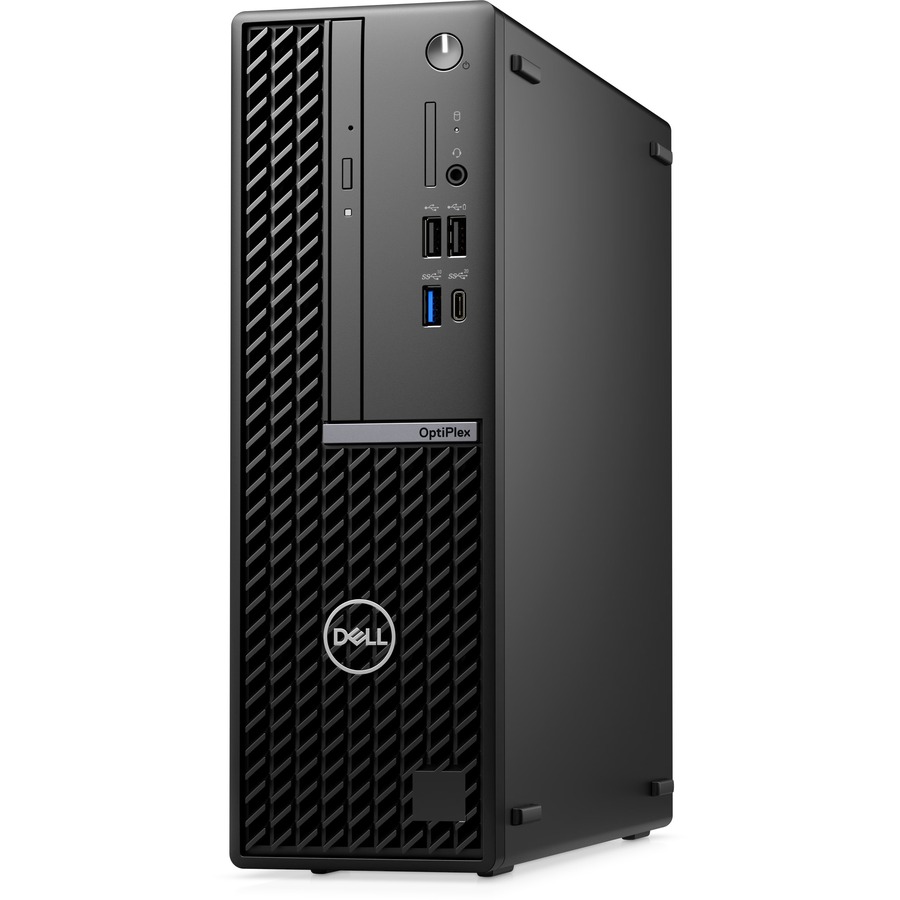

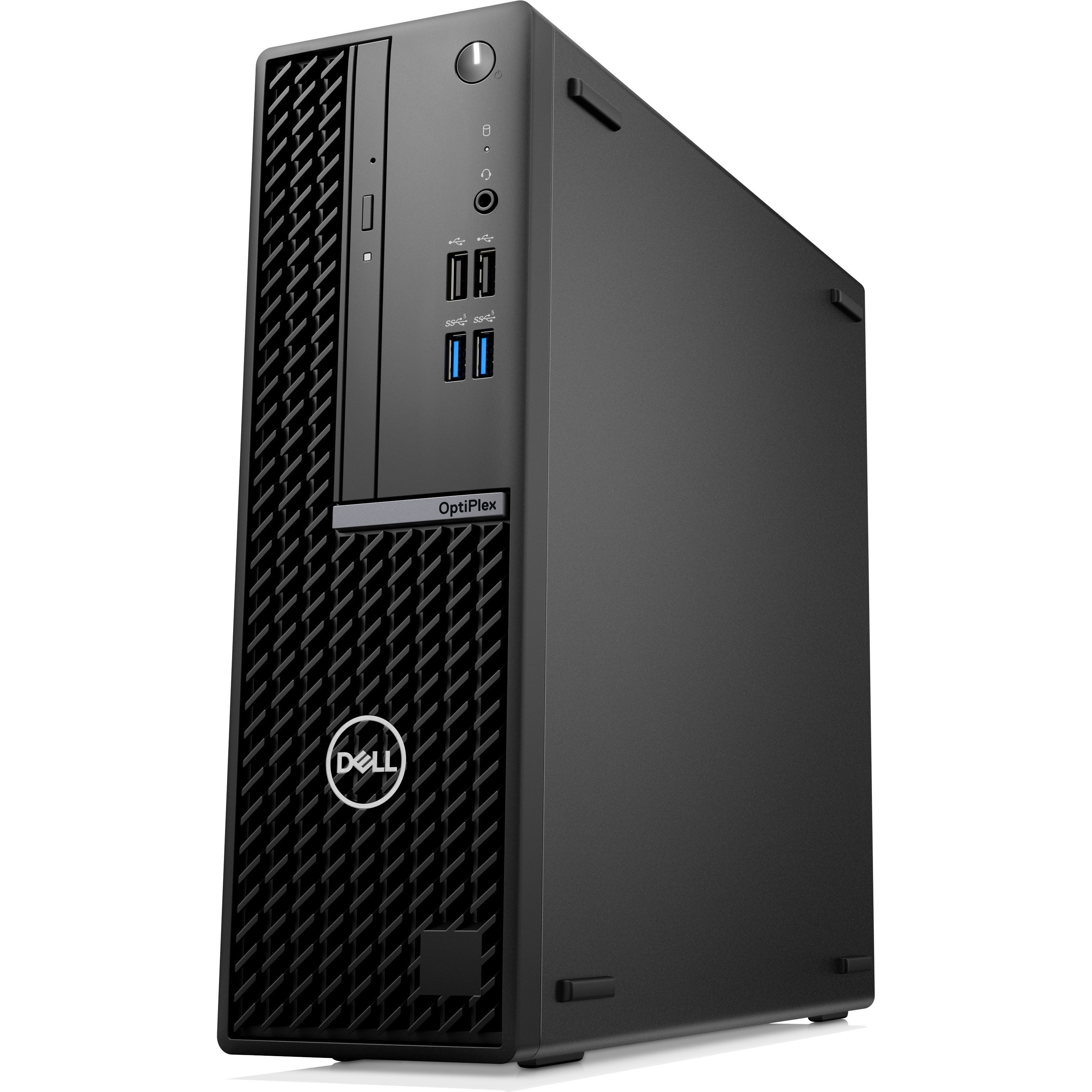

Dell 4R5N2 Desktop PC
Part Number:
4R5N2
Model:
Parts
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i7
Processor Generation:
13th Gen
Processor Model:
i7-13700
Processor Core:
Hexadeca-core (16 Core)
Processor Speed:
2.10 GHz
Maximum Turbo Speed:
5.10 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
2 x 8GB
Total Number of Memory Slots:
4
Number of Occupied Memory Slots:
2
Storage
Total Solid State Drive Capacity:
256 GB
Solid State Drive Interface:
PCI Express NVMe
SSD Form Factor:
M.2
Optical Drive Type:
DVD-Writer
Optical Media Supported:
DVD±R/±RW
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
UHD Graphics 770
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
No
Input Devices
Keyboard Localization:
English
Interfaces/Ports
Total Number of USB Ports:
10
Number of USB 2.0 Ports (Front):
2
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
3
Number of USB 3.2 Gen 2 Ports:
2
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
3
DisplayPort (Rear):
Yes
Optional Ports:
1 Optional video port (HDMI 2.1/Displayport 1.4a (HBR3)/VGA/USB Type-C with DisplayPort Alt mode) 1 Optional PS2/Serial port
Details regarding optional ports aggregated from the information available for this product's family/series
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
260 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Small Form Factor
Height:
11.4"
Width:
3.7"
Depth:
11.5"
Weight (Approximate):
11.22 lb
Miscellaneous
Package Contents:
- OptiPlex Small Form Factor Plus
- System Power Cord (US)
- Dell Pro Wireless Keyboard and Mouse
- USB Receiver
- Safety/Environment and Regulatory Guide (English/French Multi-language)
- Quick Start Guide, OptiPlex SFF Plus
Features:
- Security Slot
- Tool-less Access
Energy Star:
Yes
Country of Origin:
Mexico
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service with Hardware Support-Disti SnS
Item Numbers
GTIN:
0884116446682
UPC:
884116446682
EAN:
0884116446682
UNSPSC:
43211507
Frequently Asked Questions
What are the key specifications of the Dell OptiPlex 7010 Plus Desktop Computer?
The Dell 4R5N2 features an Intel Core i7-13700 16-core processor running at 2.10 GHz, 16 GB DDR5 RAM, and a 256 GB M.2 NVMe SSD for fast storage. It comes with Windows 11 Pro, Intel UHD Graphics 770, a DVD-Writer, and a 260 W power supply in a compact Small Form Factor chassis. We offer this model as a reliable workstation for warehouse management systems and logistics operations.
Is the Dell OptiPlex 7010 Plus suitable for warehouse management and inventory applications?
Yes, the Dell 4R5N2 is well-suited for warehouse and logistics environments with its 16-core i7-13700 processor and 16 GB DDR5 RAM, providing sufficient performance for running barcode scanning software, inventory management systems, and RFID applications. The Small Form Factor design makes it ideal for space-constrained warehouse offices and dock areas. Contact us today to discuss how this desktop integrates with your AIDC infrastructure.
What connectivity options does the Dell OptiPlex 7010 Plus provide?
The Dell 4R5N2 includes standard connectivity ports typical of the OptiPlex 7010 Plus line, supporting network connectivity for warehouse management systems and barcode scanner integration. For specific port configurations and compatibility with your barcode scanners or mobile computers, we recommend contacting our team at barcodesinc.com to ensure seamless integration with your existing AIDC setup.
Can the Dell OptiPlex 7010 Plus handle multiple barcode scanners and RFID readers simultaneously?
The Dell 4R5N2's 16-core i7-13700 processor and 16 GB DDR5 RAM provide robust multitasking capabilities for running multiple barcode scanning and RFID applications concurrently. This makes it suitable for central warehouse hubs managing data from multiple scanning devices across your facility. Visit barcodesinc.com or contact us today to discuss your specific AIDC device requirements and integration needs.
What operating system does the Dell OptiPlex 7010 Plus come with?
The Dell 4R5N2 comes pre-installed with Windows 11 Pro, which provides enterprise-level security features, remote management capabilities, and compatibility with most warehouse management and inventory tracking software. Windows 11 Pro is ideal for logistics operations requiring reliable performance and regular system updates.
Is the Dell OptiPlex 7010 Plus available for immediate shipment from Barcodes Inc?
We offer the Dell 4R5N2 OptiPlex 7010 Plus Desktop Computer as part of our comprehensive AIDC equipment portfolio. For current availability, pricing, and delivery options, visit barcodesinc.com or contact us today—our team can provide detailed information and help you configure the right solution for your warehouse operations.
