Application/Usage:
- Data Networking
- Optical Network

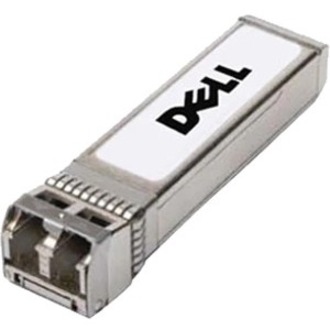

Dell 407-BCDU Transceiver Modules
Part Number:
407-BCDU
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell 407-BCDU Transceiver Modules Overview
The Dell™ SFP+ transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP+ (Small Form Factor Pluggable) footprint features a Duplex LC connector. The Dell networking 10GBase-SR SFP+ transceiver provides 10GbE connectivity up to 400 m .
Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC 10GBase-SR Duplex Network
Media & Performance
Media Type Supported:
Optical Fiber
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10GBase-SR
Maximum Distance Supported:
0.40 km
Physical Characteristics
Form Factor:
Hot-pluggable
Item Numbers
UNSPSC:
43201553
Frequently Asked Questions
What is the Dell 407-BCDU transceiver module used for?
The Dell 407-BCDU is a 10GBase-SR SFP+ transceiver module designed for high-speed data networking over optical fiber. It supports 10 Gigabit Ethernet connectivity with a maximum transmission distance of 0.40 km and features hot-pluggable LC duplex connectors for easy installation and replacement in network infrastructure.
What are the connectivity specifications of the Dell 407-BCDU?
The Dell 407-BCDU features a single LC duplex connector for optical fiber connectivity and supports 10GBase-SR (10 Gigabit Ethernet Short Range) protocol. It is designed for optical network applications and delivers 10 Gigabit Ethernet performance over short-range multimode fiber connections up to 0.40 km.
Is the Dell 407-BCDU hot-pluggable?
Yes, the Dell 407-BCDU is a hot-pluggable transceiver module, meaning it can be safely inserted or removed from network equipment without powering down the system. This feature enables quick replacement and network maintenance with minimal downtime in data center and warehouse environments.
What type of optical fiber does the Dell 407-BCDU require?
The Dell 407-BCDU is a 10GBase-SR module optimized for multimode optical fiber connections. The 0.40 km maximum distance specification indicates it is designed for short-range, high-speed data center and local area network applications using standard multimode fiber infrastructure.
Can the Dell 407-BCDU be used in warehouse management systems?
Yes, the Dell 407-BCDU can support warehouse and logistics network infrastructure that requires high-speed 10 Gigabit Ethernet connectivity for RFID systems, barcode scanning networks, and real-time inventory management. We offer this transceiver module as part of our comprehensive AIDC networking solutions—contact us today to discuss your warehouse connectivity needs.
Where can I purchase the Dell 407-BCDU transceiver module?
We offer the Dell 407-BCDU transceiver module as part of our complete line of networking and AIDC equipment. Visit barcodesinc.com or contact us today to check availability, pricing, and compatibility with your specific network infrastructure requirements.
