Application/Usage:
- Data Networking
- Optical Network
Dell 407-BBXT Accessory
Part Number:
407-BBXT
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell 407-BBXT Accessory Overview

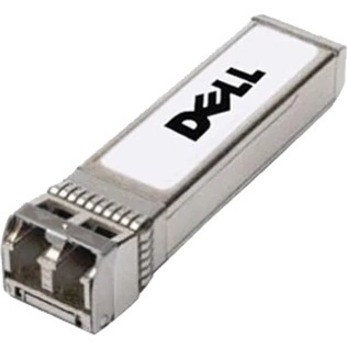

The Dell™ QSFP transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with QSFP (Quad Form Factor Pluggable) footprint features a Duplex LC connector. The Dell networking 40GbE Bidi QSFP transceiver provides 40GbE connectivity up to 150m.
Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC Duplex 40GBase-BiDi Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Ethernet Technology:
40 Gigabit Ethernet
Network Technology:
40GBase-BiDi
Physical Characteristics
Form Factor:
- Plug-in Module
- Hot-pluggable
Miscellaneous
Compatibility:
Dell EMC Switches:
- S4810-ON
- S4048T-ON
- S5232F-ON
- S5296F-ON
- S5248F-ON
- S5212F-ON
- S5224F-ON
Item Numbers
GTIN:
0884116381808
UPC:
884116381808
EAN:
0884116381808
UNSPSC:
43201553
Frequently Asked Questions
What are the specifications of the Dell 407-BBXT transceiver?
The Dell 407-BBXT is a 40GbE bidirectional QSFP transceiver designed for high-speed data networking. It features LC duplex connectors and supports multi-mode fiber with a range of 100m over OM3 fiber or 150m over OM4 fiber, making it ideal for enterprise network infrastructure requiring 40 Gigabit Ethernet connectivity.
Is the Dell 407-BBXT hot-pluggable?
Yes, the Dell 407-BBXT is a hot-pluggable module, allowing you to install or replace it without powering down your networking equipment. This design minimizes downtime during maintenance and upgrades in production environments.
What type of fiber connections does the Dell 407-BBXT support?
The Dell 407-BBXT uses LC duplex connectors and is compatible with multi-mode optical fiber. It supports both OM3 fiber (up to 100m) and OM4 fiber (up to 150m), providing flexibility for different network infrastructure requirements.
Can I use the Dell 407-BBXT for long-distance data center connections?
The Dell 407-BBXT is optimized for shorter-distance, high-speed connections within data centers and enterprise networks. With a maximum range of 150m over OM4 fiber, it's best suited for intra-data center connectivity rather than long-distance wide-area network applications.
What networking standard does the Dell 407-BBXT support?
The Dell 407-BBXT supports the 40GBase-BiDi standard, which enables bidirectional 40 Gigabit Ethernet transmission over a single fiber pair. This technology reduces fiber infrastructure costs while delivering enterprise-grade network performance.
