Application/Usage:
- Data Networking
- Optical Network

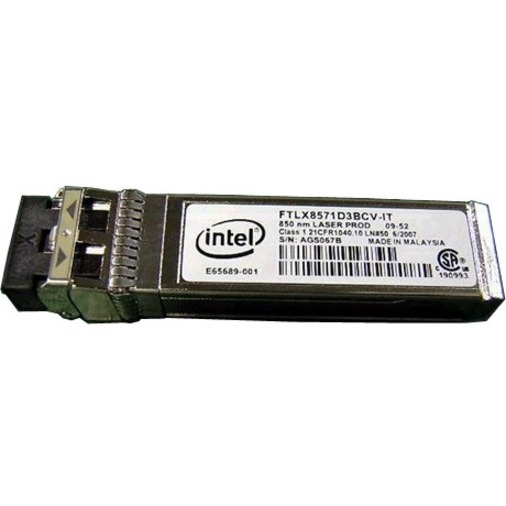

Dell 407-BBOK Transceiver Modules
Part Number:
407-BBOK
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell 407-BBOK Transceiver Modules Overview
The Dell™ SFP Transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint provides a full-duplex mode with up to 1.25 Gbps bi-directional data transfer rate. The transceiver complies with Gigabit Ethernet as IEEE STD 802.3z and IEEE Std 802.3ab. This product has been tested and validated on Dell systems to ensure it will work with your computer. It is supported by Dell Technical Support when used with a Dell system.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC Duplex 10GBase-SR Network
Media & Performance
Media Type Supported:
Optical Fiber
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10GBase-SR
Maximum Distance Supported:
0.50 km
Maximum Data Transfer Rate:
10 Gbit/s
Miscellaneous
Compatibility:
- Intel Ethernet Converged Network Adapter X520
- PowerEdge R220
- PowerEdge R320
- PowerEdge R415
- PowerEdge R420
- PowerEdge R430
- PowerEdge R510
- PowerEdge R515
- PowerEdge R520
- PowerEdge R530
- PowerEdge R610
- PowerEdge R620
- PowerEdge R630
- PowerEdge R710
- PowerEdge R715
- PowerEdge R720
- Poweredge R720xd
- PowerEdge R730
- PowerEdge R730XD
- PowerEdge R810
- PowerEdge R815
- PowerEdge R820
- PowerEdge R910
- PowerEdge R920
- PowerEdge T430
- PowerEdge T710
- PowerEdge VRTX
Item Numbers
GTIN:
0506016389936, 0884116252702, 4053162891005, 5397063819591
UPC:
506016389936, 884116252702
EAN:
0506016389936, 0884116252702, 4053162891005, 5397063819591
UNSPSC:
43201553
Frequently Asked Questions
What is the Dell 407-BBOK transceiver module used for?
The Dell 407-BBOK is a 10 Gigabit Ethernet optical transceiver module designed for high-speed data networking applications. It supports 10GBase-SR connectivity over optical fiber with a maximum transmission distance of 0.50 km, making it ideal for enterprise data center and network infrastructure deployments requiring fast, reliable optical connections.
Is the Dell 407-BBOK compatible with Intel X520 DA network cards?
Yes, the Dell 407-BBOK transceiver is specifically designed for use with Intel X520 DA 10GB Dual Port SFP+ NICs. It features LC Duplex connectors that are compatible with standard SFP+ network interfaces, ensuring seamless integration with your existing Intel-based networking infrastructure.
What type of optical fiber connection does this transceiver use?
The Dell 407-BBOK utilizes LC Duplex connectors for optical fiber connections, which are standard connectors in enterprise networking environments. The transceiver supports 10GBase-SR technology, which operates over multimode optical fiber for short-range, high-speed data transmission.
What is the maximum transmission distance for the Dell 407-BBOK?
The Dell 407-BBOK has a maximum transmission distance of 0.50 km (500 meters) over multimode optical fiber. This short-range capability makes it well-suited for intra-data center connections and enterprise network backbone applications where high speed and reliability are critical.
Can I use the Dell 407-BBOK for long-distance network connections?
No, the Dell 407-BBOK is optimized for short-range connections with a maximum distance of 0.50 km and is not suitable for long-distance networking. If you require extended transmission distances, you should consider 10GBase-LR or 10GBase-ER transceiver modules designed for longer-range optical transmission.
