Storage Capacity:
960 GB
Disk Format:
512e
Dell 400-BBPN Drive
Part Number:
400-BBPN
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

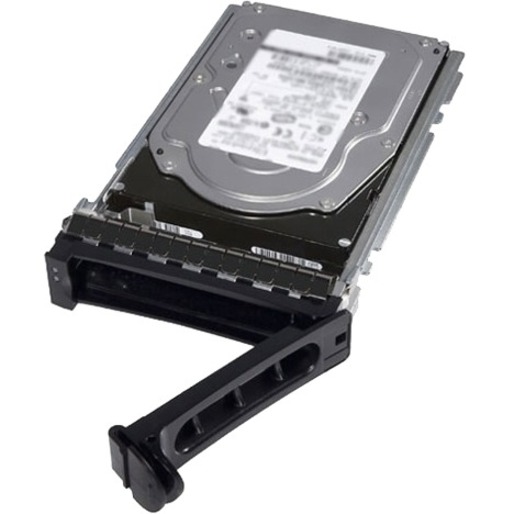

Dell 400-BBPN Drive Overview
Increase the storage capacity of your Dell™ System with 1.6TB Solid State Drive from Dell. It boasts a storage capacity of up to 1.6TB, enabling users to store large amounts of data. This drive delivers enhanced data transfer speed of up to 6Gbps.
- Offers up to 1.6TB storage capacity
- Equipped with SATA interface which delivers high data transfer rate
- Solid State design offers ruggedness and fast data access
Benefits of SSD over spin drives:
- More Durable: Feature a non-mechanical design of NAND flash mounted on circuit boards and are more shock resistant.
- Faster: Faster data access, boot ups, file transfers, and an overall quicker computing experience than hard drives.
- Quieter: Run at near silent operation unlike loud, whirring hard disc drives.
- Lighter: Flash-based SSDs weigh considerably less.
- Cooler: SSDs require little power to operate, resulting in less heat output by your system.
- More Efficient: Consume less power at peak load.
Technical Information
Drive Performance
Maximum Read Transfer Rate:
2100 MB/s
Maximum Write Transfer Rate:
1260 MB/s
Endurance (DWPD):
1
Endurance (TBW):
1752 TB
Endurance Type:
Read Intensive
Network & Communication
Wireless LAN:
No
Interfaces/Ports
Drive Interface:
SAS
Drive Interface Standard:
12Gb/s SAS
Power Description
Operating Power Consumption:
5 W
Physical Characteristics
Drive Type:
Internal
Form Factor:
2.5"
Hot Pluggable:
Yes
Height:
0.6"
Width:
2.8"
Depth:
4"
Weight (Approximate):
4.59 oz
Miscellaneous
Compatibility:
Dell Systems:
- PowerEdge R940
- PowerEdge R6515
- PowerEdge R940xa
- PowerEdge R7515
- BSN Recorder Node
- BSN Controller Node
- PowerEdge R6415
Device Supported:
Server
Item Numbers
GTIN:
0884116367741, 5397184526200
UPC:
884116367741
EAN:
0884116367741, 5397184526200
UNSPSC:
43201830
Frequently Asked Questions
What are the key specifications of the Dell PM5-R KPM5XRUG960G 960GB SSD?
The Dell PM5-R KPM5XRUG960G is a 2.5" internal SAS (12Gb/s) solid state drive with 960GB capacity, designed for read-intensive server applications. It delivers a maximum read transfer rate of 2100 MB/s, supports 1 DWPD (Drive Writes Per Day), and offers 1752 TB TBW (Total Bytes Written) for enterprise durability. The drive features hot-pluggable design and 512e format, making it ideal for high-performance server environments.
Is the Dell 400-BBPN drive compatible with my server?
The Dell PM5-R KPM5XRUG960G is a server-grade SAS drive that supports standard 2.5" internal drive bays with SAS connectivity. We recommend verifying your server's SAS interface support and available drive slots before purchase. Contact us today for compatibility verification with your specific server model.
What is the difference between DWPD and TBW ratings?
DWPD (Drive Writes Per Day) indicates how many times the entire drive capacity can be written daily over its warranty period—the Dell PM5-R supports 1 DWPD. TBW (Total Bytes Written) represents the total amount of data that can be written to the drive over its lifetime, which is 1752 TB for this model. Both metrics help determine the drive's endurance for your specific workload requirements.
What type of applications is this Dell SSD best suited for?
The Dell PM5-R KPM5XRUG960G is optimized for read-intensive server workloads where fast data retrieval is critical, such as database queries, web serving, and analytics applications. Its 2100 MB/s read speed and enterprise-grade reliability make it suitable for mission-critical environments requiring consistent performance. For write-heavy applications, we recommend consulting our team about alternative drive options available from us.
Does the Dell PM5-R drive support hot-swapping?
Yes, the Dell PM5-R KPM5XRUG960G features hot-pluggable design, allowing you to replace or upgrade the drive without powering down your server. This capability minimizes downtime during maintenance and drive replacements in production environments. Visit barcodesinc.com or contact us today for installation guidance and compatible drive bay configurations.
What storage capacity options are available for this Dell drive?
The Dell 400-BBPN is available with 960GB capacity in the PM5-R series. We offer a range of Dell storage solutions across different capacities and performance tiers to meet various enterprise requirements. Contact us today to explore other Dell SSD options or to discuss capacity recommendations for your infrastructure needs.
