Storage Capacity:
400 GB
Disk Format:
512n
Dell 400-ATGI Drive
Part Number:
400-ATGI
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

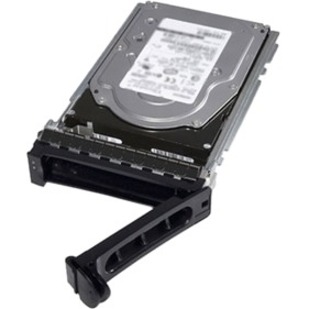

Dell 400-ATGI Drive Overview
Increase the storage capacity of your Dell™ System with 400 GB Solid State Hard Drive from Dell. It boasts a storage capacity of up to 400 GB, enabling users to store large amounts of data. This hard drive delivers enhanced data transfer speed of up to 12 Gbps .
- Offers up to 400 GB storage capacity
- Equipped with Serial Attached SCSI (SAS) interface which delivers high data transfer rate
- Solid State design offers ruggedness and fast data access
Benefits of SSD over spin drives:
- More Durable: Feature a non-mechanical design of NAND flash mounted on circuit boards, and are more shock resistant.
- Faster: Faster data access, boot ups, file transfers, and an overall quicker computing experience than hard drives.
- Quieter: Run at near silent operation unlike loud, whirring hard disc drives.
- Lighter: Flash-based SSDs weigh considerably less.
- Cooler: SSDs require little power to operate, resulting in less heat output by your system.
- More Efficient: Consume less power at peak load.
Technical Information
Drive Performance
Endurance (DWPD):
10
Endurance (TBW):
7300 TB
Endurance Type:
Write Intensive
Network & Communication
Wireless LAN:
No
Interfaces/Ports
Drive Interface:
SAS
Drive Interface Standard:
12Gb/s SAS
Physical Characteristics
Drive Type:
Internal
Form Factor:
2.5"
Drive Carrier:
Yes
Drive Carrier Width:
3.5"
Hot Swappable:
Yes
Hot Pluggable:
Yes
Miscellaneous
Compatibility:
Dell PowerEdge Servers:
- R640
- R740XD
- R740
- C6420
Device Supported:
Server
Item Numbers
GTIN:
5397184060643
EAN:
5397184060643
UNSPSC:
43201830
Frequently Asked Questions
What are the storage specifications for the Dell 400-ATGI drive?
The Dell 400-ATGI is a 400 GB solid state drive with a 2.5" form factor and 3.5" carrier, designed for write-intensive server applications. It features a 10 DWPD (Drive Writes Per Day) rating with 7300 TB TBW (Terabytes Written) total endurance, making it suitable for demanding data center environments. The drive uses SAS (12Gb/s) connectivity and supports 512n format for optimal performance.
Is the Dell 400-ATGI drive hot swappable?
Yes, the Dell 400-ATGI drive is both hot swappable and hot pluggable, allowing you to replace or upgrade the drive without powering down your server. This feature minimizes downtime and makes maintenance operations more efficient in production environments. We offer this drive for immediate deployment in compatible Dell server systems.
What server systems support the Dell 400-ATGI drive?
The Dell 400-ATGI is designed as a server device with SAS connectivity and a 3.5" carrier form factor, making it compatible with Dell PowerEdge servers and other enterprise systems that support 2.5" SAS drives. The 12Gb/s SAS interface ensures compatibility with modern Dell server architectures. Contact us today to verify compatibility with your specific server model and configuration needs.
What makes the Dell 400-ATGI suitable for write-intensive workloads?
The Dell 400-ATGI is engineered specifically for write-intensive applications with a 10 DWPD rating and 7300 TB TBW endurance rating, meaning it can handle substantial daily write operations over an extended lifespan. This makes it ideal for database servers, transactional systems, and other applications that generate heavy write traffic. Visit barcodesinc.com to explore our full range of enterprise storage solutions.
What interface does the Dell 400-ATGI use and what are its speed capabilities?
The Dell 400-ATGI utilizes a 12Gb/s SAS (Serial Attached SCSI) interface, which provides high-speed data transfer suitable for enterprise server environments. The SAS interface is the industry standard for reliable, hot-swappable storage in data centers and supports multiple concurrent connections. This connectivity standard ensures compatibility with enterprise-grade storage controllers and management systems.
What is the physical form factor of the Dell 400-ATGI drive?
The Dell 400-ATGI is a 2.5" internal solid state drive that comes with a 3.5" carrier, allowing it to fit into standard 3.5" drive bays commonly found in Dell PowerEdge servers and compatible systems. The carrier design simplifies installation and ensures proper alignment and cooling within the server chassis. Contact us today if you need assistance selecting the right drive configuration for your server infrastructure.
