Storage Capacity:
960 GB
Disk Format:
512e
Dell 345-BCDH Drive
Part Number:
345-BCDH
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

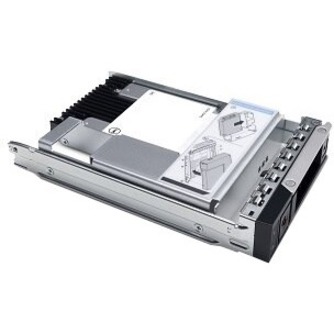

Dell 345-BCDH Drive Overview
Increase the storage capacity of your Dell™ System with 960GB Solid State Drive from Dell. It boasts a storage capacity of up to 960GB, enabling users to store large amounts of data.
- Offers up to 960GB storage capacity
- Equipped with SATA interface which delivers high data transfer rate
- Solid State design offers ruggedness and fast data access
Benefits of SSD over spin drives:
- More Durable: Feature a non-mechanical design of NAND flash mounted on circuit boards and are more shock resistant.
- Faster: Faster data access, boot ups, file transfers, and an overall quicker computing experience than hard drives.
- Quieter: Run at near silent operation unlike loud, whirring hard disc drives.
- Lighter: Flash-based SSDs weigh considerably less.
- Cooler: SSDs require little power to operate, resulting in less heat output by your system.
- More Efficient: Consume less power at peak load.
Technical Information
Drive Performance
Endurance (DWPD):
1
Endurance Type:
Read Intensive
Network & Communication
Wireless LAN:
No
Interfaces/Ports
Drive Interface:
SAS
Drive Interface Standard:
12Gb/s SAS
Physical Characteristics
Rugged:
Yes
Drive Type:
Internal
Form Factor:
2.5"
Drive Carrier:
Yes
Drive Carrier Width:
3.5"
Durability:
Shock Resistant
Miscellaneous
Compatibility:
- PowerEdge C6420
- PowerEdge C6520
- PowerEdge C6525
- PowerEdge R240
- PowerEdge R440
- PowerEdge R540
- PowerEdge R640
- PowerEdge R650
- PowerEdge R6515
- PowerEdge R6525
- PowerEdge R740
- PowerEdge R740XD
- PowerEdge R740xd2
- PowerEdge R750
- PowerEdge R750XA
- PowerEdge R7515
- PowerEdge R7525
Device Supported:
Server
Item Numbers
GTIN:
0884116463450, 5397184756119
UPC:
884116463450
EAN:
0884116463450, 5397184756119
UNSPSC:
43201830
Frequently Asked Questions
What are the specifications of the Dell 345-BCDH drive?
The Dell 345-BCDH is a 960 GB rugged solid state drive with a 2.5" form factor designed for server environments. It features SAS (12Gb/s) connectivity, operates as a read-intensive drive with 1 DWPD (Drive Writes Per Day), and includes a 3.5" carrier for compatibility with standard server bays. The drive uses 512e format for enhanced performance and reliability in data center applications.
Is the Dell 345-BCDH compatible with my server?
The Dell 345-BCDH is specifically designed for server devices and uses industry-standard SAS (12Gb/s) connectivity, making it compatible with most modern enterprise servers that support 2.5" SAS drives. The included 3.5" carrier allows installation in standard server drive bays. Contact us today to verify compatibility with your specific server model and configuration.
What makes the Dell 345-BCDH suitable for data center environments?
The Dell 345-BCDH is engineered as a rugged, read-intensive SSD optimized for demanding server workloads in data centers and warehouse operations. Its 1 DWPD rating and enterprise-grade SAS interface ensure reliable performance under continuous operation, while the solid-state design provides faster data access and improved reliability compared to traditional hard drives. This makes it ideal for logistics management systems and inventory databases that require high availability.
What is the difference between read-intensive and write-intensive SSD drives?
Read-intensive drives like the Dell 345-BCDH are optimized for applications where data is accessed frequently but written less often, making them ideal for databases, caching, and analytics workloads common in warehouse management systems. Write-intensive drives are designed for environments with heavy write operations. The Dell 345-BCDH's read-intensive profile provides excellent performance and endurance for typical server applications while offering better cost efficiency.
Does the Dell 345-BCDH come with a carrier, and will it fit my server?
Yes, the Dell 345-BCDH includes a 3.5" carrier that allows the 2.5" drive to be installed in standard 3.5" server drive bays, ensuring compatibility with most enterprise servers. This carrier design simplifies installation and ensures proper drive alignment and cooling. We offer this drive with the carrier included, ready for deployment in your infrastructure.
What storage capacity does the Dell 345-BCDH provide?
The Dell 345-BCDH delivers 960 GB of storage capacity, providing substantial space for server applications, databases, and enterprise data storage needs. This capacity is ideal for mid-to-large scale deployments in warehouses and logistics operations where reliable, fast data access is critical. Visit barcodesinc.com to explore this drive and other enterprise storage solutions available from us.
