Dell 342-3537 Accessory

Part Number: 342-3537
Model: Parts
$358.26

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Host Interface
PCI Express 2.0 x8
Controller Type
6Gb/s SAS
RAID Supported
Yes
RAID Levels
0156105060

Product Description:

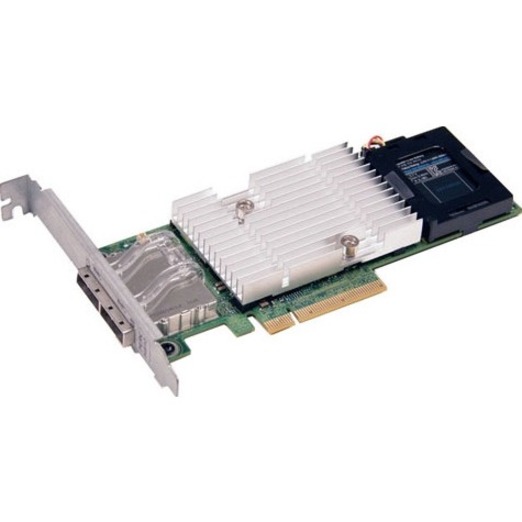

  Dell PERC H810 Adapter RAID Controller Card - 6Gb/s SAS - PCI Express 2.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60 RAID Level - 2 x SFF-8088 - 8 Total SAS Port(s) - 8 SAS Port(s) External - Linux, PC - 1 GB

Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview

Products and parts from Dell.
Dell 342-3537 Accessory Overview
The PERC H810, Premium External RAID controller from DellTM, is based on LSI´s Thunderbolt (2208) ROC, which offers dual PPC 800 MHz cores, along with 6Gb/s SAS, 1333 DDR3 cache and PCIe 2.0 interface support. The PERC H810 operates on PERC 8.0 FW Stack and supports RAID Levels 0, 1, 10, 5, 50, 6, and 60.

The PERC H810 is available in either Low profile or Full Height Adapter form. The PERC H810 only supports External Storage and is targeted at Premium Enterprise customers. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.
Technical Information
Host Interface:
PCI Express 2.0 x8
Controller Type:
6Gb/s SAS
RAID Supported:
Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 6
  • 10
  • 50
  • 60
Memory
Cache Memory:
1 GB
Interfaces/Ports
Total Number of SAS Ports:
8
Number of SAS Ports (External):
8
SAS Connector Details:
2 x SFF-8088
Physical Characteristics
Height:
2.5"
Depth:
6.6"
Form Factor:
Plug-in Card
Miscellaneous
Platform Supported:
  • Linux
  • PC
Item Numbers
GTIN: 0080479608464
UPC: 080479608464
EAN: 0080479608464
UNSPSC: 43201556
