Application/Usage:
- Optical Network
- Data Networking

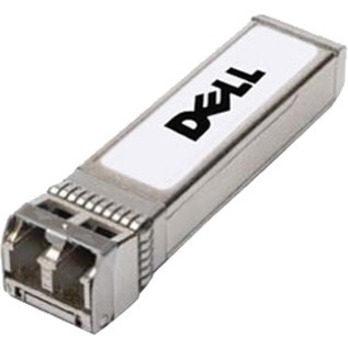

Dell 331-5311 Transceiver Modules
Part Number:
331-5311
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell 331-5311 Transceiver Modules Overview
The Dell™ Networking 10GBASE-SR SFP+ transceiver provides 10GbE connectivity up to 400m. For use in qualified Dell Networking switches.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC Duplex 10GBase-SR Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10GBase-SR
Miscellaneous
Compatibility:
Dell PowerConnect Switches:
- 6224
- 6224P
- 6248
- 6248P
- 7024
- 7024F
- 7024P
- 7048
- 7048P
- 7048R
- M6348
Item Numbers
UNSPSC:
43201553
Frequently Asked Questions
What is the Dell 331-5311 transceiver module used for?
The Dell 331-5311 is a 10GBase-SR SFP+ transceiver module designed for high-speed optical networking and data center applications. It operates at 10 Gigabit Ethernet speeds over multi-mode optical fiber with an 850nm wavelength, making it ideal for warehouse management systems, logistics networks, and enterprise data centers requiring reliable short-reach optical connectivity.
What is the maximum transmission distance for the Dell 331-5311?
The Dell 331-5311 supports a maximum reach of 400 meters over multi-mode optical fiber. This distance is suitable for intra-data center connections and campus network deployments, making it an excellent choice for medium-range optical networking requirements in warehouse and logistics environments.
What type of connector does the Dell 331-5311 use?
The Dell 331-5311 features an LC Duplex connector, which is the industry-standard connector type for SFP+ transceivers. This connector type ensures compatibility with most modern optical networking equipment and infrastructure available from us at Barcodes Inc.
Is the Dell 331-5311 compatible with my existing network infrastructure?
The Dell 331-5311 is compatible with any networking equipment that supports 10GBase-SR SFP+ transceivers with LC Duplex connectors and multi-mode fiber optics. We recommend verifying your specific hardware specifications before ordering. Contact us today to confirm compatibility with your existing systems.
What wavelength does the Dell 331-5311 operate at?
The Dell 331-5311 operates at an 850nm wavelength, which is the standard for short-reach 10 Gigabit Ethernet over multi-mode optical fiber. This wavelength is optimized for cost-effective, high-performance data transmission in enterprise networks and data centers.
Can I use the Dell 331-5311 for single-mode fiber connections?
No, the Dell 331-5311 is specifically designed for multi-mode optical fiber only and is not compatible with single-mode fiber installations. If you require single-mode transceiver modules or have questions about your specific fiber infrastructure, visit barcodesinc.com or contact us today for expert guidance on selecting the right optical networking solution.
