Release Year:
2024
Dell 2PTC6 Desktop PC
Part Number:
2PTC6
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell 2PTC6 Desktop PC Overview

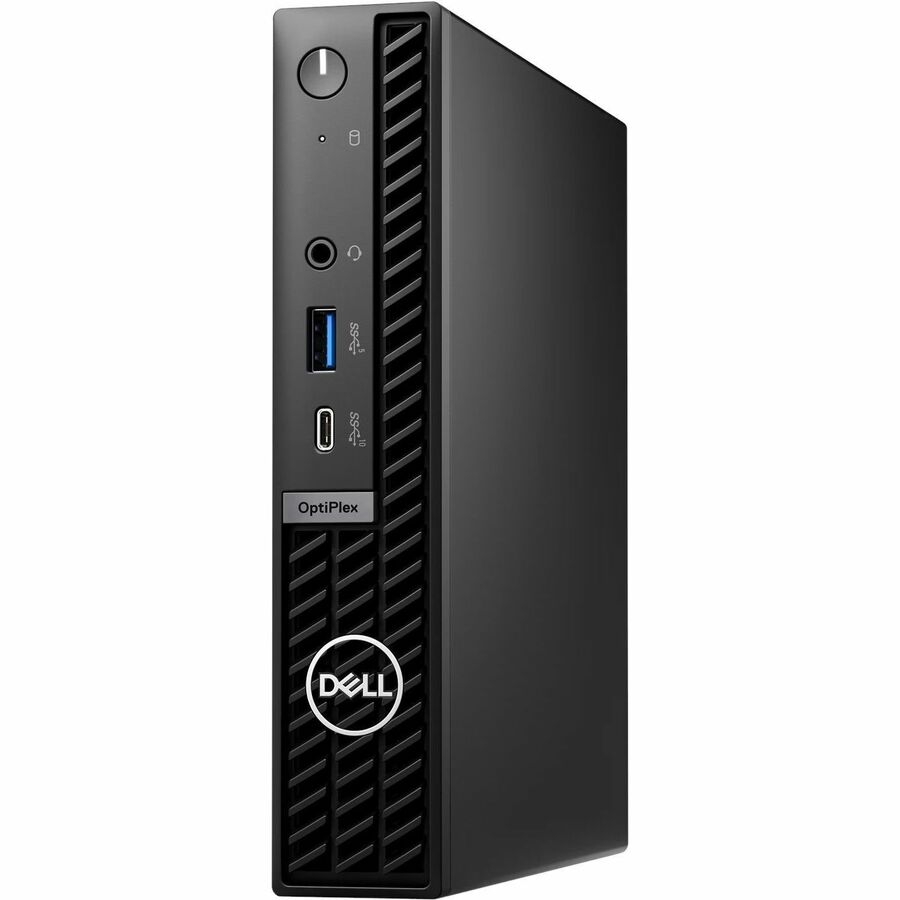

With the most versatile mounting options from OptiPlex, the Micro Form Factor offers maximum productivity in an ultra-compact desktop. Flexible "All-in-One" solutions with the Micro All-in-One Stand and custom mounts keep your desk clutter-free without impacting performance. Features an Intel Core processor, three native DisplayPorts and two M.2 SSD slots, both of which support Gen 4 speeds.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Generation:
14th Gen
Processor Model:
i5-14500
Processor Core:
Tetradeca-core (14 Core)
Processor Threads:
20
Processor Speed:
2.60 GHz
Maximum Turbo Speed:
5 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 16GB
Total Number of Memory Slots:
2
Number of Occupied Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
UHD Graphics 770
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Bluetooth:
Yes
Input Devices
Keyboard Localization:
English (US)

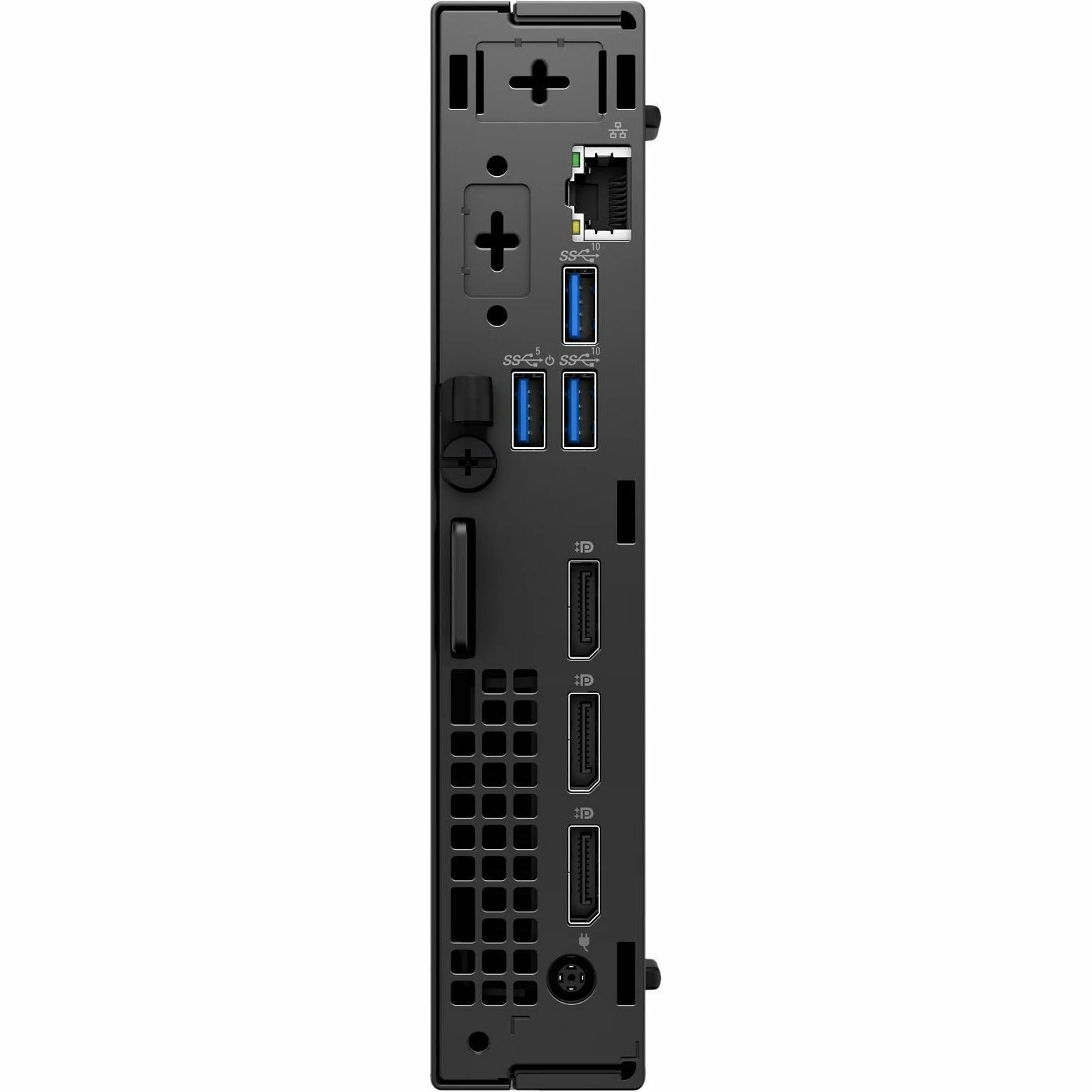

Interfaces/Ports
Number of HDMI Outputs (Rear):
1
Total Number of USB Ports:
5
Number of USB 3.2 Gen 1 Ports:
1
Number of USB 3.2 Gen 2 Ports:
3
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
3
DisplayPort (Rear):
Yes
Optional Ports:
1 video port (HDMI 2.1/DisplayPort 1.4a/VGA/USB Type-C with DisplayPort Alt mode) (optional) 1 PS2/Serial port (optional)
Details regarding optional ports aggregated from the information available for this product's family/series
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
180 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Micro PC
Height:
7.2"
Width:
1.4"
Depth:
7"
Weight (Approximate):
2.89 lb
Miscellaneous
Package Contents:
- OptiPlex Micro (Plus 7020)
- Quick Start Guide
- Power Cord (US)
- Safety/Environment and Regulatory Guide (English/French Multi-language)
- Wireless Mouse
- Wireless Keyboard
- USB Reciever
Features:
Security Slot
Energy Star:
Yes
TAA Compliant:
No
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116462460
UPC:
884116462460
EAN:
0884116462460
UNSPSC:
43211507
Frequently Asked Questions
What are the key specifications of the Dell OptiPlex 7000 7020 Plus?
The Dell OptiPlex 7000 7020 Plus features an Intel Core i5 14th Gen i5-14500 processor with vPro Technology, 16 GB of DDR5 SDRAM, and a 512 GB SSD for fast storage and performance. It comes with Windows 11 Pro, Intel UHD Graphics 770, and a 180 W power supply in a compact micro PC form factor. We offer this model with IEEE 802.11ax wireless connectivity and an English (US) keyboard for immediate deployment.
Is the Dell 2PTC6 suitable for warehouse and logistics operations?
Yes, the OptiPlex 7000 7020 Plus is well-suited for warehouse management and logistics environments with its compact micro PC design, robust Intel vPro Technology for remote management, and multiple connectivity options including Ethernet and wireless LAN. The 16 GB RAM and SSD storage provide reliable performance for running warehouse management systems and inventory applications. Contact us today to configure this system for your specific logistics workflow requirements.
What connectivity options does the Dell 2PTC6 desktop provide?
The Dell OptiPlex 7000 7020 Plus includes IEEE 802.11ax wireless LAN for modern network connectivity and supports standard Ethernet connections. It features multiple USB ports, HDMI output, and a stereo headphone/microphone combo jack for flexible peripheral integration in warehouse and office environments. We can help you select additional connectivity modules if your operation requires expanded I/O options—visit barcodesinc.com or contact us today for configuration assistance.
Does this Dell desktop support remote management features?
Yes, the Dell OptiPlex 7000 7020 Plus includes Intel vPro Technology, which provides advanced remote management capabilities for IT teams managing distributed warehouse and logistics operations. This allows for secure remote access, asset management, and system monitoring without requiring physical access to the device. We recommend vPro-enabled systems for enterprises needing centralized IT control—contact us today to discuss your remote management needs.
What is the form factor and physical footprint of the Dell 2PTC6?
The Dell OptiPlex 7000 7020 Plus is a micro PC form factor, making it ideal for space-constrained warehouse offices, shipping areas, and logistics facilities where desk space is limited. Its compact design does not compromise on performance or connectivity, allowing you to deploy powerful computing in tight spaces. Visit barcodesinc.com to view detailed dimensions and discuss placement options for your facility.
What operating system and security features does this Dell desktop include?
The Dell OptiPlex 7000 7020 Plus comes pre-installed with Windows 11 Pro, providing enterprise-grade security and compatibility with warehouse management and logistics software. It includes TPM security features and supports optional SmartCard readers and fingerprint authentication for secure user access in multi-user warehouse environments. We offer this system fully configured and ready for deployment—contact us today to discuss security requirements for your operation.
The Dell 2PTC6 Desktop PC is also known as
VEL-2PTC6
