Dell 1JV7V Desktop PC
Part Number:
1JV7V
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

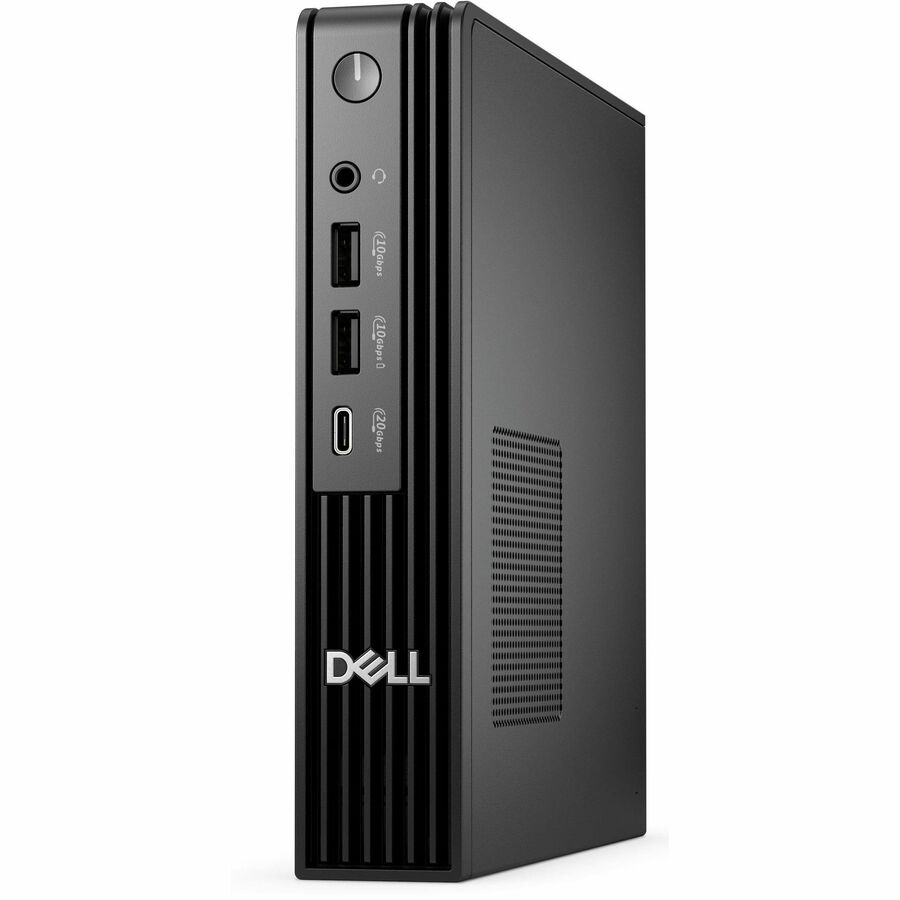

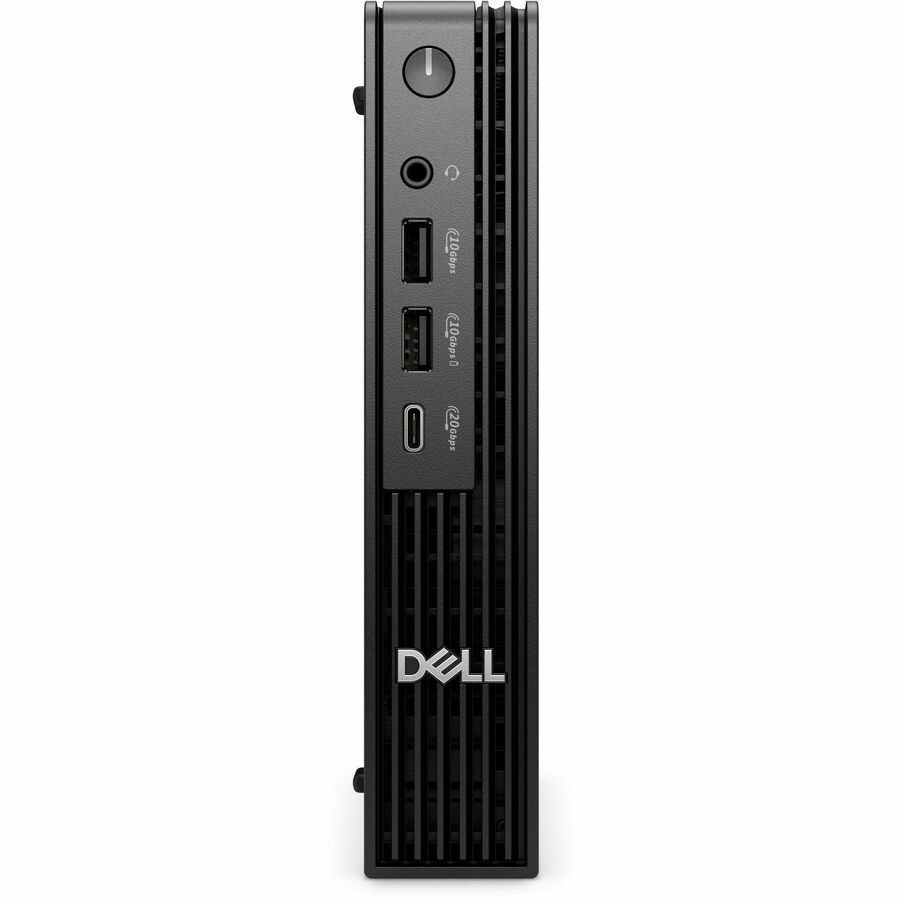

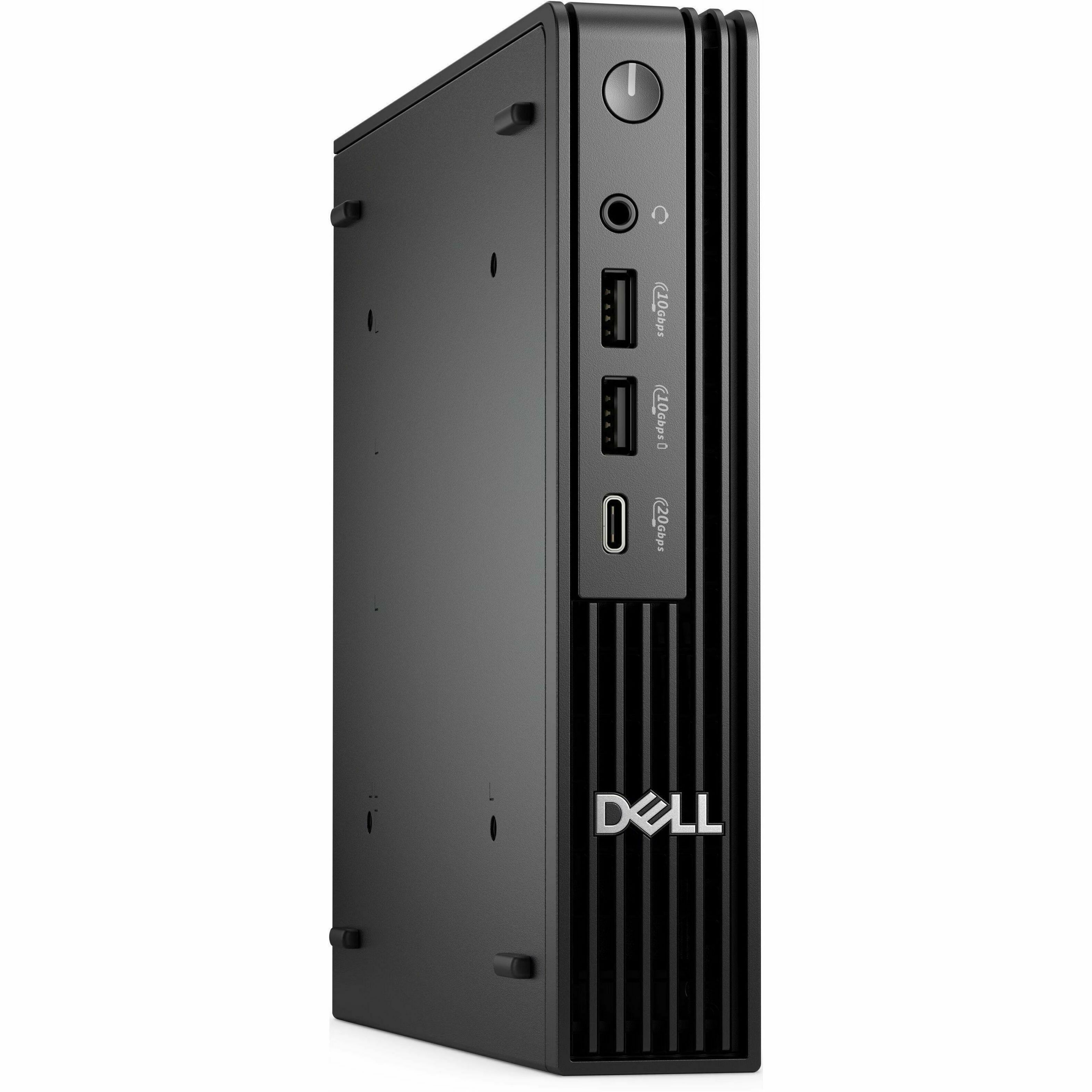

Dell 1JV7V Desktop PC Overview
Big power. Small footprint.
The ultracompact desktop designed to fit seamlessly into any workspace, available with AI PC options for AI enhanced productivity.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 5
Processor Model:
235
Processor Core:
Tetradeca-core (14 Core)
Processor Threads:
14
Processor Speed:
3.40 GHz
Maximum Turbo Speed:
5 GHz
vPro Technology:
Yes
NPU Manufacturer:
Intel
NPU Name:
AI Boost
NPU Performance:
13 TOPS
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 16GB
Number of Occupied Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
No
Input Devices
Keyboard Localization:
English (US)

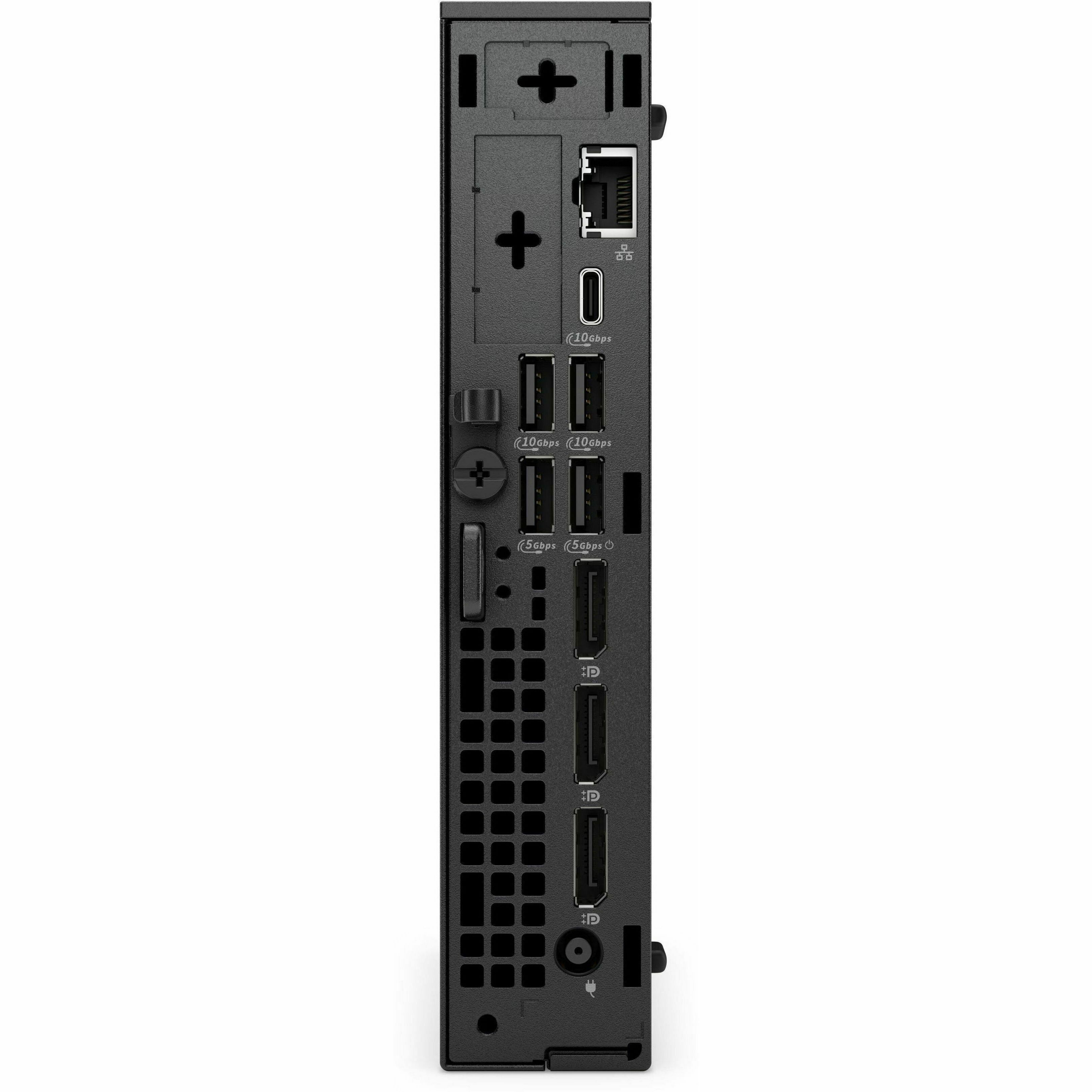

Interfaces/Ports
Total Number of USB Ports:
8
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
4
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
USB Type-C (Rear):
Yes
USB Type-C Detail:
1 USB 3.2 Gen 2 (10 Gbps) Type-C® port
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
3
DisplayPort (Rear):
Yes
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 optional module port (Thunderbolt 4 with DisplayPort™2.1 + USB 3.2 Gen 2 Type-C®/HDMI 2.1 FRL/DisplayPort™2.1 (UHBR20)/VGA/USB Type-C®with DisplayPort™Alt Mode/2 USB 3.2 Gen 2/PS2 and Serial/Serial Module/5G Optical Fiber/5GbE LAN NIC)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
180 W
Physical Characteristics
Form Factor:
Micro PC
Height:
7.2"
Width:
1.4"
Depth:
7"
Weight (Approximate):
3.15 lb
Miscellaneous
Package Contents:
- Pro Micro Plus QBM1250
- Keyboard
- Mouse
- Quick Start Guide
- Power Cord (US)
- Documentation
- AC Adapter
Systems Management:
No vPro Support
Features:
Security Slot
Energy Star:
Yes
Country of Origin:
Mexico
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116487821
UPC:
884116487821
EAN:
0884116487821
UNSPSC:
43211507
Frequently Asked Questions
What processor does the Dell 1JV7V Desktop PC use?
The Dell 1JV7V features an Intel Core Ultra 5 235 processor with vPro Technology, designed for business-class performance and advanced security management. This processor is paired with 16 GB of DDR5 SDRAM to handle demanding warehouse and logistics applications. We offer this system for organizations requiring reliable computing power for inventory management and data processing tasks.
Is the Dell 1JV7V suitable for warehouse management systems?
Yes, the Dell 1JV7V is well-suited for warehouse environments with its Windows 11 Pro operating system, vPro management capabilities, and robust 512 GB SSD storage for running warehouse management software. The compact micro PC form factor makes it ideal for space-constrained logistics facilities and control rooms. Contact us today to discuss how this system integrates with your existing AIDC infrastructure.
What connectivity options are available on the Dell 1JV7V?
The Dell 1JV7V provides multiple connectivity options including USB ports, HDMI output, and network connectivity via RJ-45 connector for seamless integration with barcode scanners, label printers, and other AIDC devices. The system supports both wired and wireless connections depending on your facility's network requirements. Visit barcodesinc.com to explore compatible peripherals and docking solutions available from us.
What is the power consumption and efficiency rating of the Dell 1JV7V?
The Dell 1JV7V operates with a 180 W power supply and is designed for energy efficiency in business environments. The system meets ENERGY STAR and EPEAT environmental standards, helping reduce operational costs in warehouse and logistics facilities. Our team can help you calculate total cost of ownership when deploying these systems across your operations.
Does the Dell 1JV7V support security features for sensitive warehouse data?
Yes, the Dell 1JV7V includes Intel vPro Technology with advanced security and management features, providing encryption capabilities and remote management for protecting sensitive inventory and logistics data. The system supports optional security modules for additional data protection in compliance-heavy environments. Contact us today for information about security configurations available from us.
What warranty and support options come with the Dell 1JV7V?
The Dell 1JV7V includes a 1-year limited warranty covering parts, labor, and on-site repair services. We offer extended support options and can provide configuration assistance to ensure the system meets your warehouse management requirements. Visit barcodesinc.com or contact us today to discuss support packages tailored to your logistics operation.
The Dell 1JV7V Desktop PC is also known as
VEL-1JV7V
