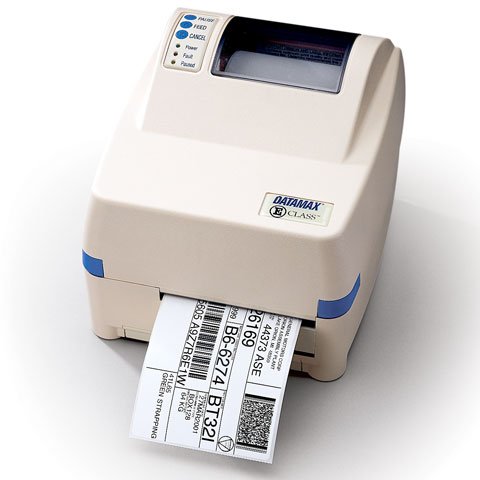

Datamax J13-00-1J000U00 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax E-4304 - Thermal transfer, 300 dpi, 4 ips, 4.1" print width, parallel, serial, & USB interfaces, 2MB DRAM, 1MB flash. Includes US power cord. Order cables separately. See accessories.
A small, compact, thermal printer designed for a variety of on- demand printing applications.

The E-4304 is a small, compact, thermal printer designed for a variety of on-demand printing applications requiring more definition than 203 dpi. In addition to a 4.1" print width, serial and parallel communication interfaces, the E-4304 includes a 300 dpi printhead, 4 ips print speed, and casework to accommodate a 5" outside diameter roll of labels. The E-4304 can print a variety of labels ranging from small office shipping labels to postal and transportation labels. Moreover, with 300 dpi, the E-4304 can also print complex 2D barcode symbologies including PDF417, Datamatrix, MaxiCode, and QRCode. Developed in response to customer requirements, the E-4304 printer includes all the features needed to make it a perfect choice for your high resolution, low to medium volume, desktop labeling needs. All units ship with product documentation.

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 4 lps
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
  • Media Sensor:
    • See Through
    • Reflective
  • Printer Language: DPL
  • Input Voltage Range: 110 to 220 V AC
  • RAM Memory: 2MB
  • Flash Memory: 1MB

General Information

Physical Characteristics

  • Dimensions:
    • 7.05" (179.07mm) x 8.77" (222.76mm) x 10" (254mm)
    • 7.05" (179.07mm) x 8.77" (222.76mm) x x 10" (254mm)
  • Weight: 5.2 lb (2.36 kg) - Printer

Environmental Conditions

  • Temperature: 4°C (39°F) to 35°C (95°F) Operating

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax
Model E-4304
Print Method Thermal Transfer
Interface Options Serial, Parallel, USB
Printer Type Desktop
Print Resolution 305 dpi
Max Label Width 4.30
Label Core 1 inch
Maximum Print Width 4.10
Print Speed 4
Max Roll Outer Diameter 5
Printer Mobility Not Mobile
Ribbon Core 0.5


Customer Review Summary

Recommended Accessories for Model: Datamax E-4304 Printer
Datamax-O'Neil DMXREW1 (DPO78-2394-01)
External Rewinder, up to 4.5 inch label width. Replacement for (Part# 78-2391-01)
In Stock: Ships Same Day
$427.80
+ Add to Quote
Datamax-O'Neil (DPO32-2300-01)
Cable, Serial, 9-pin, PC to Printer, Compatible with All Datamax-O'Neil Printers.
In Stock: Ships Same Day
$38.30
+ Add to Quote
Datamax-O'Neil Platen Roller (DPO13-2311-01)
Roller Platen, 12 MM E4203
In Stock: Ships Same Day
$26.50
+ Add to Quote
Datamax-O'Neil (OPT78-2399-01)
Light Duty Cutter (for E-Class Printers)
Ships in 3-5 Days
$207.90
+ Add to Quote
Datamax-O'Neil (OPT78-2340-01)
Thermal transfer Option for the E-4203 (Makes DT Into TT)
Ships in 3-5 Days
$85.50
+ Add to Quote
Recommended Labels for Model: Datamax E-4304 Printer
Datamax-O'Neil E 4304 (20-2213-01)
Replacement Printhead Kit, 300 dpi, Compatible Printer Model E 4304
Ships in 3-5 Days
$215.80
+ Add to Quote
Recommended Ribbons for Model: Datamax E-4304 Printer
Datamax-O'Neil GPR Plus Premium Wax (226455)
3.5" x 360' Black Wax Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with paper labels. Also available as a single roll (Part# 226455-R).
In Stock: Ships Same Day
$190.00
+ Add to Quote
Datamax-O'Neil PGR Plus Premium Wax-Resin (226855)
3.5" x 360' Black Wax-Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 226855-R).
Ships in 3-5 Days
$268.60
+ Add to Quote
Datamax-O'Neil PGR Plus Premium Wax-Resin (226853)
2.5" x 360' Black Wax-Resin Ribbon. Compatible with Desktop Printers. 48 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 226853-R).
Ships in 3-5 Days
$384.20
+ Add to Quote
Datamax-O'Neil SDR Resin (226753)
2.5" x 360' Black Resin Ribbon. Compatible with Desktop Printers. 48 ribbon case. Used with polyester labels. Also available as a single roll (Part# 226753-R).
Ships in 3-5 Days
$748.80
+ Add to Quote
Datamax-O'Neil GPR Plus Premium Wax (226453)
2.5" x 360' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 48, Core Size: 0.5", Available as a single roll (226453-R)
Ships in 3-5 Days
$271.20
+ Add to Quote
Recommended Printheads for Model: Datamax E-4304 Printer
Datamax-O'Neil I-Class (PHD20-2181-01)
Replacement Printhead Kit, 203 dpi, Compatible Printer Model I-Class
In Stock: Ships Same Day
$359.20
+ Add to Quote
Datamax-O'Neil M-4210 (PHD20-2260-01)
Replacement Printhead Kit, 203 dpi, Compatible Printer Model M-4210
In Stock: Ships Same Day
$387.10
+ Add to Quote
Datamax-O'Neil I-4308 (PHD20-2182-01)
Replacement Printhead Kit, 300 dpi, Compatible Printer Model I-4308
In Stock: Ships Same Day
$454.10
+ Add to Quote
Datamax-O'Neil M-4206 & M-4208 (PHD20-2220-01)
Replacement Printhead Kit, 203 dpi, Compatible Printer Model M-4206 & M-4208
In Stock: Ships Same Day
$369.00
+ Add to Quote
Datamax-O'Neil h-4606 (PHD20-2243-01)
Replacement Printhead Kit, 609 dpi, Compatible Printer Model h-4606
In Stock: Ships Same Day
$889.20
+ Add to Quote

The Datamax J13-00-1J000U00 is also known as Datamax-Pioneer DMX-E4304U or J13001J000U00 .
