Datamax-O'Neil XA1-00-08001000 Barcode Printer


(No reviews)

Be the first to

Write a Review

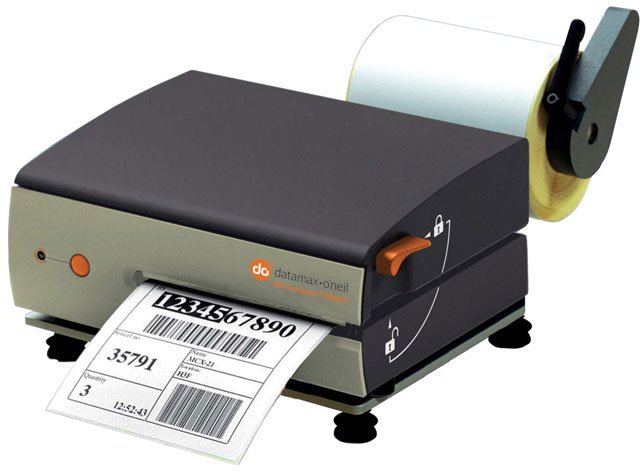

Datamax-O'Neil MP Compact4 Mark II - PRINTER, megapixel COMPACT4, DIRECT THERMAL, SERIAL/PARALLEL/USB, Real-time clock, 4MB FLASH/8MB DRAM, 200 dpi PRINTER, 5 IPS, PLZ
One-handed media loading is the easiest in the industry

The Datamax-O-Neil MP Compact4 Mark II is a powerful response to desktop thermal printing requirements, and ideal for on-demand printing especially where space is limited. The printer is ideal at the front desk of a hospital or in the box office of a movie theatre. Able to deliver continuous operation, the MP Compact4 Mark II is the printer of choice whenever ease of use, reliability and high performance are a must. The MP Compact4 Mark II features direct thermal printing with a media width of up to 4.5", and prints at 5" per second at either 200 or 300 dpi. Interfaces include serial, USB and Ethernet.

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 200 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • QR Code
    • PDF-417
    • Data Matrix
    • Maxi Code
    • EAN-13

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: MP
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: Compact4
  • Product Name: MP Compact4 Mark II Label Printer
  • Product Line: Compact

Physical Characteristics

  • Height: 4.1"
  • Width: 9.1"
  • Depth: 10.2"
  • Form Factor: Desktop
  • Weight (Approximate): 7.70 lb


  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Fanfold
    • Tag
    • Ticket
    • Gap
    • Notch
    • Black Mark
  • Media Thickness: 7.10 mil
  • Media Sensor: Transmissive Media Sensor
  • Maximum Roll Diameter: 5.90"

Fonts & Emulation

  • Language Emulation:
    • DPL
    • PLB
    • PLI
    • PLZ

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply


  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet


  • Platform Supported: PC


  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model MP Compact4 Mark II
Maximum Print Width 4.10
Print Method Direct Thermal
Interface Options USB, Serial, Ethernet
Printer Type Desktop
Print Resolution 203 dpi
Label Core 1.5 inches
Print Speed 5
Max Label Width 4.50
Max Roll Outer Diameter 5.9
Printer Mobility Not Mobile
