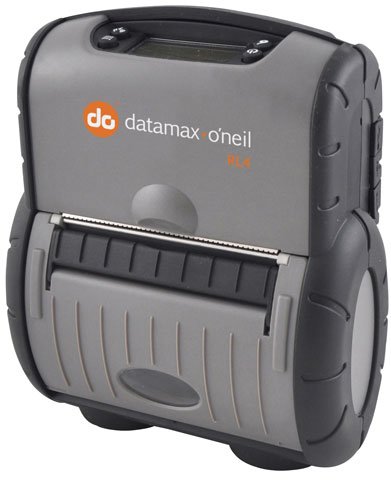

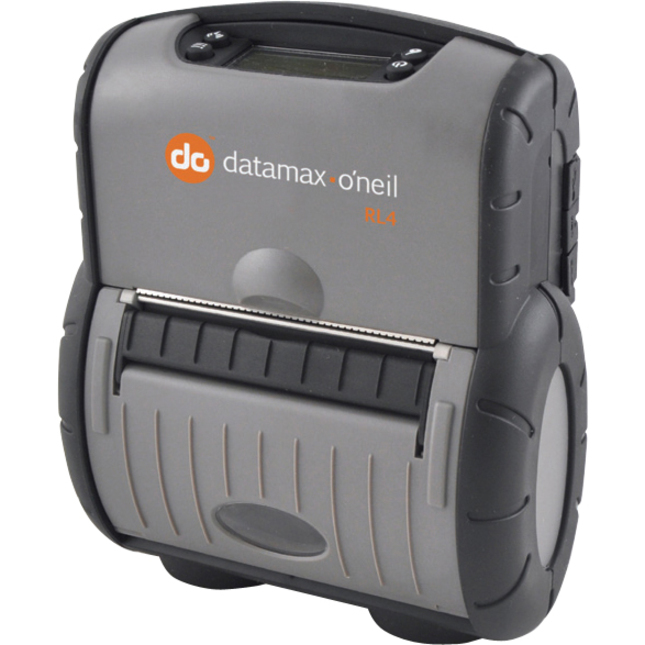

Datamax-O'Neil RL4-DP-00100210 Portable Barcode Printer


5.0

(1 reviews)

Datamax-O'Neil RL4 - Mobile Direct thermal printing, 4" print width, 203 dpi, 64MB RAM/16MB flash, LCD, linerless, RS-232 Serial, USB and 802.11b interfaces. Includes battery and belt loop. Charger and cables not included.
Endures even the most punishing environments

The Datamax-O-Neil RL4 is built to keep pace in a busy warehouse. Labels print quickly and accurately every time, even in cold environments. Downtime is reduced thanks to a large media roll capacity and a battery that stays charged for a full shift. With uncompromising standards, the RL4 endures even the most punishing environments, and passes the MIL-STD 810F drop testing requirements. The RL4 is so rugged it continues to print after 26 consecutive drops to concrete from 6 ft. (1.8m) even when tested at extreme temperature conditions. The versatile RL4 comes with a wide selection of charging and mounting accessories that allow it to be worn on the hip, mounted in a truck or even mounted and powered from a forklift operating system.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.13"
  • Recommended Use: Label Print
  • Features:
    • Peel Facility
    • Hand Strap
    • Shoulder Strap
  • Barcode Symbology Supported:
    • Code 3 of 9
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • HIBC
    • Plessey
    • MSI
    • UCC 128
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • Telepen
    • UPS Maxi Code
    • FIM
    • USD-8
    • Codabar
    • PDF-417
    • Aztec Code
    • QR Code
    • GS1 DataMatrix
    • TLC 39
    • Micro PDF

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: RL4
  • Product Name: RL4 Label Printer

Physical Characteristics

  • Height: 7.9"
  • Width: 6.5"
  • Depth: 3.2"
  • Form Factor: Portable
  • Weight (Approximate): 2.16 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Media Type:
    • Label
    • Shipping Label
    • Linered Label
    • Linerless
    • Black Mark
    • Gap
    • Fanfold
    • Roll Paper
  • Media Thickness: 6.50 mil
  • Media Sensor:
    • Label Taken Sensor
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 0.75"
  • Maximum Roll Diameter: 2.65"

Fonts & Emulation

  • Language Emulation:
    • DPL
    • ZPL II
    • CPCL
    • IPL
    • XML

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g

Memory

  • Standard Memory: 64 MB
  • Flash Memory: 16 MB

Battery Information

  • Battery Run Time: 16 Hour
  • Battery Chemistry: Lithium Ion (Li-Ion)

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Power Description

  • Power Source: Battery

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model RL4
Max Label Width 4.125
Interface Options Wireless, Serial, USB
Print Speed 4
Print Method Direct Thermal
Print Resolution 203 dpi
Label Core 0.75 inches
Maximum Print Width 4.00
Max Roll Outer Diameter 2.65
Printer Type Mobile
Printer Mobility Mobile


Customer Review Summary


5.0

(based on 1 reviews)

Ratings Distribution

  • 5 Stars



    (1)

  • 4 Stars



    (0)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 1 customers

Sort by

Displaying reviews 1-1

Back to top


5.0

Awesome printer for production facility

By Systems runner

from Michigan

9/16/2014

Verified Buyer

Pros

  • Weather tolerant

Cons

  • Difficult setup

Best Uses

  • Manufacturing
  • Warehousing

Comments about Datamax-O'Neil RL4 RL4-DP-00100210:

Once they are set up they work great and tolerate the cold weather of Michigan. Well worth the time it takes to set them up.
