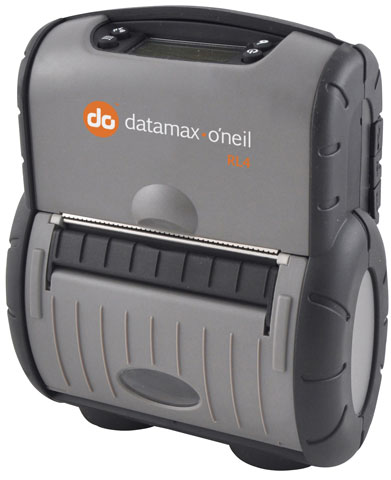

Datamax-O'Neil RL4-DP-00100010 Portable Barcode Printer

Part Number: RL4-DP-00100010
Model: RL4
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Print Resolution
203 dpi

Product Description:

  Datamax-O'Neil RL4 Direct Thermal Printer - Monochrome - Portable - Receipt Print - USB - Serial - Peel Facility - 4.13" Print Width - 4 in/s Mono - 203 dpi - Label, Shipping Label, Linered Label, Linerless, Black Mark, Gap, Fanfold, Roll Paper - 4.12" Label Width
Explore all Datamax-O'Neil RL4 Portable Barcode Printers
Add to Quote
Datamax-O'Neil RL4-DP-00100010 Portable Barcode Printer
Datamax-O'Neil RL4-DP-00100010 Portable Barcode Printer
Datamax-O'Neil RL4-DP-00100010 Portable Barcode Printer
Datamax-O'Neil RL4-DP-00100010 Portable Barcode Printer Datamax-O'Neil RL4-DP-00100010 Portable Barcode Printer

Full specifications (PDF)

Datamax-O'Neil RL4 Portable Barcode Printer Model Overview

The Datamax-O-Neil RL4 is built to keep pace in a busy warehouse. Labels print quickly and accurately every time, even in cold environments. Downtime is reduced thanks to a large media roll capacity and a battery that stays charged for a full shift. With uncompromising standards, the RL4 endures even the most punishing environments, and passes the MIL-STD 810F drop testing requirements. The RL4 is so rugged it continues to print after 26 consecutive drops to concrete from 6ft (1.8m) even when tested at extreme temperature conditions. The versatile RL4 comes with a wide selection of charging and mounting accessories that allow it to be worn on the hip, mounted in a truck or even mounted and powered from a forklift operating system.
Datamax-O'Neil RL4-DP-00100010 Portable Barcode Printer Overview
Rugged, Reliable, WMS-Compatible.

Datamax-O'Neil built its reputation on rugged and reliable portable receipt printers and has now used this expertise to design the industry's most rugged portable label printer. The RL4 is a durable 4-inch (102mm) direct thermal printer with a rugged design and reliable performance that will continue to operate long after other printers have failed. We're so confident in the quality and long term reliability of this rugged printer that we include a 2-year warranty free of change. That's double what the competition offers.
Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
4.13"
Barcode Symbology Supported:
  • Code 3 of 9
  • Code 93
  • Code 128
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • HIBC
  • Plessey
  • MSI
  • UCC 128
  • EAN 128
  • UPC-A
  • UPC-E
  • UPC 2 and 5 Digit Addendums
  • POSTNET
  • Telepen
  • UPS Maxi Code
  • FIM
  • USD-8
  • Codabar
  • PDF-417
  • Aztec Code
  • QR Code
  • GS1 DataMatrix
  • TLC 39
  • Micro PDF
Peel Facility:
Yes
Features:
  • Hand Strap
  • Shoulder Strap
Memory
Standard Memory:
64 MB
Flash Memory:
16 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Shipping Label
  • Linered Label
  • Linerless
  • Black Mark
  • Gap
  • Fanfold
  • Roll Paper
Media Sensor:
  • Label Taken Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.65"
Maximum Label Width:
4.12"
Label Core Size:
0.75"
Fonts & Emulation
Language Emulation:
  • DPL
  • ZPL II
  • CPCL
  • IPL
  • XML
Power Description
Power Source:
Battery
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Run Time:
16 Hour
Physical Characteristics
Form Factor:
Portable
Height:
7.9"
Width:
6.5"
Depth:
3.2"
Weight (Approximate):
2.16 lb
Miscellaneous
Platform Supported:
PC
Item Numbers
UNSPSC: 45101512
