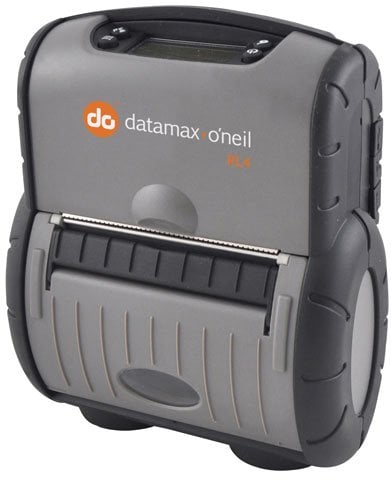

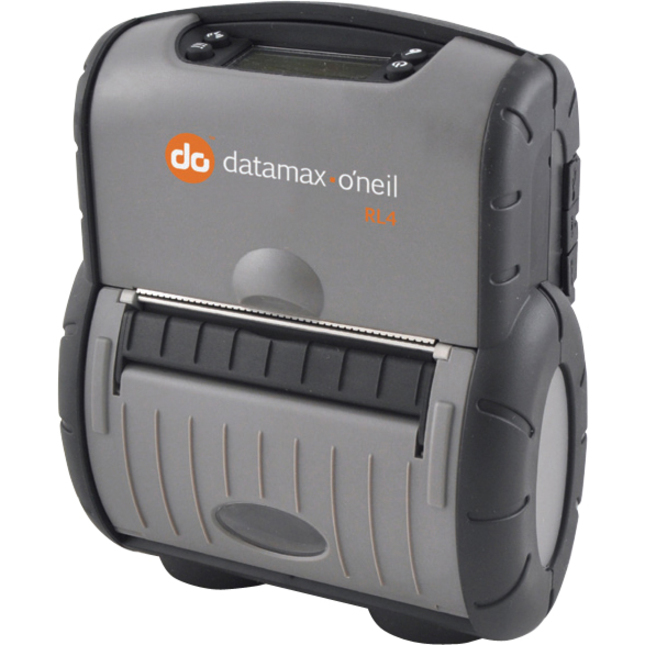

Datamax-O'Neil RL4-DP-00000210 Portable Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax-O'Neil RL4 - Mobile printer, Print Method: Direct thermal, 4" print width, 203 dpi, 64MB RAM/16MB flash, LCD, RS-232 Serial, USB and 802.11b interfaces. Includes battery and belt loop. Charger and cables not included.
Endures even the most punishing environments

The Datamax-O-Neil RL4 is built to keep pace in a busy warehouse. Labels print quickly and accurately every time, even in cold environments. Downtime is reduced thanks to a large media roll capacity and a battery that stays charged for a full shift. With uncompromising standards, the RL4 endures even the most punishing environments, and passes the MIL-STD 810F drop testing requirements. The RL4 is so rugged it continues to print after 26 consecutive drops to concrete from 6 ft. (1.8m) even when tested at extreme temperature conditions. The versatile RL4 comes with a wide selection of charging and mounting accessories that allow it to be worn on the hip, mounted in a truck or even mounted and powered from a forklift operating system.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.13"
  • Recommended Use: Label Print
  • Features:
    • Peel Facility
    • Hand Strap
    • Shoulder Strap
  • Barcode Symbology Supported:
    • Code 3 of 9
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • HIBC
    • Plessey
    • MSI
    • UCC 128
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • Telepen
    • UPS Maxi Code
    • FIM
    • USD-8
    • Codabar
    • PDF-417
    • Aztec Code
    • QR Code
    • GS1 DataMatrix
    • TLC 39
    • Micro PDF

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: RL4
  • Product Name: RL4 Label Printer

Physical Characteristics

  • Height: 7.9"
  • Width: 6.5"
  • Depth: 3.2"
  • Form Factor: Portable
  • Weight (Approximate): 2.16 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Media Type:
    • Label
    • Shipping Label
    • Linered Label
    • Black Mark
    • Gap
    • Fanfold
    • Roll Paper
  • Media Thickness: 6.50 mil
  • Media Sensor:
    • Label Taken Sensor
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 0.75"
  • Maximum Roll Diameter: 2.65"

Fonts & Emulation

  • Language Emulation:
    • DPL
    • ZPL II
    • CPCL
    • IPL
    • XML

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g

Memory

  • Standard Memory: 64 MB
  • Flash Memory: 16 MB

Battery Information

  • Battery Run Time: 16 Hour
  • Battery Chemistry: Lithium Ion (Li-Ion)

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Power Description

  • Power Source: Battery

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model RL4
Print Resolution 203 dpi
Maximum Print Width 4.00
Label Core 0.75 inches
Print Speed 4
Print Method Direct Thermal
Interface Options Wireless, Serial, USB
Max Label Width 4.125
Max Roll Outer Diameter 2.65
Printer Type Mobile
Printer Mobility Mobile
