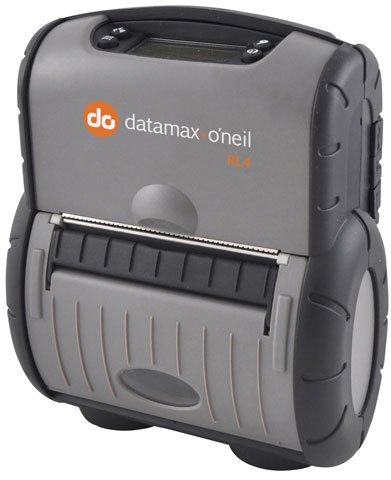

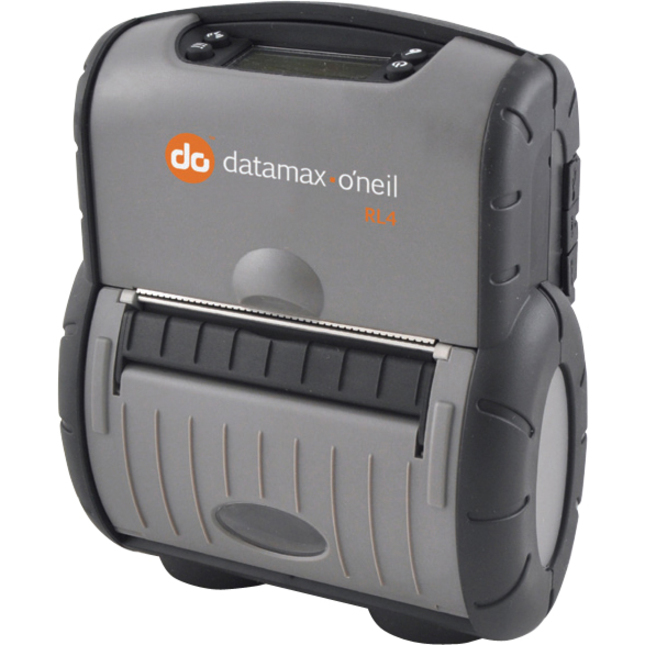

Datamax-O'Neil RL4-DP-00000110 Portable Barcode Printer
Datamax-O'Neil RL4 -
Mobile Direct thermal printing, 4" print width, 203 dpi, 64MB RAM/16MB flash, LCD, RS-232 Serial, USB and Bluetooth interfaces. Includes battery and belt loop. Charger and cables not included.
Share:
Endures even the most punishing environments
The Datamax-O-Neil RL4 is built to keep pace in a busy warehouse. Labels print quickly and accurately every time, even in cold environments. Downtime is reduced thanks to a large media roll capacity and a battery that stays charged for a full shift. With uncompromising standards, the RL4 endures even the most punishing environments, and passes the MIL-STD 810F drop testing requirements. The RL4 is so rugged it continues to print after 26 consecutive drops to concrete from 6 ft. (1.8m) even when tested at extreme temperature conditions. The versatile RL4 comes with a wide selection of charging and mounting accessories that allow it to be worn on the hip, mounted in a truck or even mounted and powered from a forklift operating system.
Technical Information
- Maximum Mono Print Speed: 4 in/s
- Peel Facility: Yes
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.13"
- Recommended Use: Label Print
- Features:
- Peel Facility
- Hand Strap
- Shoulder Strap
- Barcode Symbology Supported:
- Code 3 of 9
- Code 93
- Code 128
- EAN-8
- EAN-13
- Interleaved 2 of 5
- HIBC
- Plessey
- MSI
- UCC 128
- EAN 128
- UPC-A
- UPC-E
- UPC 2 and 5 Digit Addendums
- POSTNET
- Telepen
- UPS Maxi Code
- FIM
- USD-8
- Codabar
- PDF-417
- Aztec Code
- QR Code
- GS1 DataMatrix
- TLC 39
- Micro PDF
General Information
- Product Type: Direct Thermal Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: RL4
- Product Name: RL4 Label Printer
Physical Characteristics
- Height: 7.9"
- Width: 6.5"
- Depth: 3.2"
- Form Factor: Portable
- Weight (Approximate): 2.16 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Media Types & Handling
- Maximum Label Width: 4.12"
- Media Type:
- Label
- Shipping Label
- Linered Label
- Black Mark
- Gap
- Fanfold
- Roll Paper
- Media Thickness: 6.50 mil
- Media Sensor:
- Label Taken Sensor
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Core Size: 0.75"
- Maximum Roll Diameter: 2.65"
Fonts & Emulation
- Language Emulation:
- DPL
- ZPL II
- CPCL
- IPL
- XML
Memory
- Standard Memory: 64 MB
- Flash Memory: 16 MB
Battery Information
- Battery Run Time: 16 Hour
- Battery Chemistry: Lithium Ion (Li-Ion)
Network & Communication
- Bluetooth: Yes
Display & Graphics
- Display Screen Type: LCD
Other
- Platform Supported: PC
Power Description
- Power Source: Battery
Full specifications (PDF)| Brand | Datamax-O'Neil |
| Model | RL4 |
| Maximum Print Width | 4.00 |
| Print Speed | 4 |
| Interface Options | Serial, USB, Bluetooth |
| Max Label Width | 4.125 |
| Label Core | 0.75 inches |
| Max Roll Outer Diameter | 2.65 |
| Print Resolution | 203 dpi |
| Print Method | Direct Thermal |
| Printer Type | Mobile |
| Printer Mobility | Mobile |
