Datamax-O'Neil R46-00-38000Y07 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

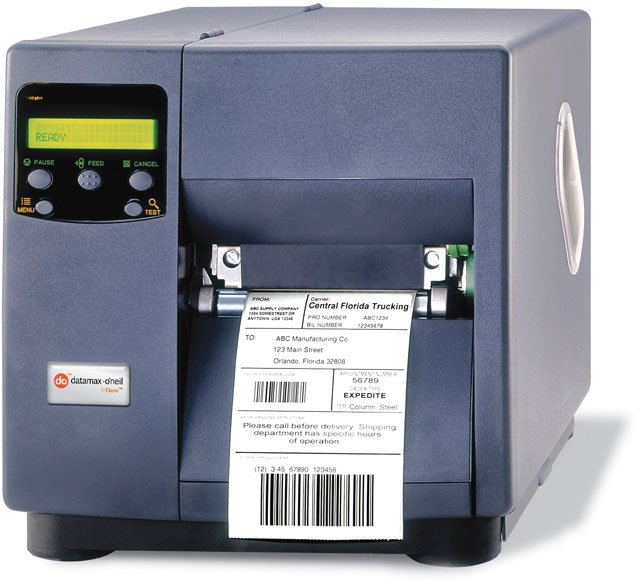

Datamax-O'Neil I-4604 - Thermal transfer Printer (600 dpi, 4.1 inch Print width, 4 ips, Serial, Parallel and Ethernet Interfaces with Coated Side Out)
For applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes

The I-4604 printer is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes. With a 600 dpi (24 dots/mm) printhead and the ability to accurately maintain print registration, the I-4604 produces small labels for applications such as tracking small parts with high resolution barcode labels, printing high quality graphics for identifying wiring harnesses, cosmetic labels or adding an intricate Datamatrix, Aztec, or PDF417 barcode label to a package. When it comes to reliability, ease of use, maintenance, and high performance, there is just one choice - the I-4604. It's the industry's answer to your high performance, high-resolution printing needs. All units ship with product documentation.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 600 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4604
  • Product Name: I-4604 Network Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Paper
    • Continuous Form
    • Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Additional Information:
    • Graphics Supported : .PCX, .BMP and .IMG files
    • Reverse Fields / Mirror Image : Any font or graphic field can be printed as a normal or reverse image

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4604
Printer Type Industrial
Print Speed 4
Max Roll Outer Diameter 8
Maximum Print Width 4.16
Print Resolution 609 dpi
Max Label Width 4.65
Interface Options Serial, Parallel, Ethernet
Label Core 1.5 inches
Print Method Thermal Transfer
Printer Mobility Not Mobile
Ribbon Core 1
