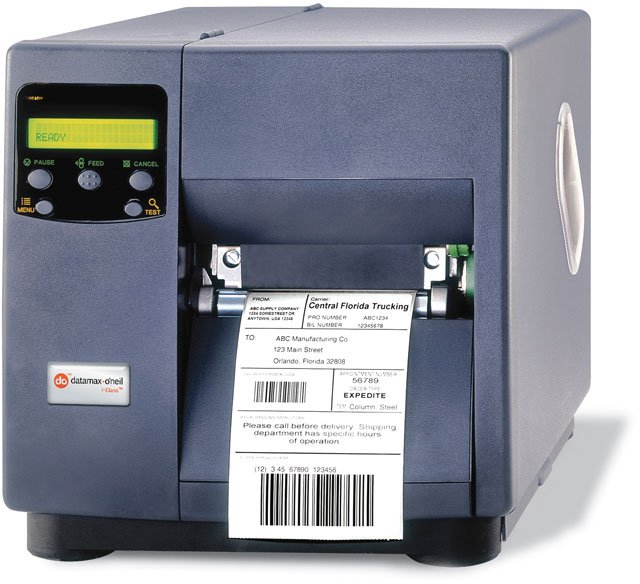

Datamax-O'Neil R46-00-18000007 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax-O'Neil I-4604 - Thermal transfer, 600 dpi, 6 ips, 4.16" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash, Coated side in. Includes US power cord. Order cables separately. See accessories.
For applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes

The I-4604 printer is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes. With a 600 dpi (24 dots/mm) printhead and the ability to accurately maintain print registration, the I-4604 produces small labels for applications such as tracking small parts with high resolution barcode labels, printing high quality graphics for identifying wiring harnesses, cosmetic labels or adding an intricate Datamatrix, Aztec, or PDF417 barcode label to a package. When it comes to reliability, ease of use, maintenance, and high performance, there is just one choice - the I-4604. It's the industry's answer to your high performance, high-resolution printing needs. All units ship with product documentation.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 600 dpi
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4604
  • Product Name: I-4604 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
    • Plain Paper
    • Tag Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emissions Standard:
    • CE
    • FCC Class A
  • Additional Information:
    • Character Set: Modified IBM Code Page 850
    • Graphics Support: .PCX, .BMP and .IMG files
    • Rotation: Fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
    • Media Sensor: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Fonts & Emulation

  • Language Emulation: DPL

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4604
Interface Options Serial, Parallel
Print Method Thermal Transfer
Label Core 1.5 inches
Print Resolution 609 dpi
Printer Type Industrial
Print Speed 4
Max Roll Outer Diameter 8
Maximum Print Width 4.16
Max Label Width 4.65
Printer Mobility Not Mobile
Ribbon Core 1
