Datamax-O'Neil R44-00-18000007 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

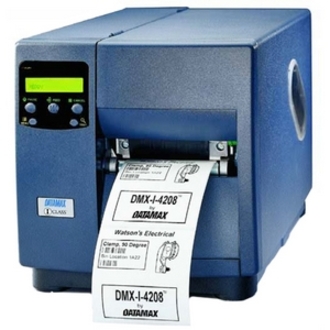

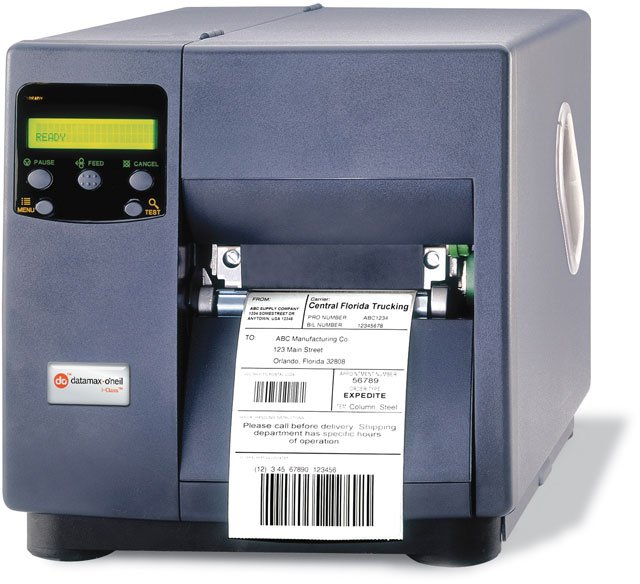

Datamax-O'Neil I-4406 - Thermal transfer, 406 dpi, 6 ips, 4.1" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.
For applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes

The I-4406 printer is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes. With a 406 dpi (16 dots/mm) printhead, and the ability to accurately maintain print registration, the I-4406 produces small labels for applications such as tracking small parts with high resolution barcode labels, printing high quality graphics for identifying wiring harnesses, cosmetic labels or adding an intricate Datamatrix, Aztec, or PDF417 barcode label to a package. When it comes to reliability, ease of use, maintenance, and high performance, there is just one choice - the I-4406. It's the industry's answer to your high performance, high-resolution printing needs. All units ship with product documentation

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 406 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.1"
  • Maximum Label Width: 4.65"
  • Media Sensor:
    • Reflective
    • See Through
  • Printer Language: DPL
  • Input Voltage: 110 V AC - Auto-switching
  • Input Voltage Range: 90 to 132 V AC
  • RAM Memory: 16MB
  • Flash Memory: 2MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 12.7" (322.58mm) x 12.62" (320.55mm) x 18.6" (472mm)
    • 12.7" (322.58mm) x 12.62" (320.55mm) x x 18.6" (472mm)
  • Weight: 20.5 kg (45.19 lb)

Agency Approvals

  • Agency Approvals:
    • UL
    • Canadian
    • European
    • CE
    • FCC Class A

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"

Environmental Conditions

  • Temperature: 32°F (0°C) to 100°F (38°C) Operating

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4406
Interface Options Parallel, Serial
Print Method Thermal Transfer
Printer Type Industrial
Print Speed 6
Print Resolution 406 dpi
Maximum Print Width 4.10
Max Roll Outer Diameter 8
Max Label Width 4.65
Printer Mobility Not Mobile
Ribbon Core 1
Label Core 1.5
