Datamax-O'Neil R42-00-18900U07 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

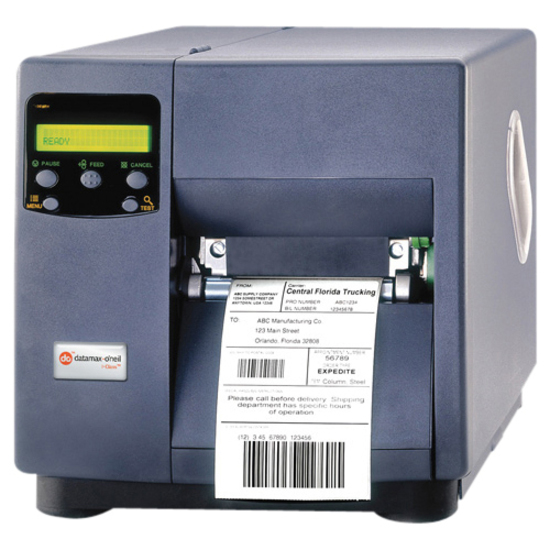

Datamax-O'Neil I-4208 - 4"Thermal transfer, peel and present, rewind, 203 dpi, USB, US power
Superior price and value make the I-4208 the premier 4" printer in the world.

The I-4208 printer is available in either direct thermal and thermal transfer configurations, The I-4208 is capable of producing a 203 dpi, four-inch wide image at 8 ips, and supports all popular linear and two-dimensional barcode symbologies. Built to meet the toughest printing requirements, the I-4208 incorporates many standard features normally found as options on competitive products. All units ship with product documentation.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features:
    • Rewind
    • Media Supply Hub
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 3 of 9
    • Code 128
    • UPC-A
    • UPC-E
    • Code 11
    • Code 93
    • Interleaved 2 of 5
    • HIBC
    • Standard 2 of 5
    • EAN-8
    • EAN-13
    • Industrial 2 of 5
    • Codabar
    • Plessey
    • UCC/EAN 128
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4208
  • Product Name: I-Class I-4208 Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"
  • Form Factor: Desktop
  • Weight (Approximate): 45.19 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Ticket Stock
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Roll Fed
    • Perforated Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 220 V AC
    • 110 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLZ
    • PLI

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 1 MB

Other

  • Country of Origin: United States
  • Platform Supported: PC

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4208
Print Speed 8
Max Roll Outer Diameter 8
Maximum Print Width 4.10
Max Label Width 4.65
Print Method Thermal Transfer
Interface Options USB
Printer Type Industrial
Print Resolution 203 dpi
Label Core 1.5 inches
Printer Mobility Not Mobile
Ribbon Core 1
