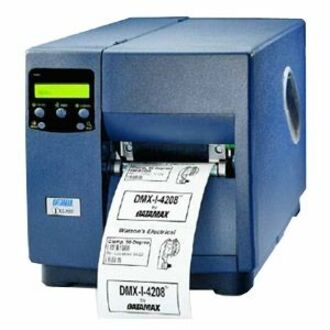

Datamax-O'Neil R42-00-18000U07 Barcode Printer

Datamax-O'Neil I-4208 - Thermal transfer, 203 dpi, 4 inch print width, 8 ips print speed, Serial, Parallel and USB interfaces
Superior price and value make the I-4208 the premier 4" printer in the world.

The I-4208 printer is available in either direct thermal and thermal transfer configurations, The I-4208 is capable of producing a 203 dpi, four-inch wide image at 8 ips, and supports all popular linear and two-dimensional barcode symbologies. Built to meet the toughest printing requirements, the I-4208 incorporates many standard features normally found as options on competitive products. All units ship with product documentation.

Technical Information

  • Maximum Mono Print Speed: 8 in/s 8 lps
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4208
  • Product Name: I-4208 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Other

  • Platform Supported: PC
  • Package Contents:
    • I-4208 Label Printer
    • Accessories CD
    • I-4208 Label Printer
    • Accessories CD
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emission Standards:
    • FCC Class A
    • CE Mark
  • Additional Information:
    • Character Set: Modified IBM Code Page 850
    • Graphics Support: .PCX, .BMP and .IMG files
    • Rotation: Fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
    • Media Sensor: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
    • Plain Paper
    • Tag Stock
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 1 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4208
Print Resolution 203 dpi
Label Core 1.5 inches
Maximum Print Width 4.10
Interface Options Parallel, USB, Serial
Printer Type Industrial
Max Label Width 4.65
Max Roll Outer Diameter 8
Print Method Thermal Transfer
Print Speed 8
Labels Per Day 5,001 - 10,000
Printer Mobility Not Mobile
Ribbon Core 1

Recommended Accessories for Model: Datamax-O'Neil I-4208 Printer
Datamax-O'Neil DMXREW1 (DPO78-2394-01)
The DMX-REW1 is a low-cost universal label rewinder/unwinder supporting labels up to 5 inches wide at speeds of up to 15 ips (ips). Any rewind core from 1 inch to 4 inches in diameter can be used. Label rolls up to 8 inches in diameter can be accommodated.
In Stock: Ships Same Day
$470.40
+ Add to Quote
Datamax-O'Neil I-Class Printer Accessories (DPR78-2773-01)
Stepper Motor (for I-Class)
Ships in 3-5 Days
$85.00
+ Add to Quote
Datamax-O'Neil (OPT78-2302-01)
I-MARK II, INSTALLABLE OPTION, INTERNAL REWIND
In Stock: Ships Same Day
$222.20
+ Add to Quote
Datamax-O'Neil (DPR78-2902-01)
Kit, Display Board and Bezel I-Class Mark II
In Stock: Ships Same Day
$166.70
+ Add to Quote
Datamax-O'Neil (DPR51-2308-00)
Power supply (Autoranging) for the I-Class Printers
In Stock: Ships Same Day
$607.10
+ Add to Quote
Recommended Labels for Model: Datamax-O'Neil I-4208 Printer
Datamax-O'Neil Electronic Component Labeling (ECL1753-10)
2.0" x .25" Thermal transfer synthetic electronics component label. 1 across. 10000 labels/roll, single roll.
Ships in 3-5 Days
$161.70
+ Add to Quote
Datamax-O'Neil Duratran II (420970)
4" x 6" Thermal transfer paper label. 1,000 labels/roll, 4 roll case. Also available as a roll (Part# 420970-R).
In Stock: Ships Same Day
$69.50
+ Add to Quote
Datamax-O'Neil Label (ECL0653-10)
1" x .5" Thermal transfer synthetic electronics component label. 10000 labels/case.
In Stock: Ships Same Day
$140.70
+ Add to Quote
Datamax-O'Neil Label (301970)
4" x 6" Direct thermal paper label. 1000 labels/roll, 4 roll case. Also available as a roll (Part# 301970-R).
In Stock: Ships Same Day
$129.50
+ Add to Quote
Datamax-O'Neil Duratran II (421907)
4" x 6" Thermal transfer kim-syn paper label. 1,000 labels/roll, 4 roll case.
In Stock: Ships Same Day
$303.70
+ Add to Quote
Recommended Ribbons for Model: Datamax-O'Neil I-4208 Printer
Datamax-O'Neil GPR Plus Premium Wax (222116)
4" x 1182' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 24, Core Size: 1", Available as a single roll (222116-R)
In Stock: Ships Same Day
$343.20
+ Add to Quote
Datamax-O'Neil SDR-A Resin (221917)
4.33" x 1182' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, rolls/case: 12, Core Size: 1", Available as a single roll (221917-R)
In Stock: Ships Same Day
$533.30
+ Add to Quote
Datamax-O'Neil PGR Plus Premium Wax-Resin (295906)
4" x 1182' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 24, Core Size: 1", Available as a single roll (295906-R)
In Stock: Ships Same Day
$892.80
+ Add to Quote
Datamax-O'Neil SDR Millennium Resin (221942)
4.25" x 1182' Black Resin Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with polyester labels. Also available as a single roll (Part# 221942-R).
In Stock: Ships Same Day
$963.80
+ Add to Quote
Datamax-O'Neil PGR Plus Premium Wax-Resin (295909)
4.25" x 1182' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 24, Core Size: 1", Available as a single roll (295909-R)
Ships in 3-5 Days
$949.00
+ Add to Quote
Recommended Printheads for Model: Datamax-O'Neil I-4208 Printer
Protect Your Product
Datamax-O'Neil Service Contract - 3 year (R42-WS-W3P0E0C3)
Extended Comprehensive Warranty for I-4208
Ships in 3-5 Days
$465.00
+ Add to Quote

The Datamax-O'Neil R42-00-18000U07 is also known as DMX-I4208U or R420018000U07 .
