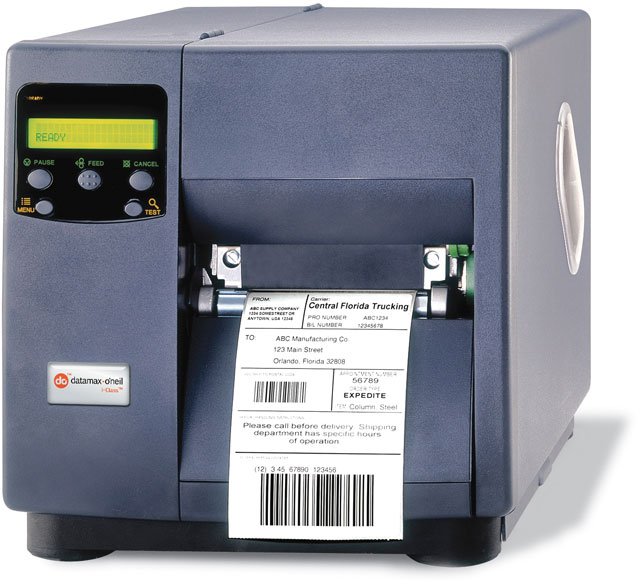

Datamax-O'Neil R42-00-08900007 Barcode Printer

Datamax-O'Neil I-4208 - Direct thermal only, 203 dpi, 8 ips, 4" print width, parallel & serial interfaces, 8MB DRAM, 1MB flash. Includes rewinder, peel-presenter & US power cord. Order cables separately. See accessories.
Superior price and value make the I-4208 the premier 4" printer in the world.

The I-4208 printer is available in either direct thermal and thermal transfer configurations, The I-4208 is capable of producing a 203 dpi, four-inch wide image at 8 ips, and supports all popular linear and two-dimensional barcode symbologies. Built to meet the toughest printing requirements, the I-4208 incorporates many standard features normally found as options on competitive products. All units ship with product documentation.

Technical Information

  • Maximum Mono Print Speed: 8 in/s 8 lps
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4"
  • Recommended Use: Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4208
  • Product Name: I-4208 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian Standard
    • European Standard
    • Emissions Standard:
    • FCC Class A
    • CE Mark
  • Additional Information:
    • Character Set: Modified IBM Code Page 850
    • Graphics Support: .PCX, .BMP and .IMG files
    • Rotation: Fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
    • Media Sensor: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 1 MB

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4208
Print Method Direct Thermal
Printer Type Industrial
Max Roll Outer Diameter 8
Maximum Print Width 4.10
Print Resolution 203 dpi
Label Core 1.5 inches
Interface Options Serial, Parallel
Print Speed 8
Max Label Width 4.65
Printer Mobility Not Mobile
Ribbon Core 1
