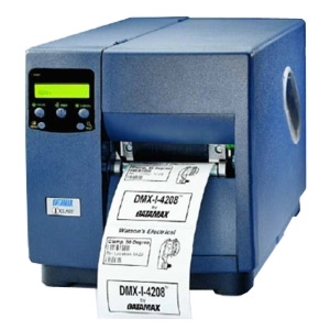

Datamax-O'Neil I-4208 – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: R42-00-08000Y07
Model: I-4208

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Direct Thermal
Interface Options
Ethernet, Parallel, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Direct thermal only, 203 dpi, 8 ips, 4.1" print width, parallel, serial & ethernet interfaces, 8MB DRAM, 1MB flash. Includes US power cord. Order cables separately. See accessories.

Datamax-O'Neil I-4208 Barcode Label Printer Model Overview

The I-4208 printer is available in either direct thermal and thermal transfer configurations, The I-4208 is capable of producing a 203-dpi, four-inch wide image at 8 inches per second, and supports all popular linear and two-dimensional barcode symbologies. Built to meet the toughest printing requirements, the I-4208 incorporates many standard features normally found as options on competitive products. All units ship with product documentation.
Datamax-O'Neil R42-00-08000Y07 Barcode Label Printer Overview

It's all about value, performance and speed! From desktop to industrial settings, the DMX-I-4208 offers excellent design characteristics, engineering superiority and unprecedented performance capabilities to meet your printing demands. Built to meet the toughest printing requirements, the DMX-I-4208 incorporates many standard features normally found as options on competitive products.

The DMX-I-4208 features a modular design that enables the operator to add or change an option at any time. The printer can easily be upgraded and reconfigured to meet future opportunities or growing applications. Engineered for quality, the foundation of the printer is a precision-crafted die-cast aluminum frame. This durable, yet lightweight, design increases the printer's longevity and reliability. More ease-of-use features are standard throughout the I-4208 than any other printer in its class including an easy-to-read front LCD display, color-coded operator cues, embossed media loading diagrams, wide access to the printhead, plus a unique collapsible ribbon hub that makes loading and unloading a breeze.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s 8 lps
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
1 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
12.7"
Width:
12.6"
Depth:
18.6"
Miscellaneous
Additional Information:
  • Graphics Supported: .PCX, .BMP and .IMG files
  • Reverse Fields/Mirror Image: Any font or graphic field can be printed as a normal or reverse image
  • Media Sensing: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.
Platform Supported:
PC
Certifications & Standards:

Safety Standards:

  • UL
  • Canadian
  • European

Emissions Standards

  • FCC Class A
  • CE Mark
Item Numbers
GTIN: 0853585494630
UPC: 853585494630
EAN: 0853585494630
UNSPSC: 43212108
