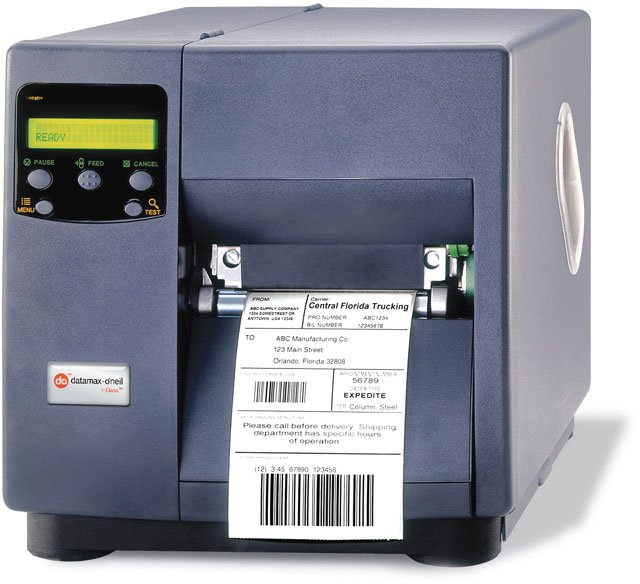

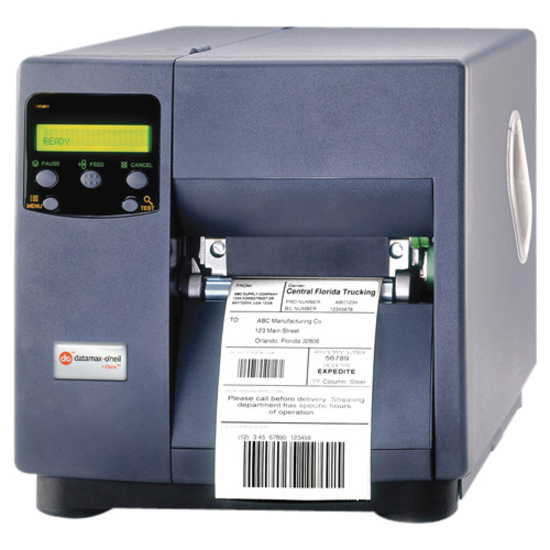

Datamax-O'Neil I-4308 – Barcode Label Printer – 305 dpi – Direct Thermal

Part Number: R23-88-08000Y07
Model: I-4308
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Industrial
Printing Technology
Direct Thermal
Print Resolution
305 dpi
Max Print Width
4.75 inch

Product Description:

  I-4308 Direct Thermal Printer (300 dpi, 4.1 Inch Print Width, 8 Inches Per Second, MINTEK and LAN)
Explore all Datamax-O'Neil I-4308 Barcode Label Printers
Add to Quote
Datamax-O'Neil R23-88-08000Y07 Barcode Label Printer
Datamax-O'Neil R23-88-08000Y07 Barcode Label Printer
Datamax-O'Neil R23-88-08000Y07 Barcode Label Printer Datamax-O'Neil R23-88-08000Y07 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil I-4308 Barcode Label Printer Model Overview

The I-4308 printer is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution barcode labels, printing high quality graphics for identifying wiring harnesses, or adding an intricate Datamatrix or PDF417 barcode label to a package. All units ship with product documentation.
Datamax-O'Neil R23-88-08000Y07 Barcode Label Printer Overview

Award winning I-Class is a comprehensive, cost-effective industrial printer, offering reliability and flexibility. With its revolutionary modular design, most I-Class options are field installable. I-Class printers are ideal for Shipping & Receiving, Product Identification, Pharmacy labeling, and Asset Tracking.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • HIBC
  • Codabar
  • Plessey
  • POSTNET
  • UPC 2 and 5 Digit Addendums
  • UCC/EAN 128
  • Telepen
  • FIM
  • Planet Code
  • USPS-4 State
  • Maxi Code
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Codablock
  • Code 16K
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • GS1 DataBar
Application/Usage:
Desktop
Print Technology:
Direct Thermal
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Continuous Tag
  • Perforated Label
  • Ticket Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
  • PLZ
  • PLI
  • PLB
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.7"
Width:
12.6"
Depth:
18.6"
Weight (Approximate):
45 lb
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
