Datamax-O'Neil R23-00-18900007 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

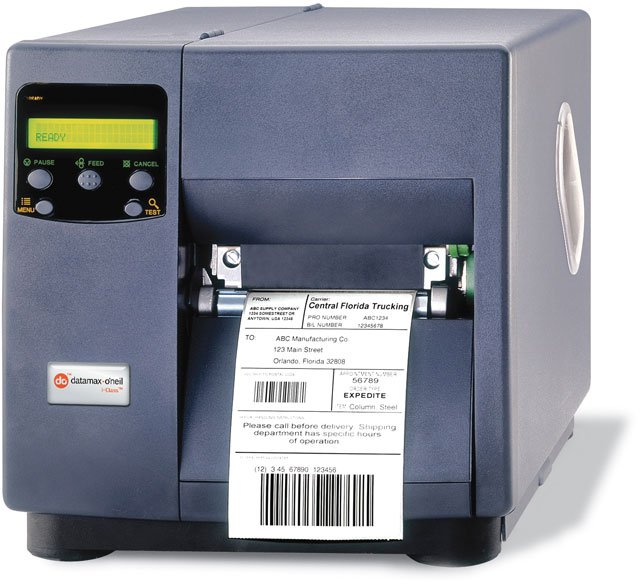

Datamax-O'Neil I-4308 - I4308, Thermal transfer, 300 DPI, 4", PEEL/PRES/REW, 8 ips, US POWER
High performance, high resolution, thermal printer for accurately printing small labels and high quality graphics.

The I-4308 printer is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution barcode labels, printing high quality graphics for identifying wiring harnesses, or adding an intricate Datamatrix or PDF417 barcode label to a package. All units ship with product documentation.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features:
    • Rewinder
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4308
  • Product Name: I-4308 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • UL, Canadian, and European safety standards
    • FCC Class A emissions standard
    • CE Mark
  • Additional Information:
    • Graphics Supported: .PCX, .BMP and .IMG files
    • Reverse Fields/ Mirror Image: Any font or graphic field can be printed as a normal or reverse image
    • Media Sensing: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4308
Print Speed 8
Max Roll Outer Diameter 8
Maximum Print Width 4.16
Label Core 1.5 inches
Print Resolution 305 dpi
Print Method Thermal Transfer
Max Label Width 4.65
Printer Type Industrial
Printer Mobility Not Mobile
Ribbon Core 1
