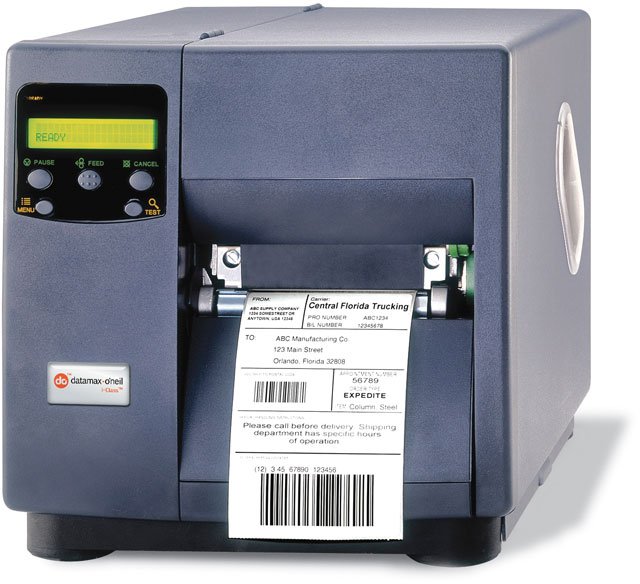

Datamax-O'Neil I-4308 – Barcode Label Printer – 305 dpi – Thermal Transfer – Cutter

Part Number: R23-00-18040007
Model: I-4308
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
305 dpi

Product Description:

  Thermal transfer & direct thermal, 305 dpi, 8 ips, 4.16" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes cutter & US power cord. Order cables separately. See accessories.
Explore all Datamax-O'Neil I-4308 Barcode Label Printers
Add to Quote
Datamax-O'Neil R23-00-18040007 Barcode Label Printer
Datamax-O'Neil R23-00-18040007 Barcode Label Printer
Datamax-O'Neil R23-00-18040007 Barcode Label Printer Datamax-O'Neil R23-00-18040007 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil I-4308 Barcode Label Printer Model Overview

The I-4308 printer is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution barcode labels, printing high quality graphics for identifying wiring harnesses, or adding an intricate Datamatrix or PDF417 barcode label to a package. All units ship with product documentation.
Datamax-O'Neil R23-00-18040007 Barcode Label Printer Overview

The I-4308 Label Printer is ideal for a wide array of mission critical bar code labeling applications found in industries such as manufacturing, warehousing, and shipping. In fact, where intricate two-dimensional bar coding is required for compliance labeling, small parts tracking, or product identification.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
2 MB
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Maximum Label Length:
99"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.7"
Width:
12.6"
Depth:
18.6"
Miscellaneous
Package Contents:
  • I-4308 Label Printer
  • Accessories CD
Additional Information:
  • Character Set: Modified IBM Code Page 850
  • Graphics Support: .PCX, .BMP and .IMG files
  • Rotation: Fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
  • Media Sensor: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.
Platform Supported:
PC
Certifications & Standards:

Safety Standards:

  • UL
  • Canadian
  • European

Emission Standards:

  • FCC Class A
  • CE
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43212108
