Datamax-O'Neil R23-00-18000007 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

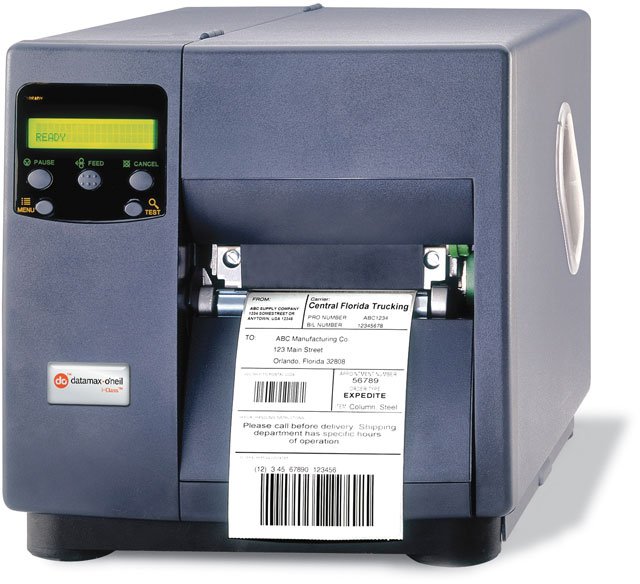

Datamax-O'Neil I-4308 - Thermal transfer, 305 dpi, 8 ips, 4.16" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.
High performance, high resolution, thermal printer for accurately printing small labels and high quality graphics.

The I-4308 printer is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution barcode labels, printing high quality graphics for identifying wiring harnesses, or adding an intricate Datamatrix or PDF417 barcode label to a package. All units ship with product documentation.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4308
  • Product Name: I-4308 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emissions Standards:
    • FCC Class A
    • CE Mark
  • Additional Information:
    • Graphics Supported: .PCX, .BMP and .IMG files
    • Reverse Fields/ Mirror Image: Any font or graphic field can be printed as a normal or reverse image
    • Media Sensing: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4308
Interface Options Parallel, Serial
Print Resolution 305 dpi
Printer Type Industrial
Print Speed 8
Print Method Thermal Transfer
Label Core 1.5 inches
Max Roll Outer Diameter 8
Maximum Print Width 4.16
Max Label Width 4.65
Printer Mobility Not Mobile
Ribbon Core 1
