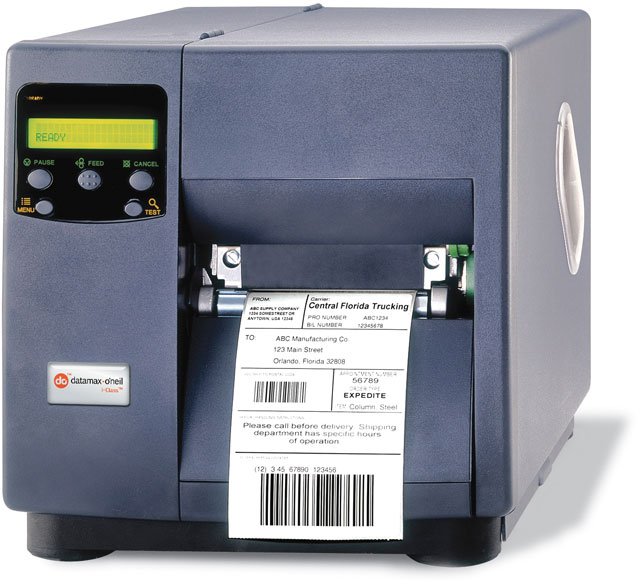

Datamax-O'Neil I-4308 – Barcode Label Printer – 305 dpi – Thermal Transfer

Part Number: R23-00-13000007
Model: I-4308
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
305 dpi

Product Description:

  Direct Thermal-Thermal Transfer Printer (300 dpi, 4.1 Inch Print Width, 8 Inches Per Second, Serial and Parallel Interfaces, 220V Euro Plug)
Explore all Datamax-O'Neil I-4308 Barcode Label Printers
Add to Quote
Datamax-O'Neil R23-00-13000007 Barcode Label Printer
Datamax-O'Neil R23-00-13000007 Barcode Label Printer
Datamax-O'Neil R23-00-13000007 Barcode Label Printer Datamax-O'Neil R23-00-13000007 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil I-4308 Barcode Label Printer Model Overview

The I-4308 printer is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution barcode labels, printing high quality graphics for identifying wiring harnesses, or adding an intricate Datamatrix or PDF417 barcode label to a package. All units ship with product documentation.
Datamax-O'Neil R23-00-13000007 Barcode Label Printer Overview

Award winning I-Class is a comprehensive, cost-effective industrial printer, offering reliability and flexibility. With its revolutionary modular design, most I-Class options are field installable. I-Class printers are ideal for Shipping & Receiving, Product Identification, Pharmacy labeling, and Asset Tracking.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • Planet Code
  • FIM
  • USPS-4 State
  • Maxi Code
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Codablock
  • Code 16K
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • GS1 DataBar
Application/Usage:
Desktop
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • PLZ
  • PLI
  • PLB
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.7"
Width:
12.6"
Depth:
18.6"
Weight (Approximate):
45 lb
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (3)
  • Power Device (2)
  • Printer Accessories (98)

Recommended Accessories for Model: Datamax-O'Neil R23-00-13000007 Barcode Label Printer

Top Cables, Connectors, and Adapters Purchased With Datamax-O'Neil R23-00-13000007

Top Power Device Purchased With Datamax-O'Neil R23-00-13000007

Top Printer Accessories Purchased With Datamax-O'Neil R23-00-13000007

See All Printer Accessories for Datamax-O'Neil R23-00-13000007 Barcode Label Printer >
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Datamax-O'Neil R23-00-13000007 Barcode Label Printer is also known as DMX-I4308DTTEURO
